cutting wheels for glass

High Quality Cutting Wheels

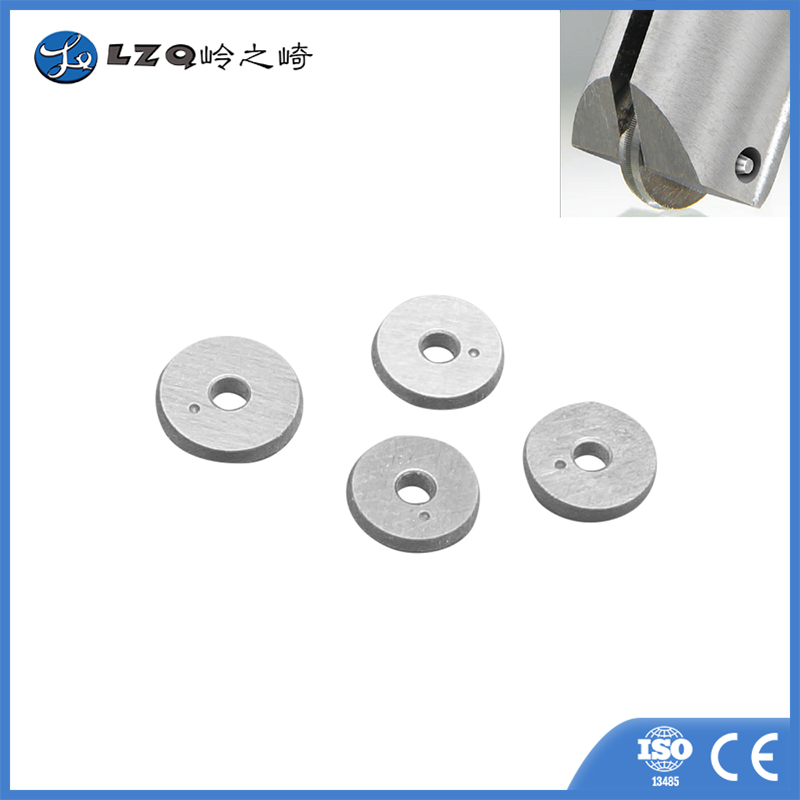

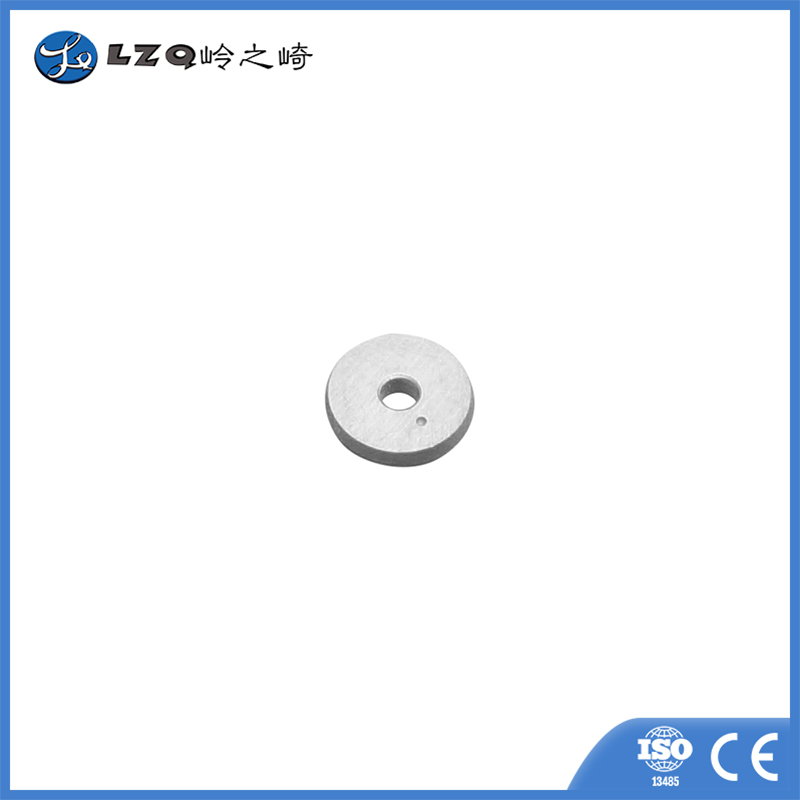

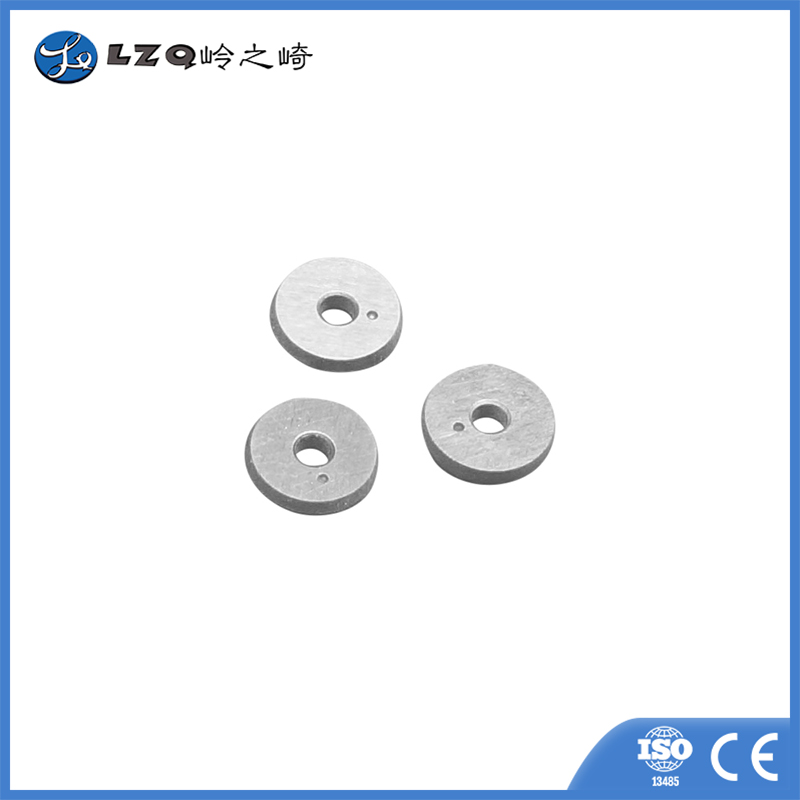

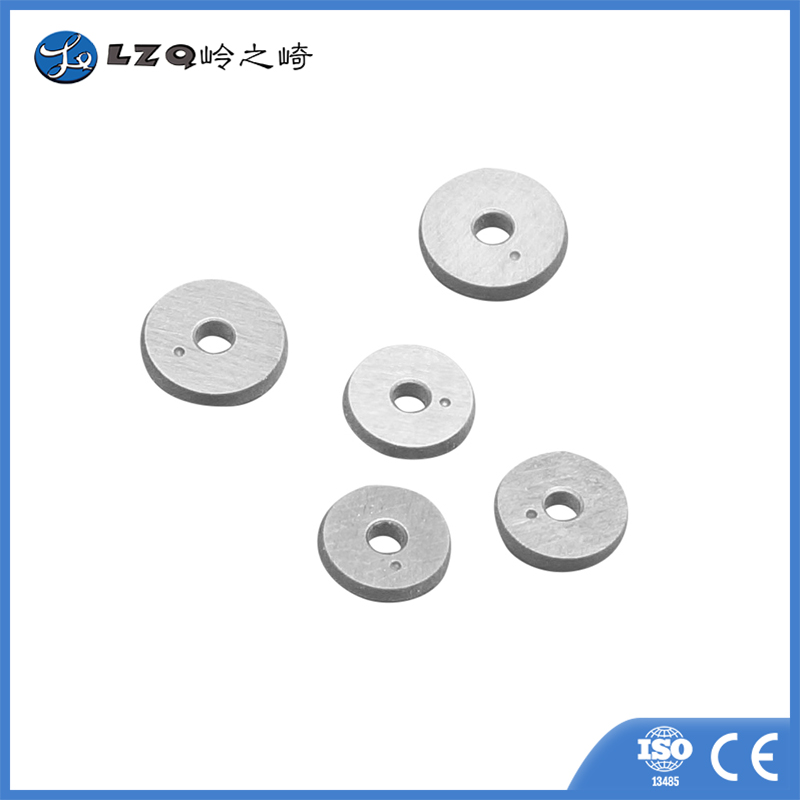

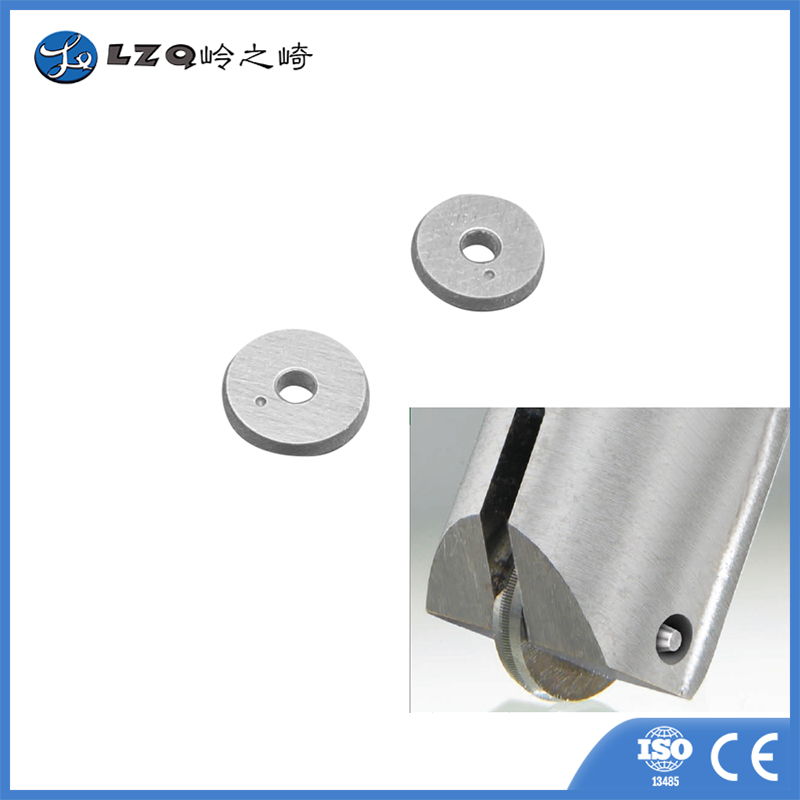

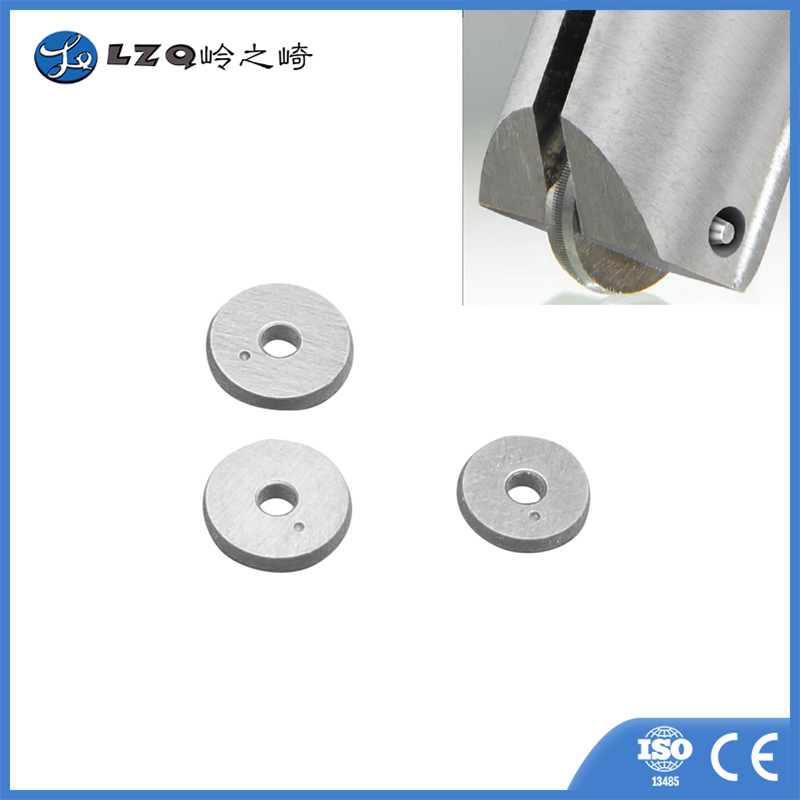

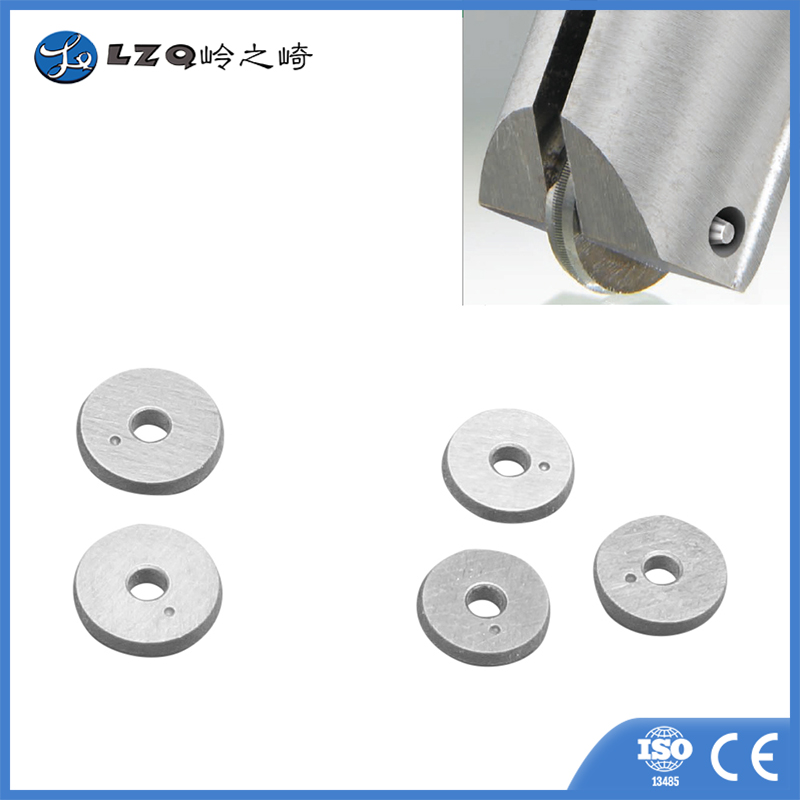

Equipped with state-of-the-art technology, LZQ produces cutting wheels for a wide  variety of applications. Whether for float, drawn, thin or thick glass, special glass like  display or borosilicate glass, LZQ provides carbide, PCD, coated and microstructured  cutting wheels to meet your requirements. High Quality; Reliable and repeatable cutting results

One  of the major benefits of the carbide cutting wheels is that it features a service life which is several times longer than the life of conventional steel wheels. Furthermore, the carbide cutting wheels have consistently good cutting properties which provide clean cut edges for  different glass thicknesses. A similar development can be seen with PCD (polycrystalline diamond). Best raw materials and outstanding machining The careful selection and analysis of the raw material is the starting point for producing top quality glass cutting wheels. But not only the basic material is critical for the quality of the cutting wheel; tremendous know-how lies in the machining of the wheels. The wheels are ground to perfection. The grind is adapted to suit the later application and results in consistently long  service lives and optimal cutting results. The cutting wheels obtain the best running qualities because the holes are hone processed and the side surfaces  are fine polished and lapped.

Due to their special micro-structured cutting edge, these cutting wheels achieve excellent  cutting results with minimal cutting pressure, especially when cutting high quality glass types such as sensoric and solar glass, optical filters and quartz glass. In extensive tests, excellent results have also been achieved with borosilicate glass in various thicknesses. Furthermore, float glass as well as glass tubes can be precisely cut. In addition to the universal application fields, the wheels are also suitable for dry cutting, thereby avoiding any contamination from cutting fluids and the resulting time-consuming cleaning. Also can be used in all common float lines. For standard requirements,  carbide wheels are available – an even longer service life is achieved with wheels made of PCD. The micro-structure allows tensions to be transmitted into the glass with minimal  cutting pressure, resulting in a very easy break of the glass. Due to the structure of the cutting edge, the cutting wheel penetrates as notches into the glass compared to standard wheels which score the glass using their whole  circumference. As a result, micro-openings of the fissure are produced precisely in the cutting direction. Accompanying cracks and damages deviating from the score line are effectively avoided and edge damages reduced to a minimum. All cutting wheels are marked with the cutting angle, thus avoiding confusion when they are used.

Especially when cutting laminated safety glass as well as edge cutting at float glass facilities, service lives can be achieved which are at least ten times as long as that of standard cutting wheels.

At float glass facilities achieves over 250 km of cutting performance.

Furthermore, significant savings can be attained in maintenance: As a result of the long service lives, cutting wheels and wheel holders don‘t need to be exchanged as frequently as usual.

carbide
