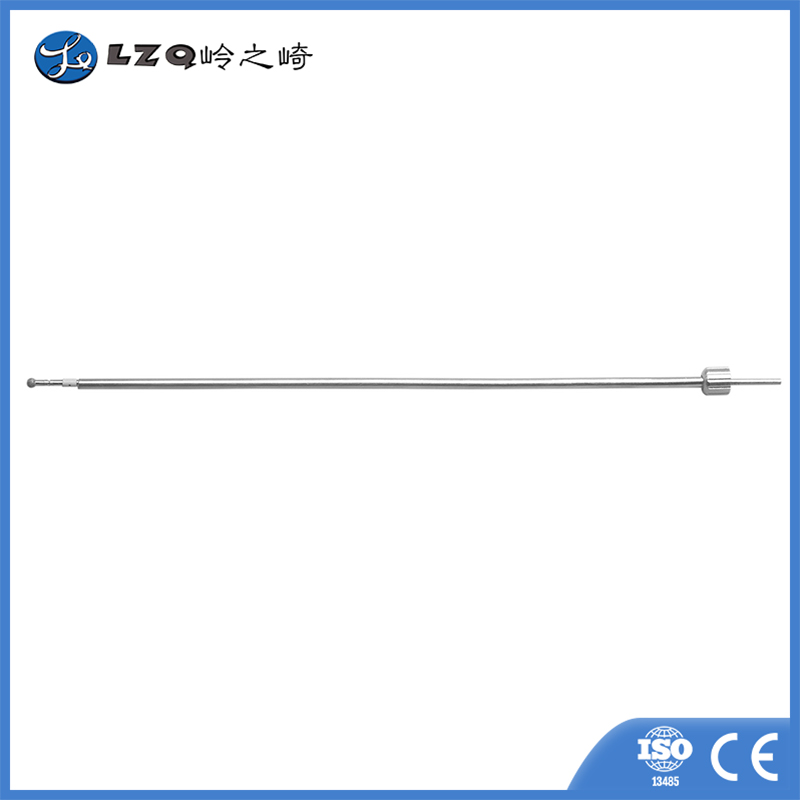

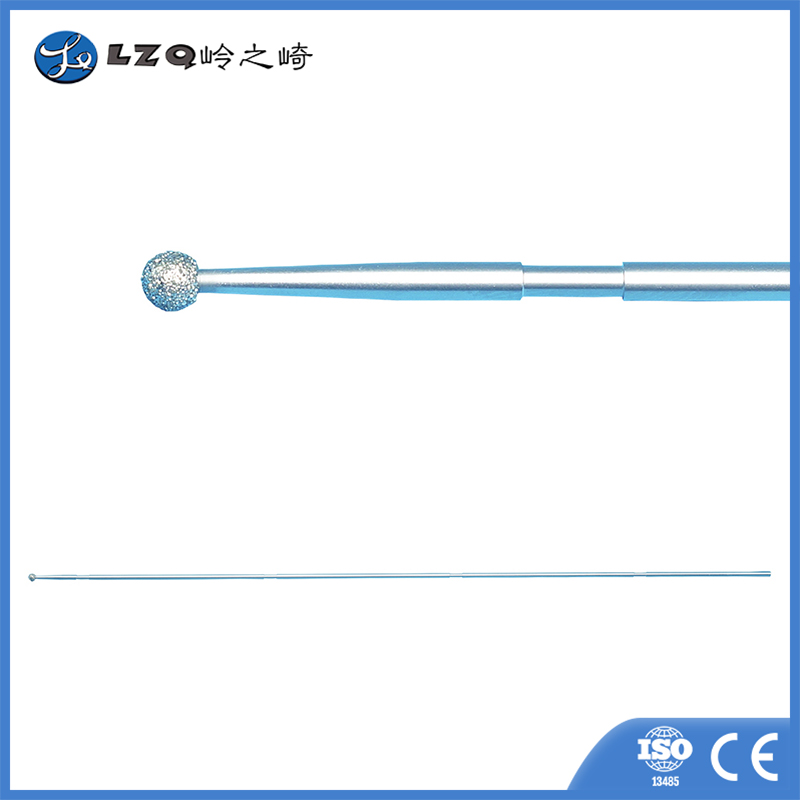

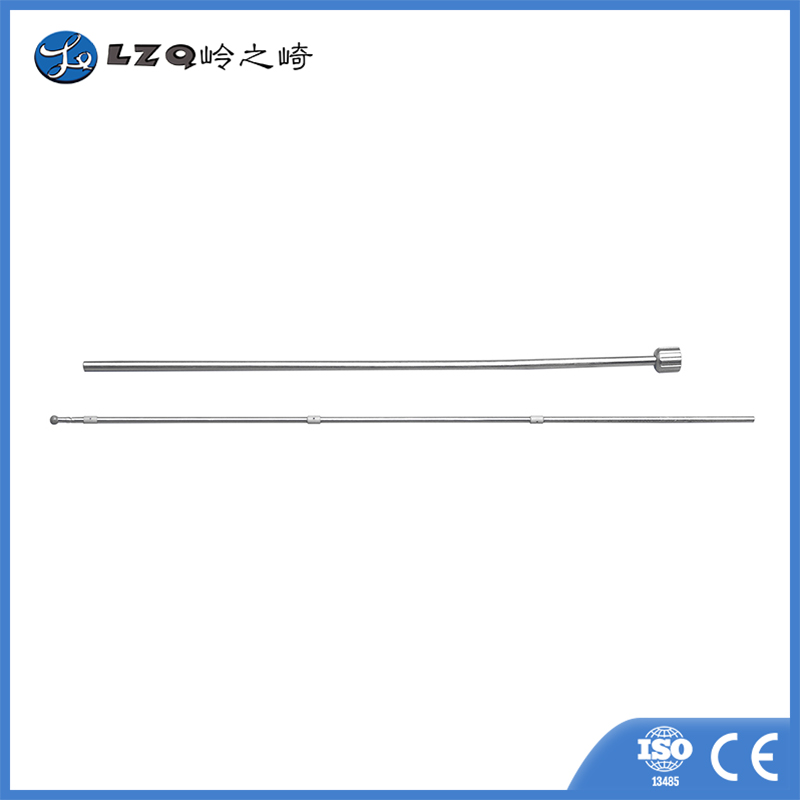

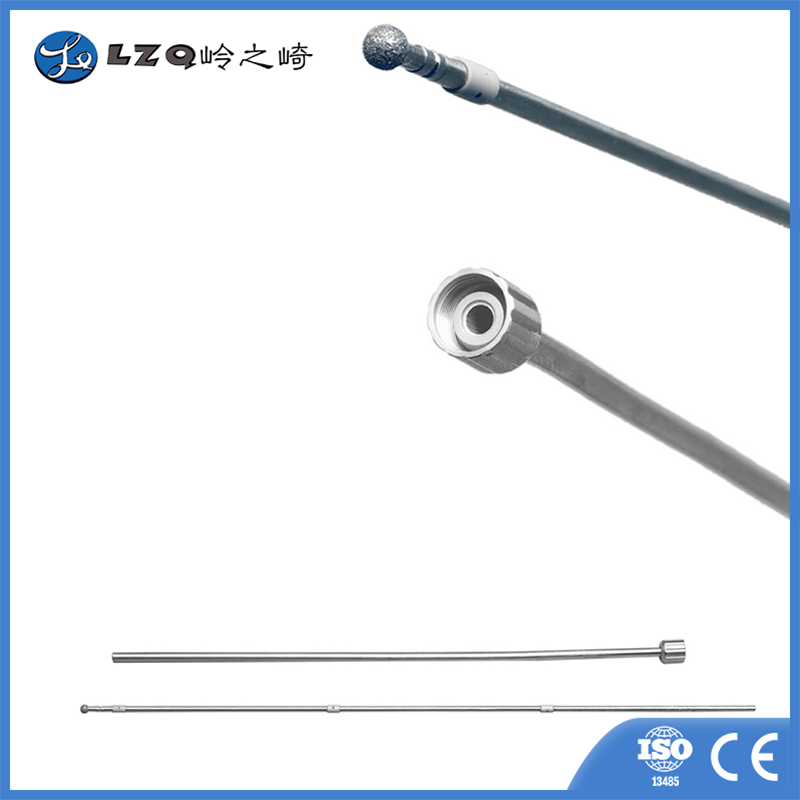

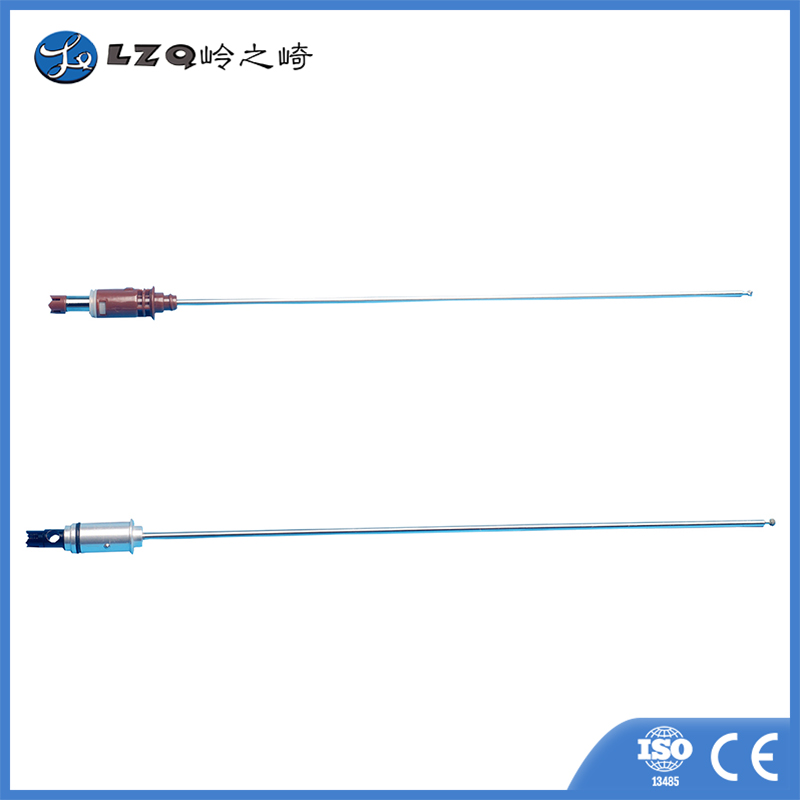

Transforaminal Round Burrs Spinal Bur Tungsten Carbide Round

According to drawings or samples, we can customize CNC precision knife moulds,forming fixtures,brazing fixtures,wear-resistant parts high-precision accessories by(3DX technology)profile,super-hard, super-fine grinding with ceramics,tungsten steel,diamond,ultra-high anti-rust high-hardness high-toughness stainless steel titanium alloy, titanium and other series.

Our products are able to process various materials whatever are micro-thin,super-long, super-thin, super-wear-resistant,impact-resistanttop complex,and combined profile, will all provided with perfect cutting quality and tolerance ofdimension fine to 士0.0005mm(士0.5μm),andahigh-efficiency &low-cost application we deliver to you!

Super high wear resistance(A)& Super high antirust(AA)

CFDA standard bayonet

Some size(A)(Stainless steel solid A-grade cutting edge process)

Head cutting edge material:

1, Super-high anti-rust high wear resistance stainlessstee series(AA)(HRC54°±2° Section)(regular in stock)

2, General anti-rust high wear resistancestainless steel series(A)(HRC64°±2° Section)(regular in stock)

We can also process super-complicated shank shapes, structures, with inner cooling hole, finish, tolerance and super-long total length as customers' requirement.

Yellow/Black/Matt/Shiny surface treatment

We can produce the cutting edge head with any shapes & hardness of different materials.

Regular stock can be processed into edge diameter of d00.20~Ф20.0mm series

Can be processed according to the required number ofblades

Any shank shape or length can be customized, the longest we can process is up to 750mm

Super sharp type & Wear-resistant type

Can produce different handle shape, struct cure, tolerances, precision grinding molding

A:

Head process material grade:(SDC&CBNC)

1. General sharp & general wear-resisting (B) (regularly in stock)

2.Super-long sharp & super-high wear-resisting (A&AA) (require mass customization)

B:

Shank material grade:

1.General anti-rust & high rigidity (A)(regularly in stock)

2. High anti-rust & general rigidity (A) (regularly in stock)

3.Super-high anti-rust & high rigidity (AA) (require mass customization)

C:

Process Grade:

1.General process (B) (regularly in stock)

2. General process, grinding, high concentricity& run-out (A)

3.Full finish grinding, super-high concentricity &run-out (AA) (require mass customization)

Application domain: dental, orthopedic surgery, maxillofacial surgery, neurosurgery

Material: UNS S42000

(Super-high rust-proof stainless steel A+) (hardened HRC60°±2°Section)

Ultra-high anti-rust, high-sharpness and super-high wear-resistant stainless steel, with super-high wear resistance (super high hardness) performance and high standards of rust and corrosion resistance. It has a service life of 2 ~ 3 times longer than that of general stainless steel. The cutting edge keeps for a super-long time of cutting sharpness. Unmarked, with 5% Neutral salt spray test (ASTM B117), it doesn't rust after 300 hours, which meet FDA high standard. If for repeated use, it is recommended to clean and dry it in time after every surgery.

Wide range of applications. With excellent abrasion resistance and sharpness, it can be used to produce extremely complex, high-precision handle shapes and formed super-sharp edge structures.
