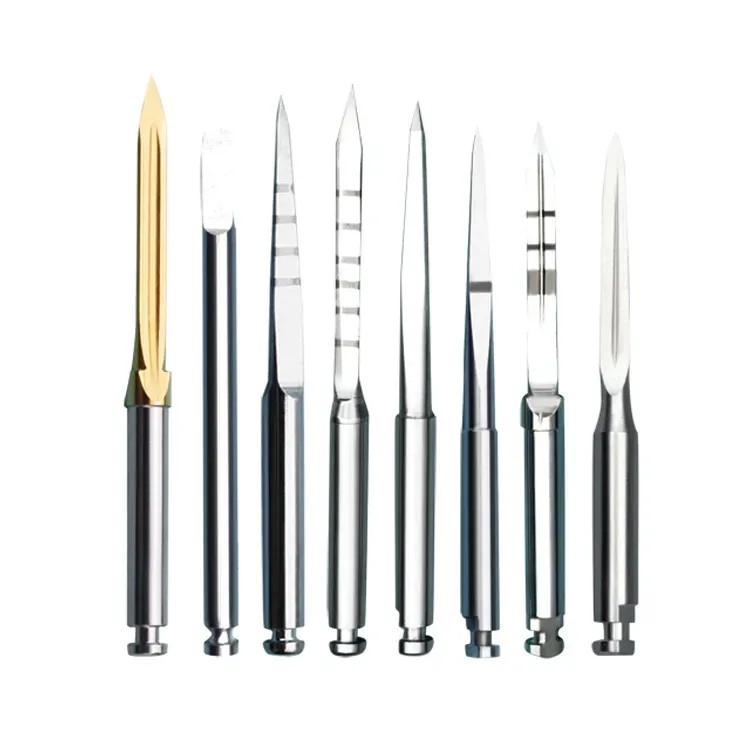

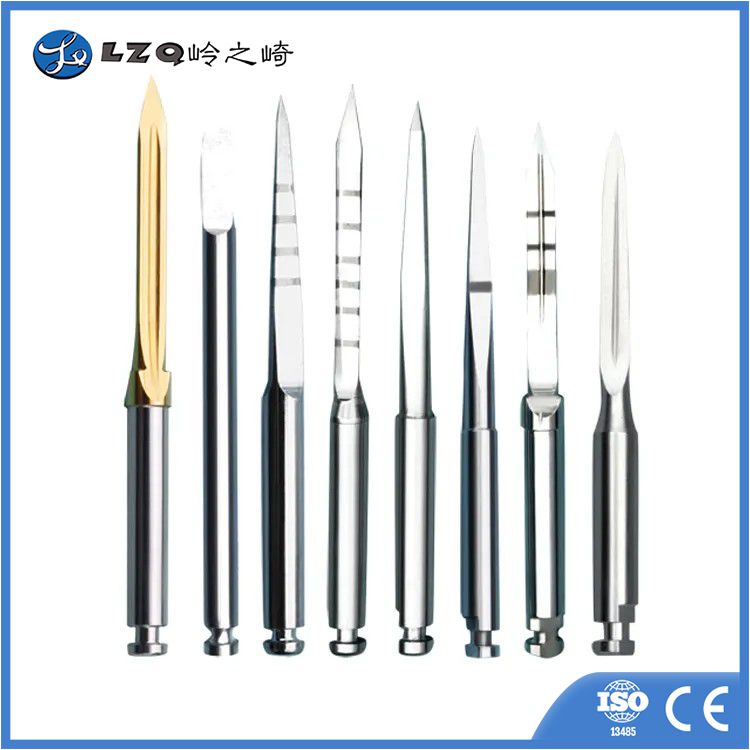

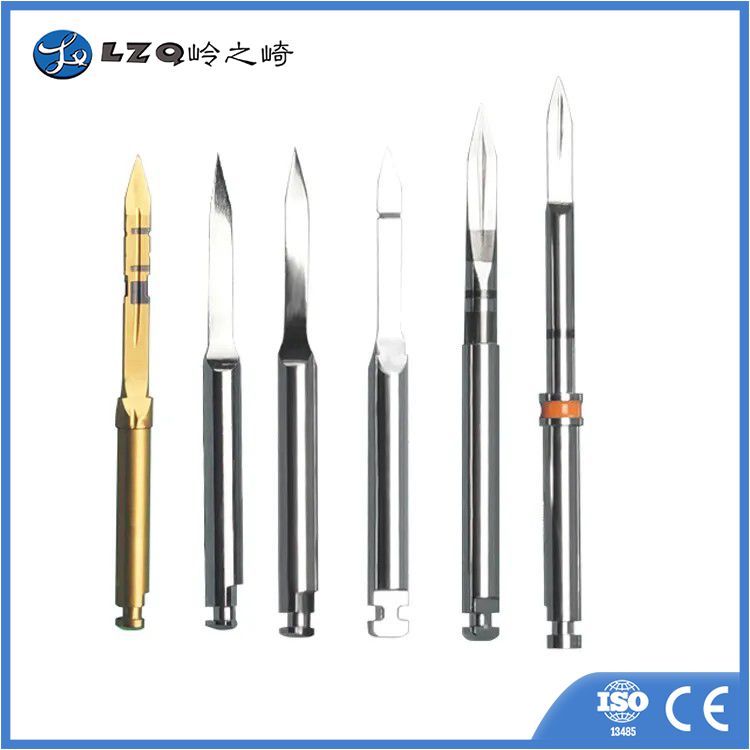

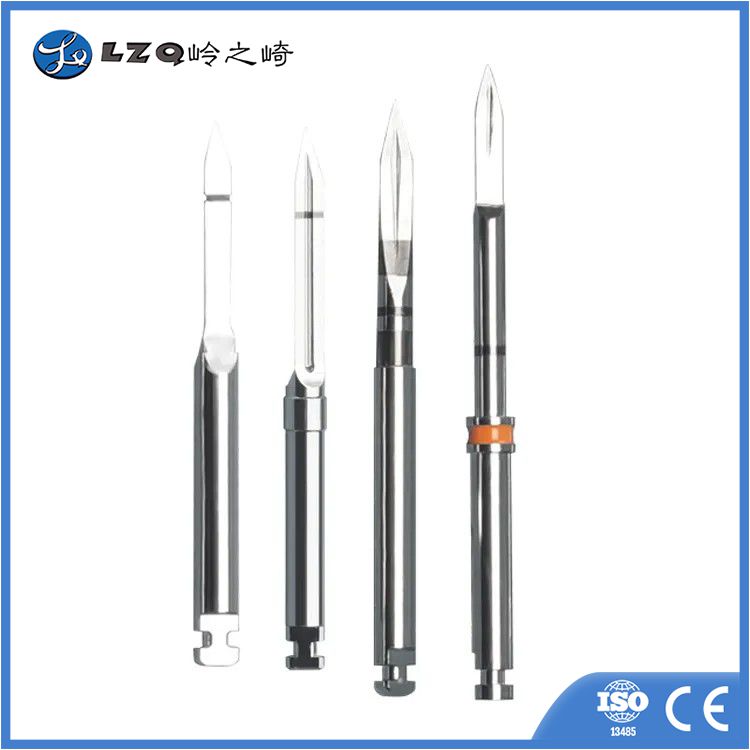

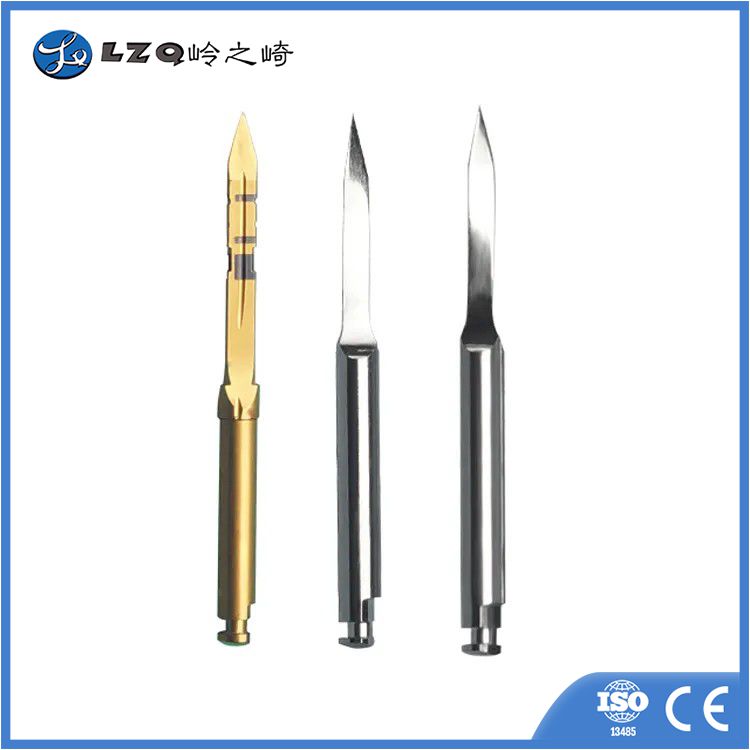

Pathfinder Drill

We can achieve perfect edge quality and dimensional tolerance up to±0.0005mm (±0.5μm) in the process of micro, ultra-long, ultra-thin, super-abrasive, impact-resistant, high-precision and combined profile products,  and realize high-efficiency and low-cost applications.

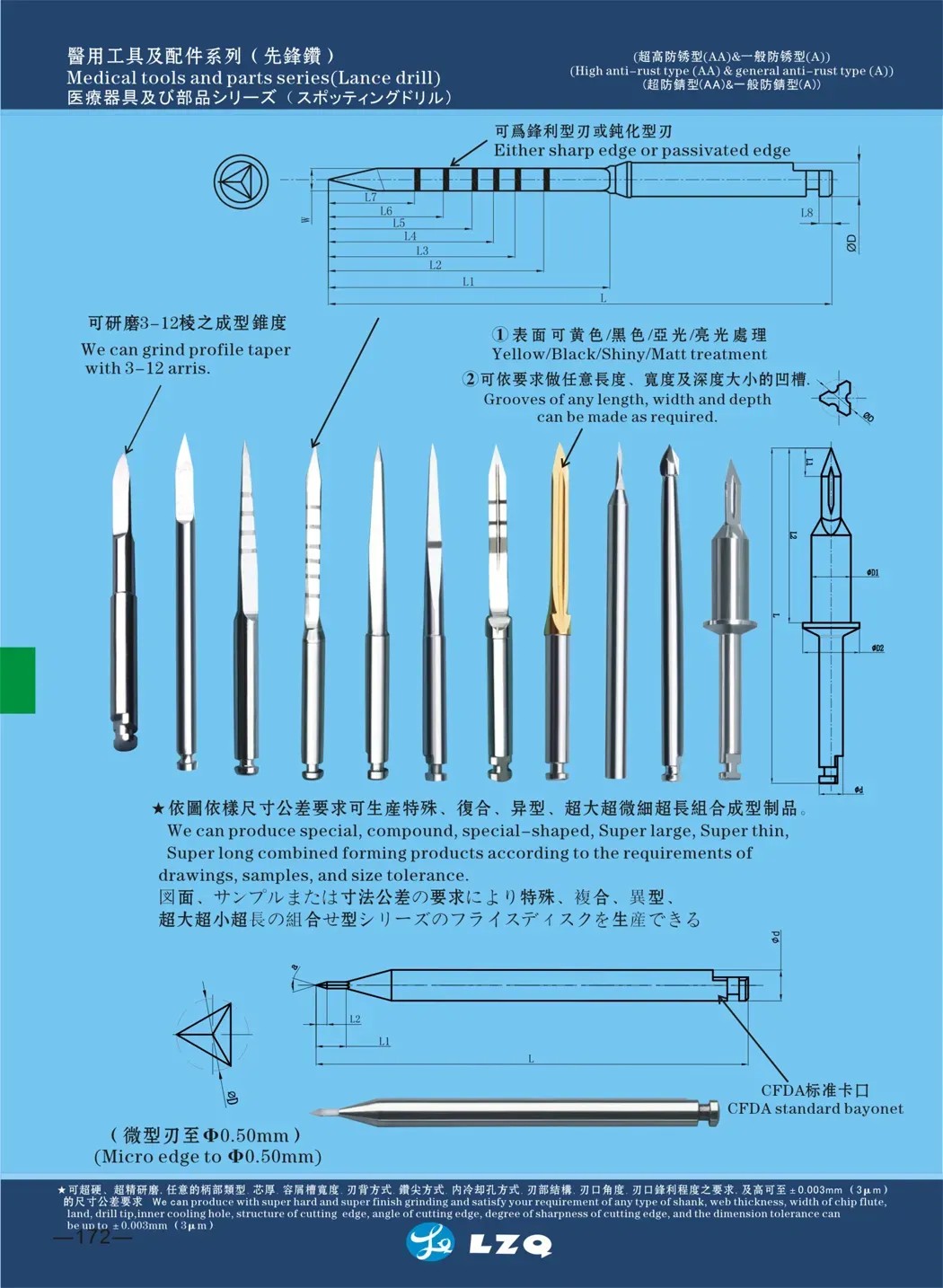

1. Any angle and type of drill tip

2. Any way of land and drill land

3. Any web thickness,width of chip flute and depth

4. Different color ring

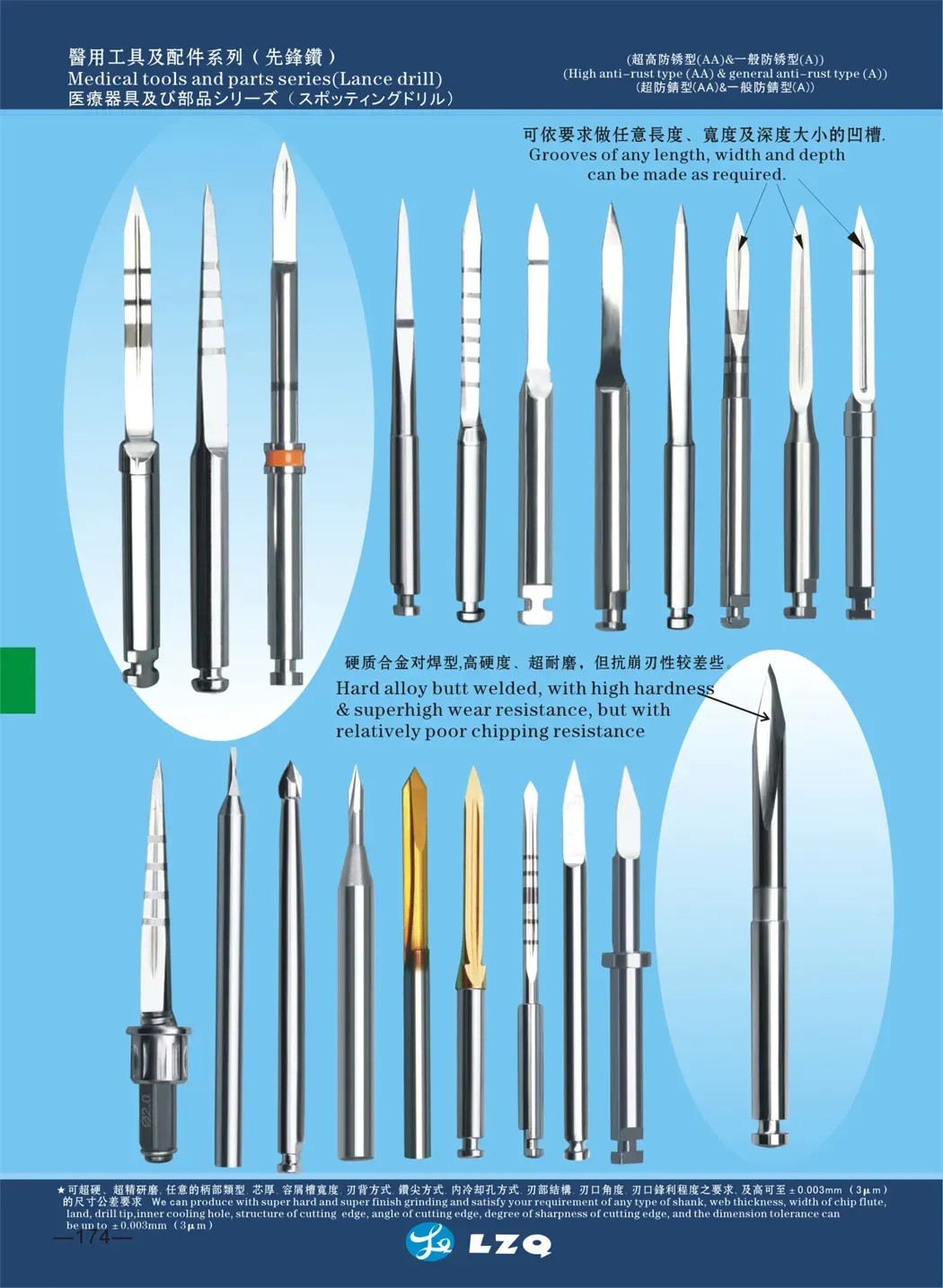

LZQ is an OEM factory that produces a variety of dental implant drills, for example, Lance Drill P172,Bone Drill Point P227, Abutment/Transfer P25, Screwdriver P79, Wrench P53, etc. We can also produce a whole kit of tools for customers’ surgical cases.

Conventional materials:

After removing the screw, a tool is used to clean-up the bone around EB fixture before putting the prosthesis..

Make an initial hole in bone tissue, bone density ascertainable during the drilling

Marks the fixture placement site
Allows the estimation of cortical bone thickness and bone density.

Serves as a guide to initial drilling

Prevents a jam with the hand piece

All drills are available with or without irrigation according to the dentist/surgeon’s preferences.

Make an initial hole in bone tissue, bone density ascertainable during the drilling

Marks the fixture placement site

(Ultra-high rust-proof stainless steel AA)

(hardened HRC54 ° ± 2 °  Section)

Ultra-high anti-rust & high wear-resistant , high hardness, high impact, high toughness stainless steel, with excellent anti-rust capability, corrosion resistance, wear resistance (high hardness) performance and ideal impact resistance…Its excellent corrosion resistance is comparable to TYPE 304 Stainless steel; and its rust resistance is closer to alloy for surgical implant. Unmarked, with 5% Neutral salt spray test (ASTM B117), it doesn't rust after 1000 hours. Wide range of applications, quite good and stable quality, which can be used to produce extremely complex, high-precision shank shapes and profile ultra-sharp edge structures.

Applied for high-end medical standard:

AMS 5936 .   MMPDS-01 .   ASTM  A693  .

ASTM  A564   .   ASTM  F899-12

The Vitro (cytotoxicity) test verifies that the material does not have any potential cytotoxicity and therefore can safely contact human tissue, body fluids or blood, and meets all relevant allergy and skin irritation test standards.

Application domain: For implantology

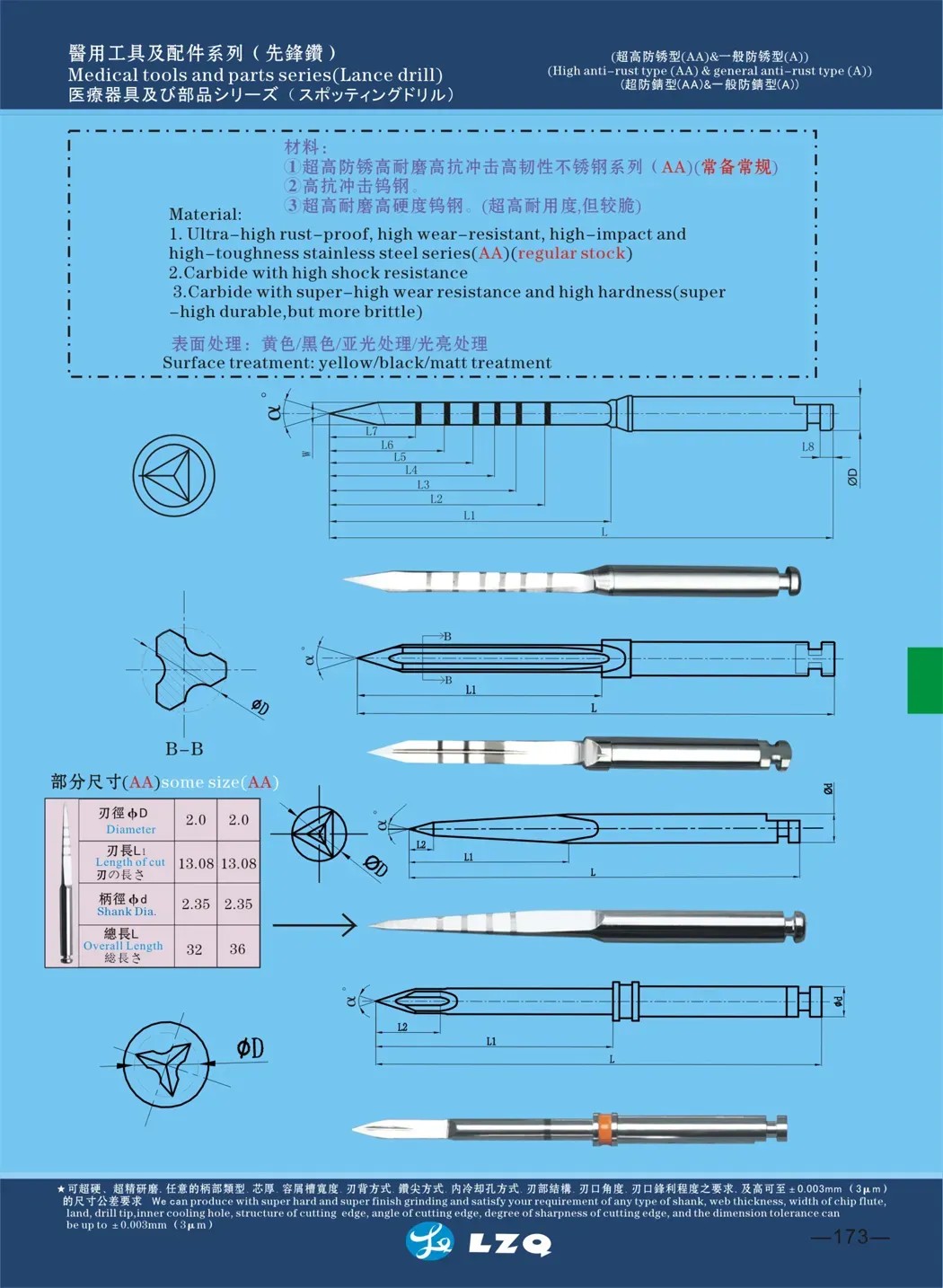

Material:

(Ultra-high rust-proof stainless steel AA) (hardened HRC54 ° ± 2 °  Section)

Ultra-high anti-rust & high wear-resistant , high hardness, high impact, high toughness stainless steel, with excellent anti-rust capability, corrosion resistance, wear resistance (high hardness) performance and ideal impact resistance.. Its excellent corrosion resistance is comparable to TYPE 304 Stainless steel; and its rust resistance is closer to alloy for surgical implant. Unmarked, with 5% Neutral salt spray test (ASTM B117), it doesn't rust after 1000 hours. Wide range of applications, quite good and stable quality, which can be used to produce extremely complex, high-precision shank shapes and profile ultra-sharp edge structures.

Applied for high-end medical standard:

AMS 5936   .  MMPDS-01  .  ASTM  A693

ASTM  A564   .  ASTM  F899-12

The Vitro (cytotoxicity) test verifies that the material does not have any potential cytotoxicity and therefore can safely contact human tissue, body fluids or blood, and meets all relevant allergy and skin irritation test standards.
