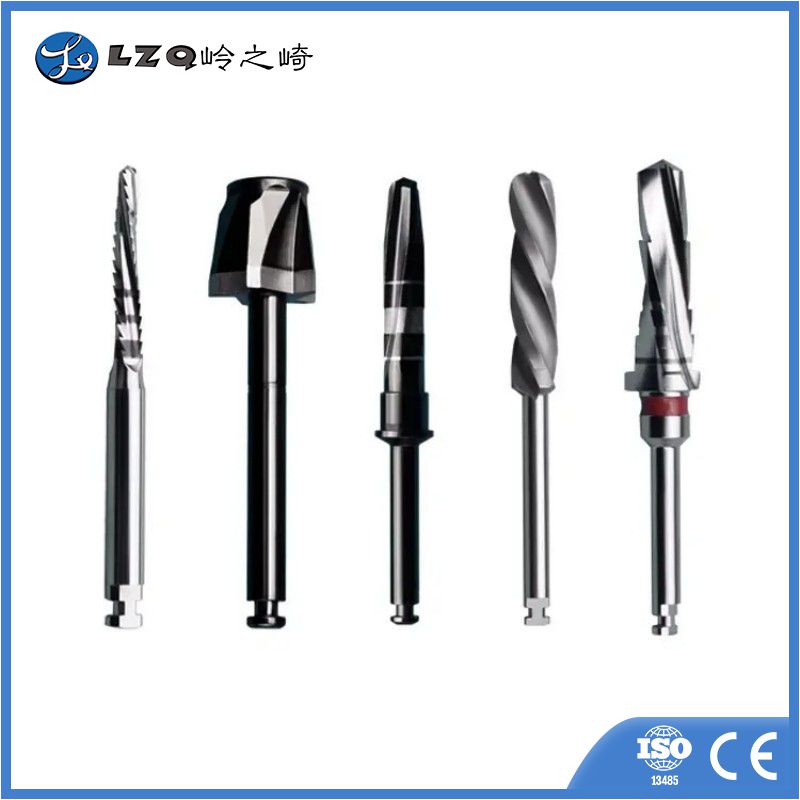

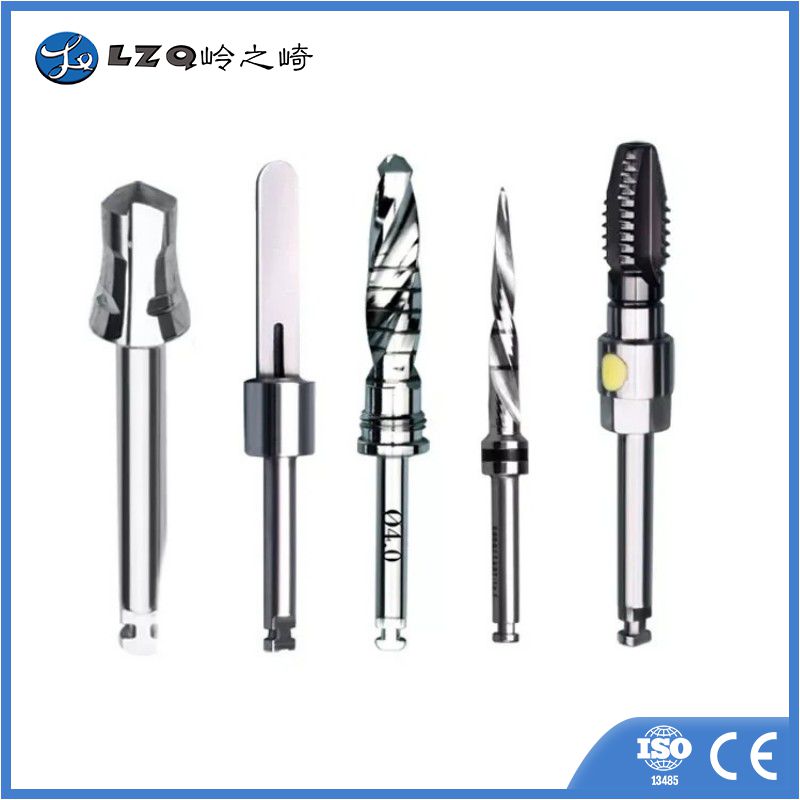

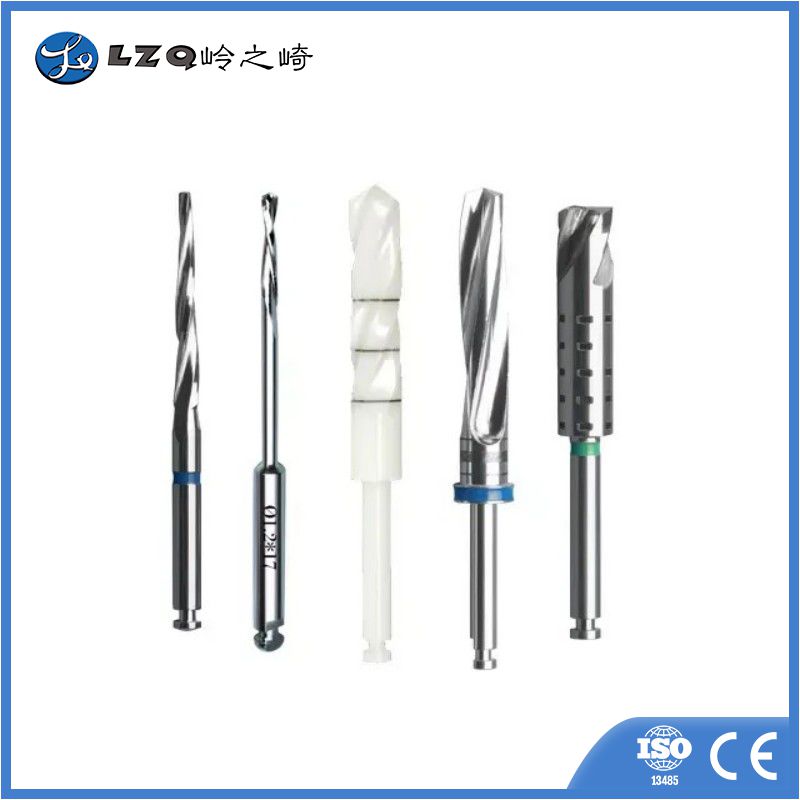

Micro Drill Bit

We can achieve perfect edge quality and dimensional tolerance up to±0.0005mm (±0.5μm) in the process of micro, ultra-long, ultra-thin, super-abrasive, impact-resistant, high-precision and combined profile products,  and realize high-efficiency and low-cost applications.

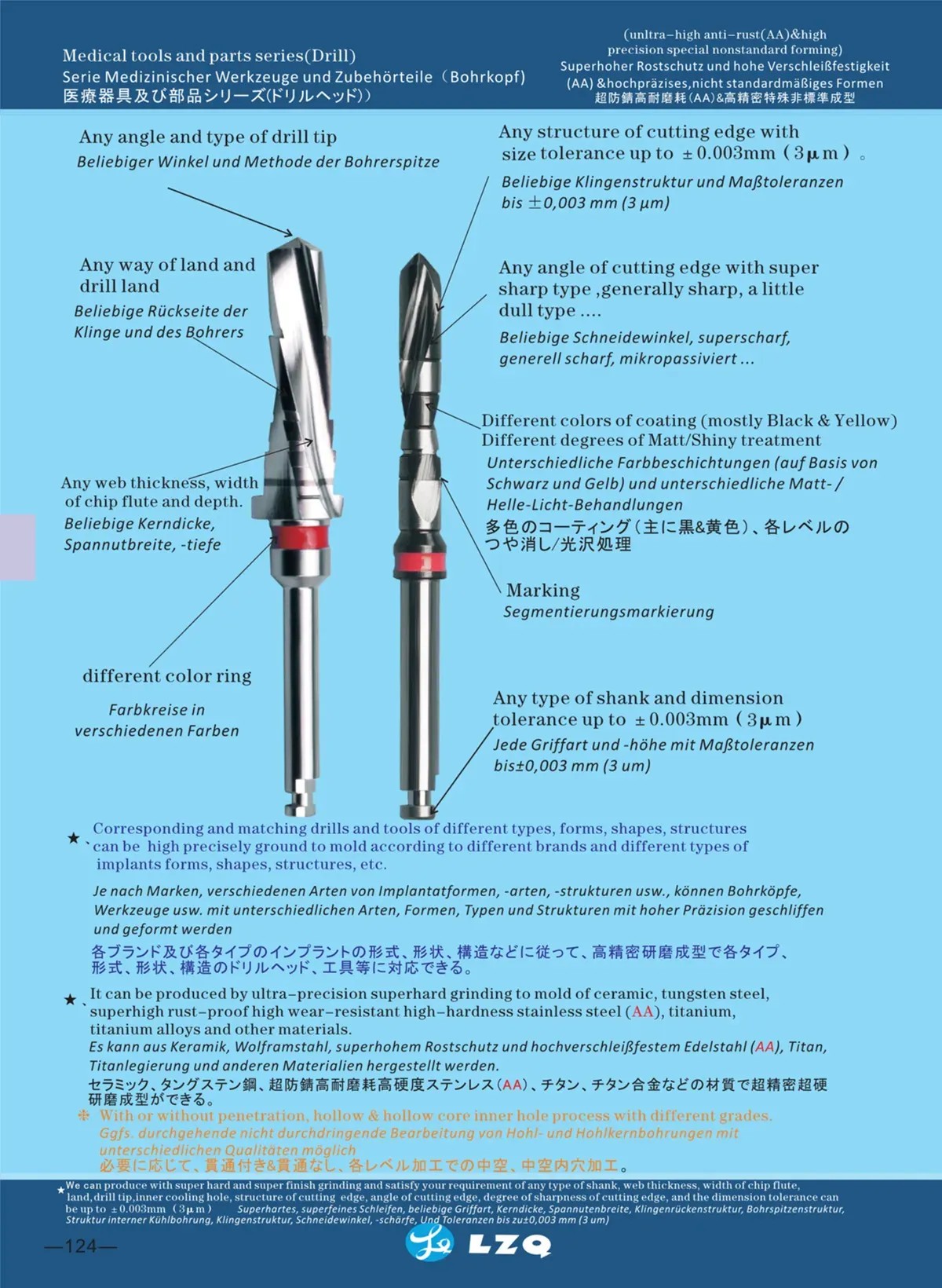

1. Any angle and type of drill tip

2. Any way of land and drill land

3. Any web thickness,width of chip flute and depth

4. Different color ring

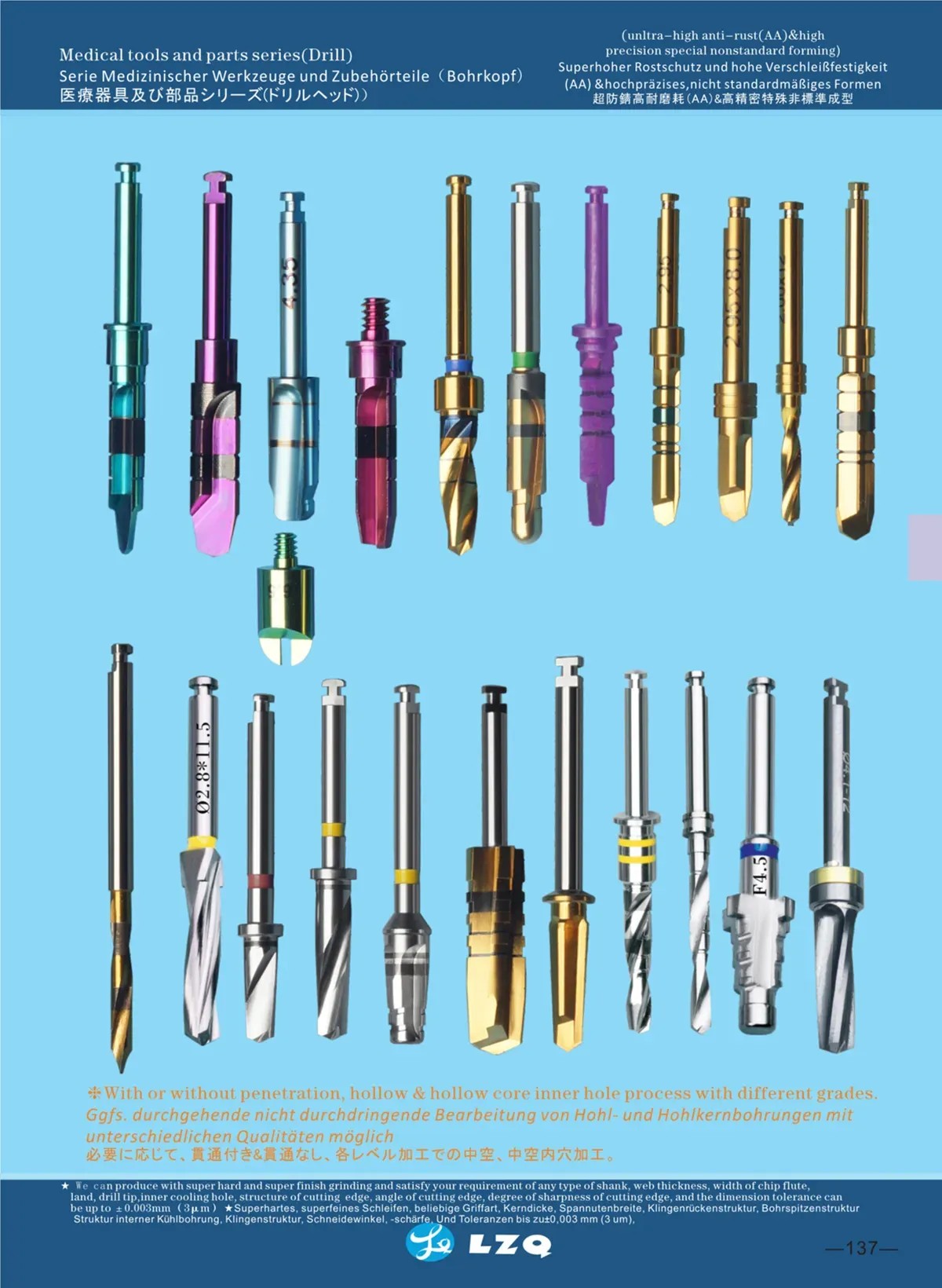

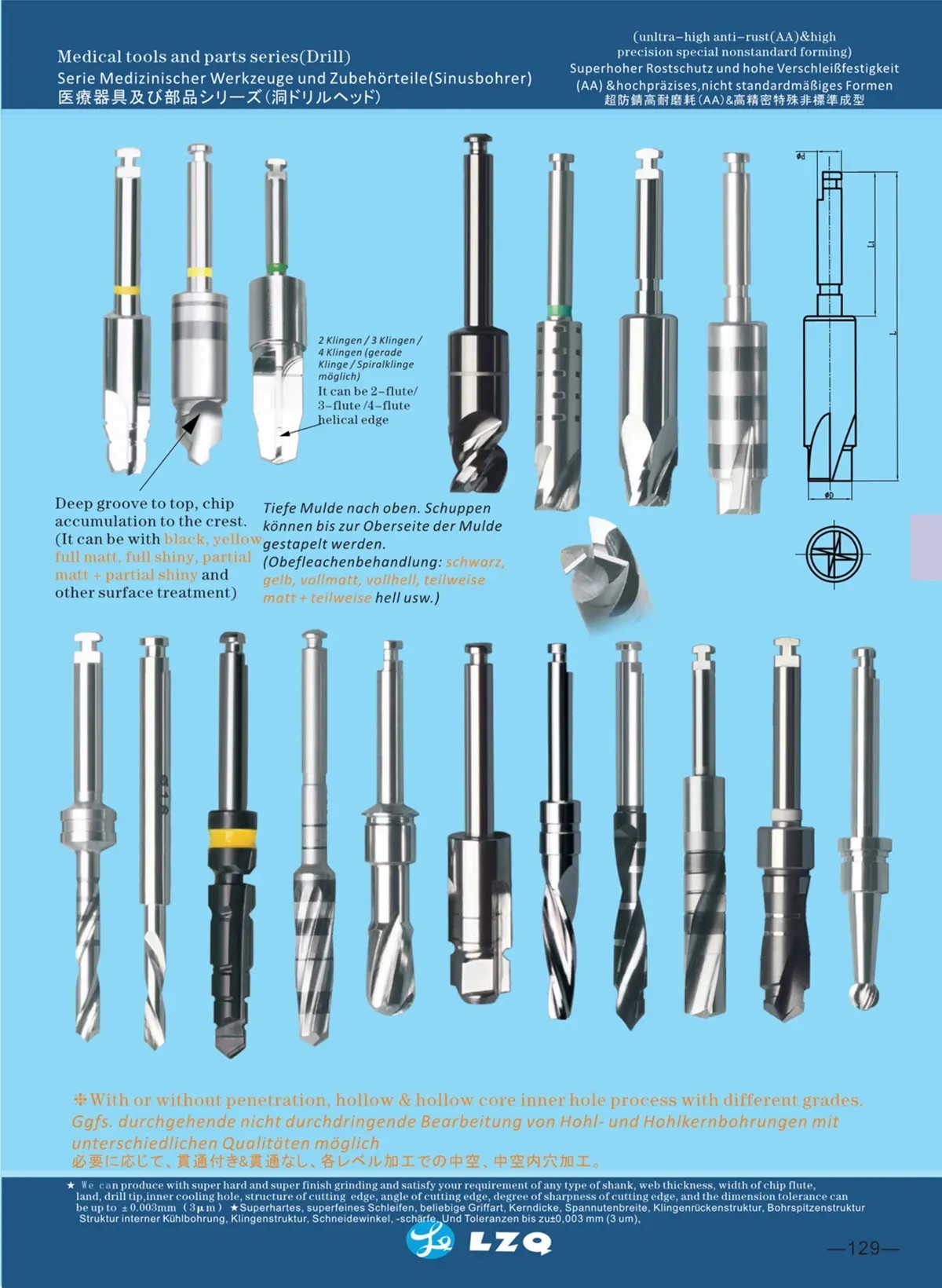

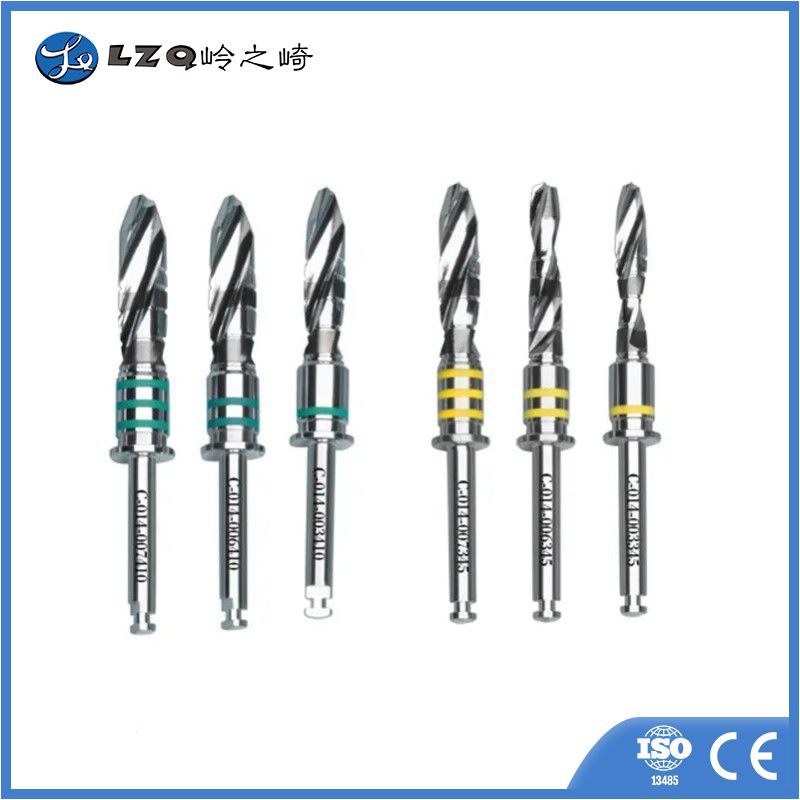

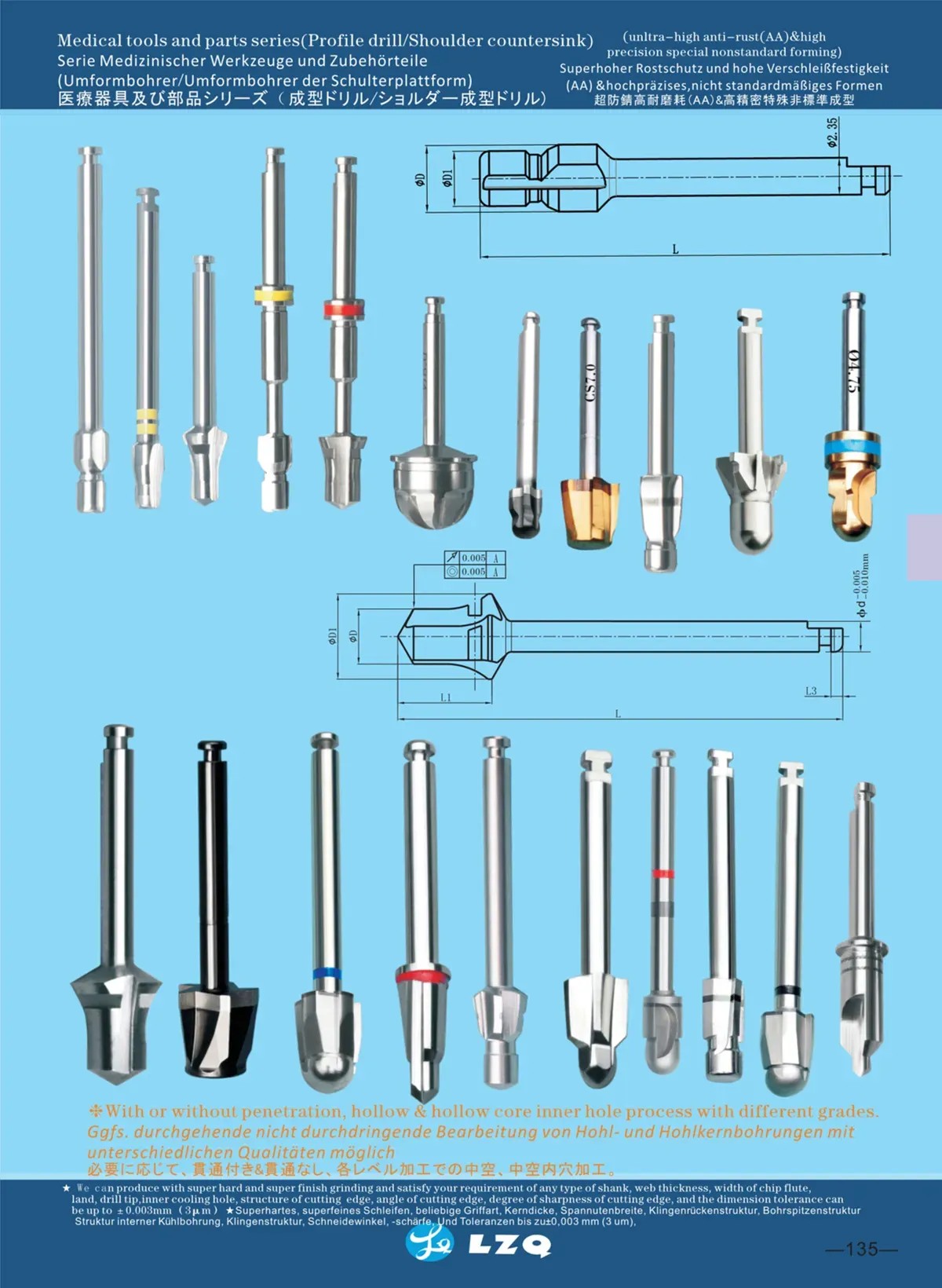

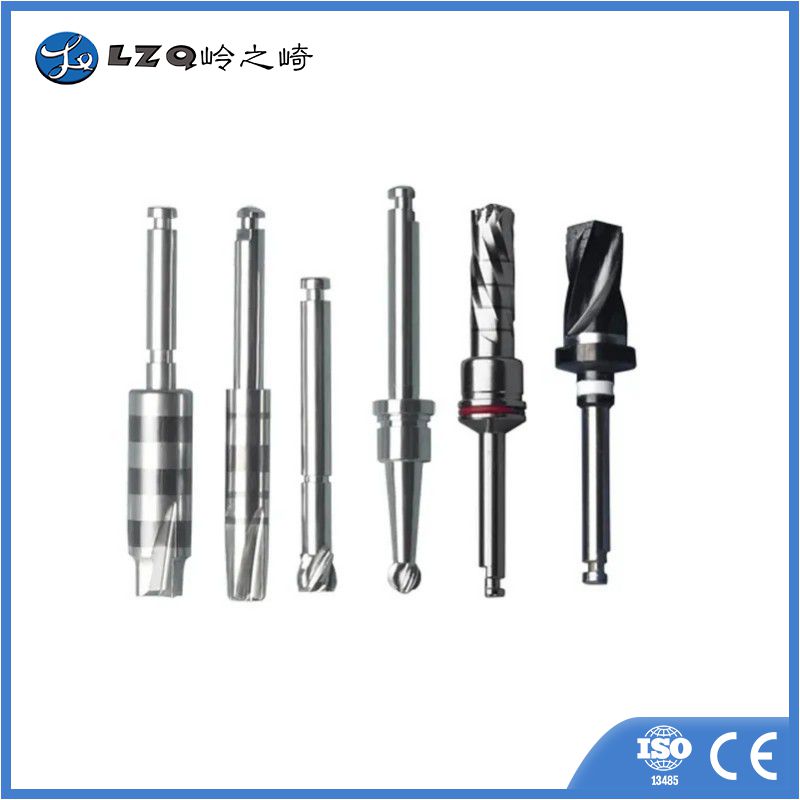

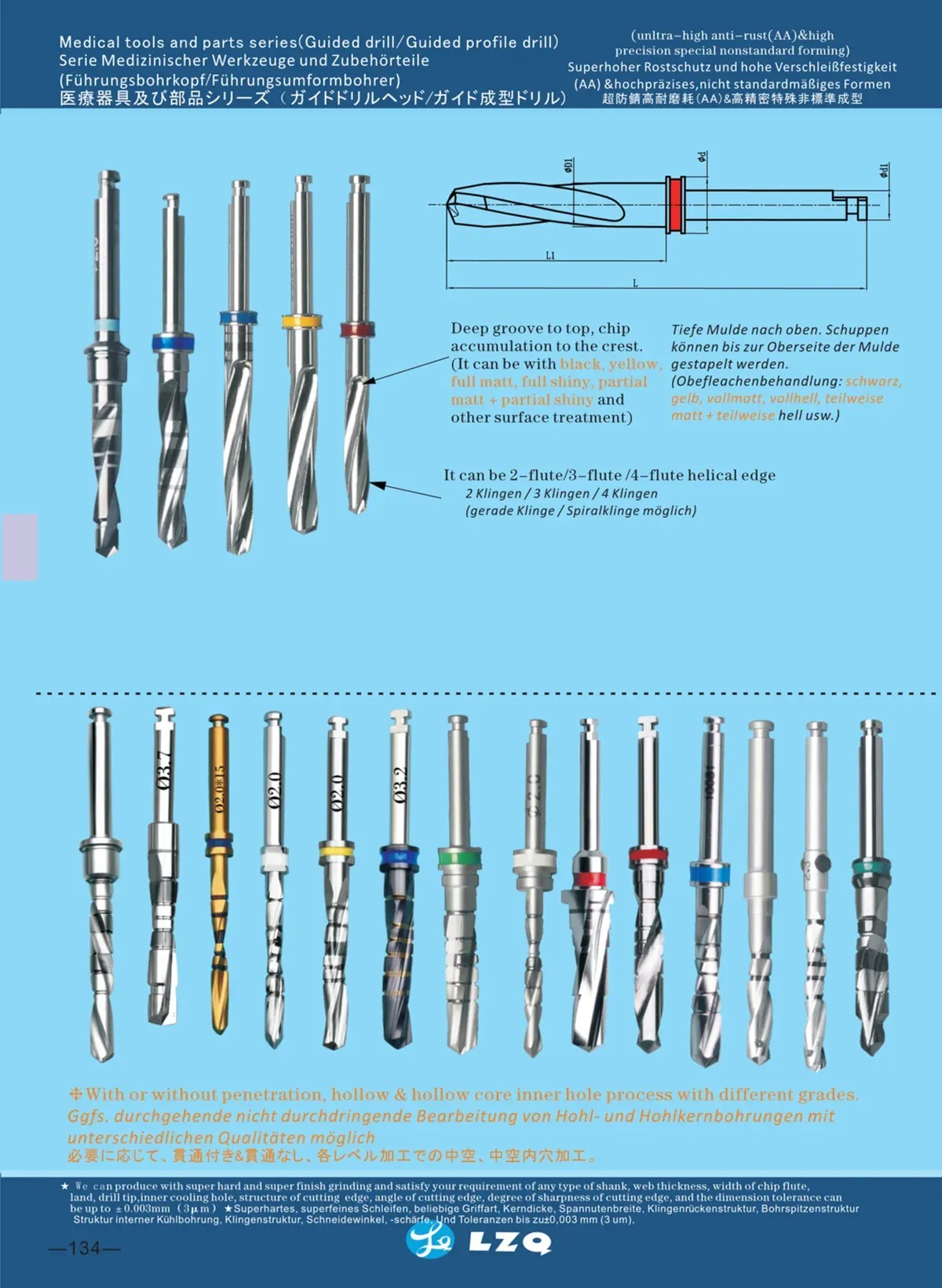

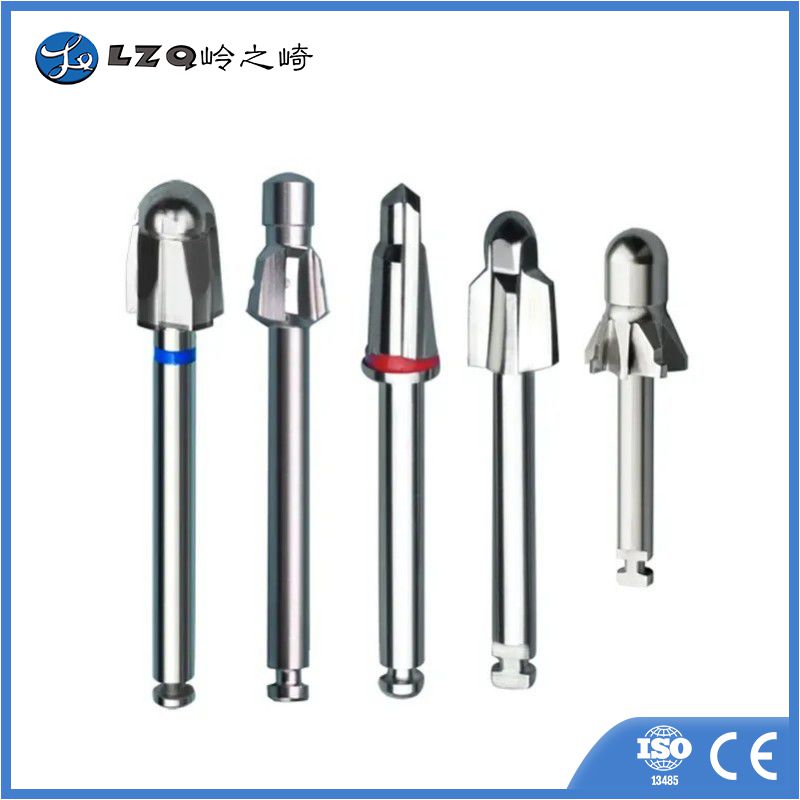

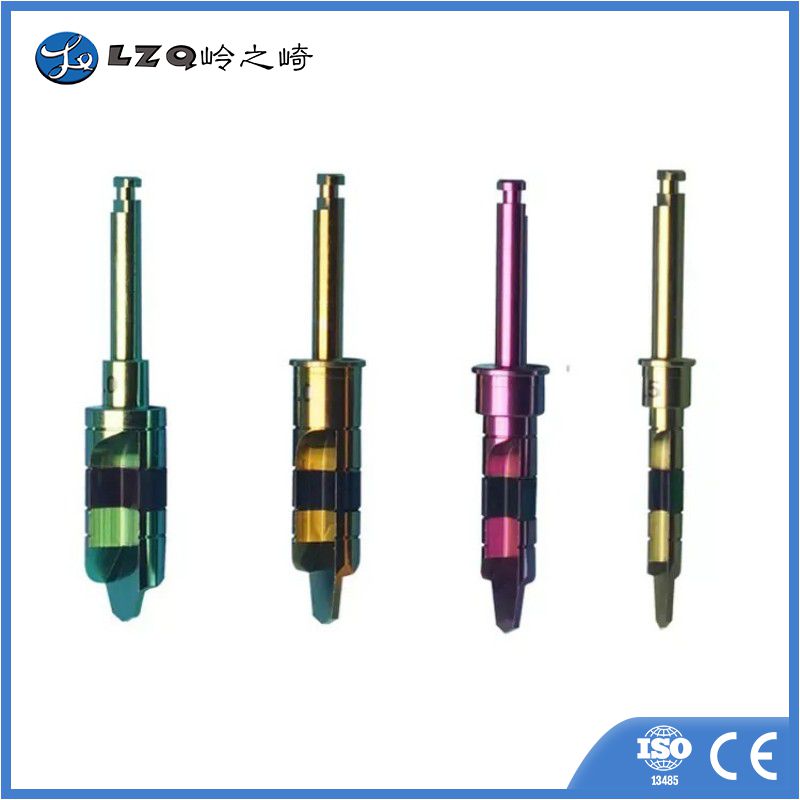

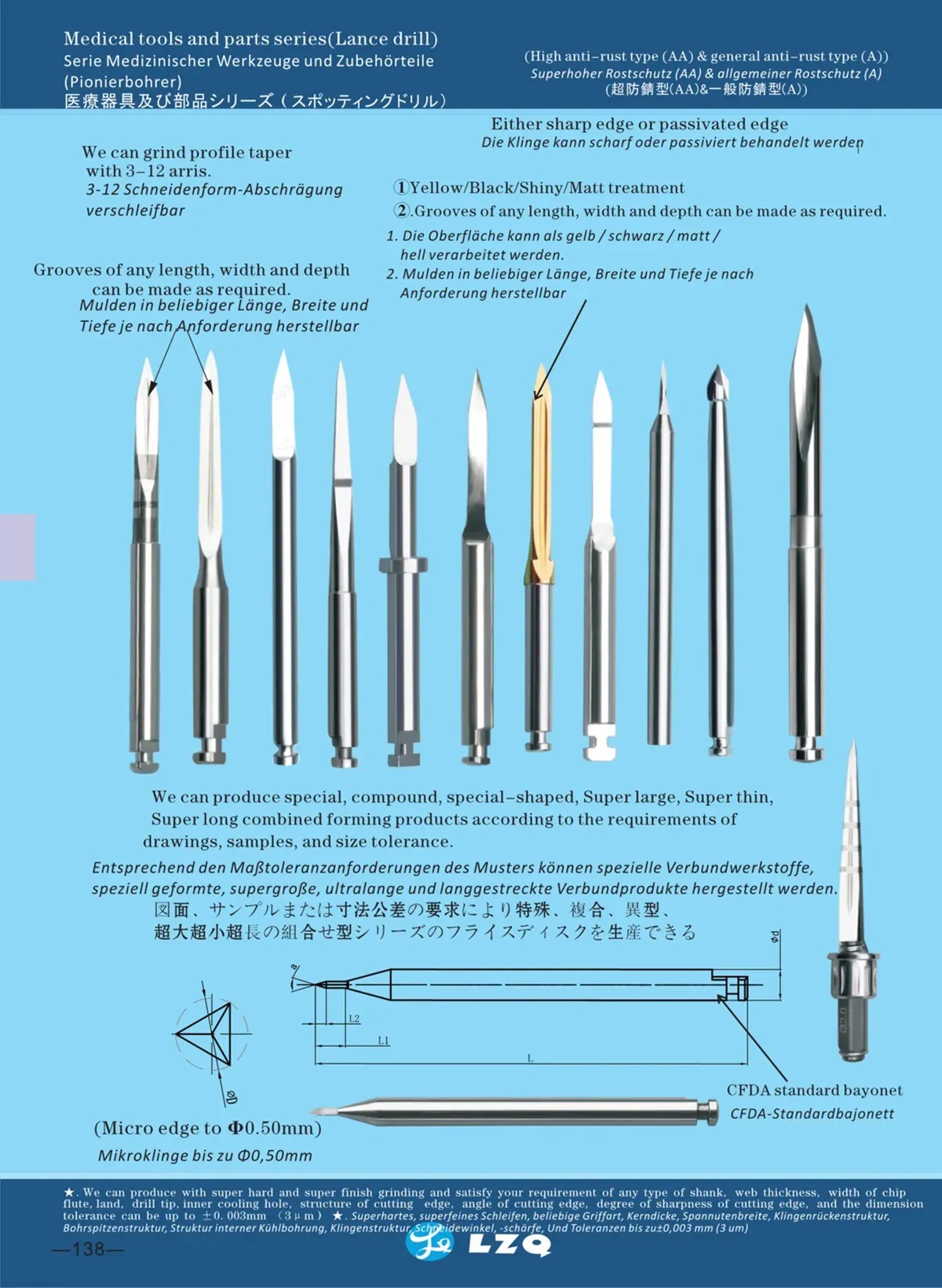

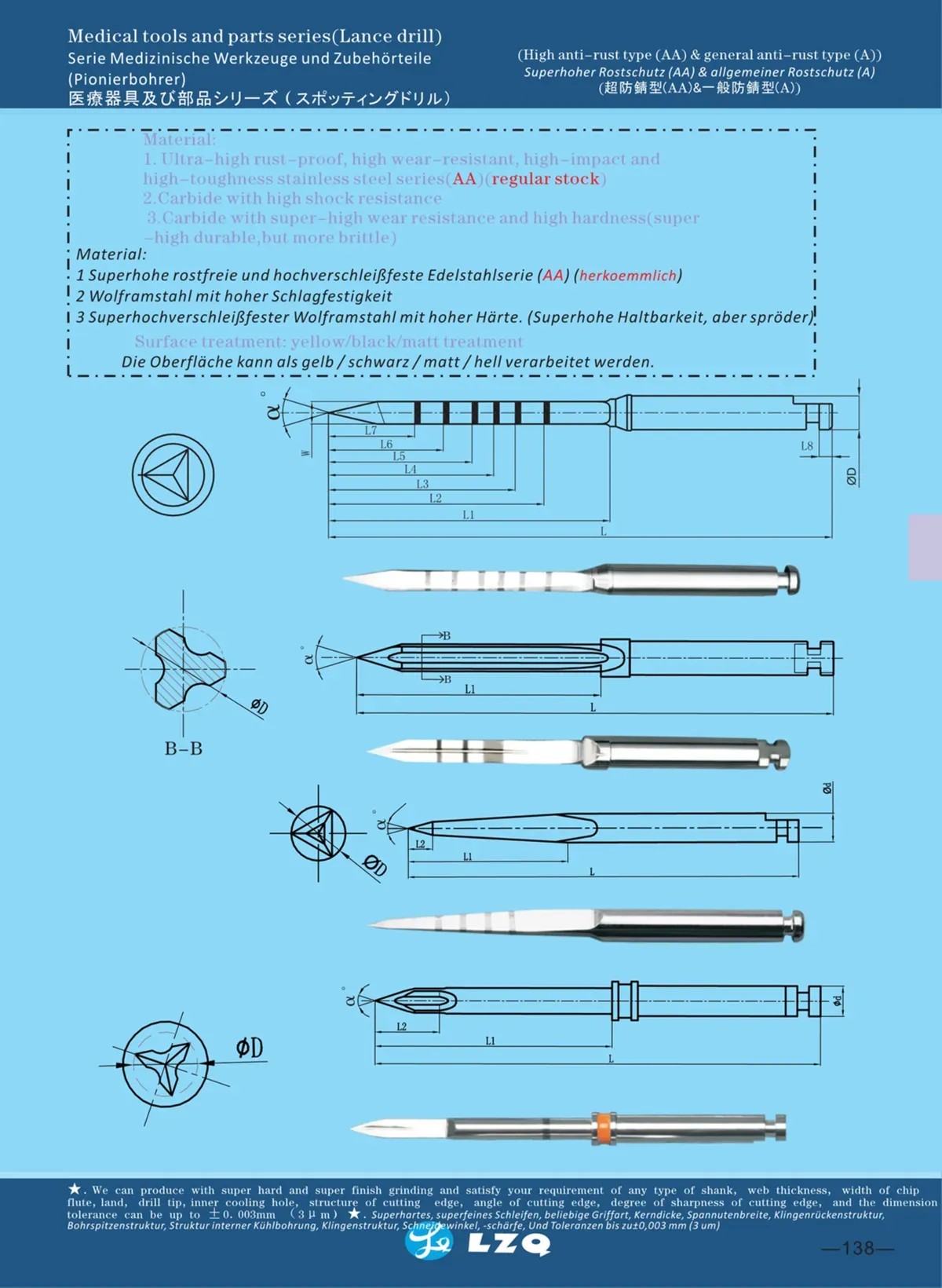

LZQ is an OEM factory that produces a variety of dental implant drills, for example, Guide Drill P108, Profile Drill P144, Parallel Pin P37, Drill Key P47, Lance Drill P172, Kirschner Wires P178, etc. We can also produce the complete surgical kits for customers.

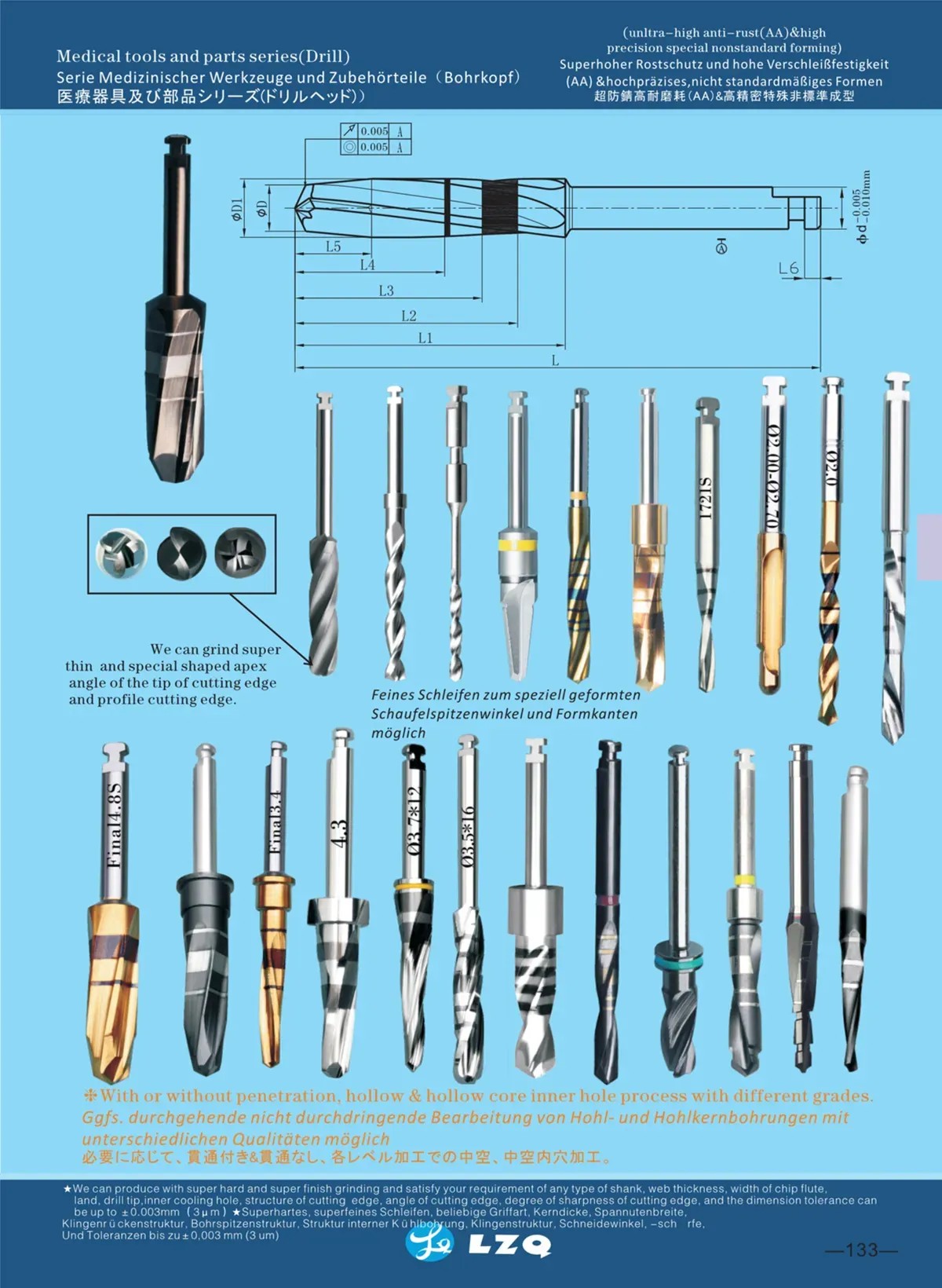

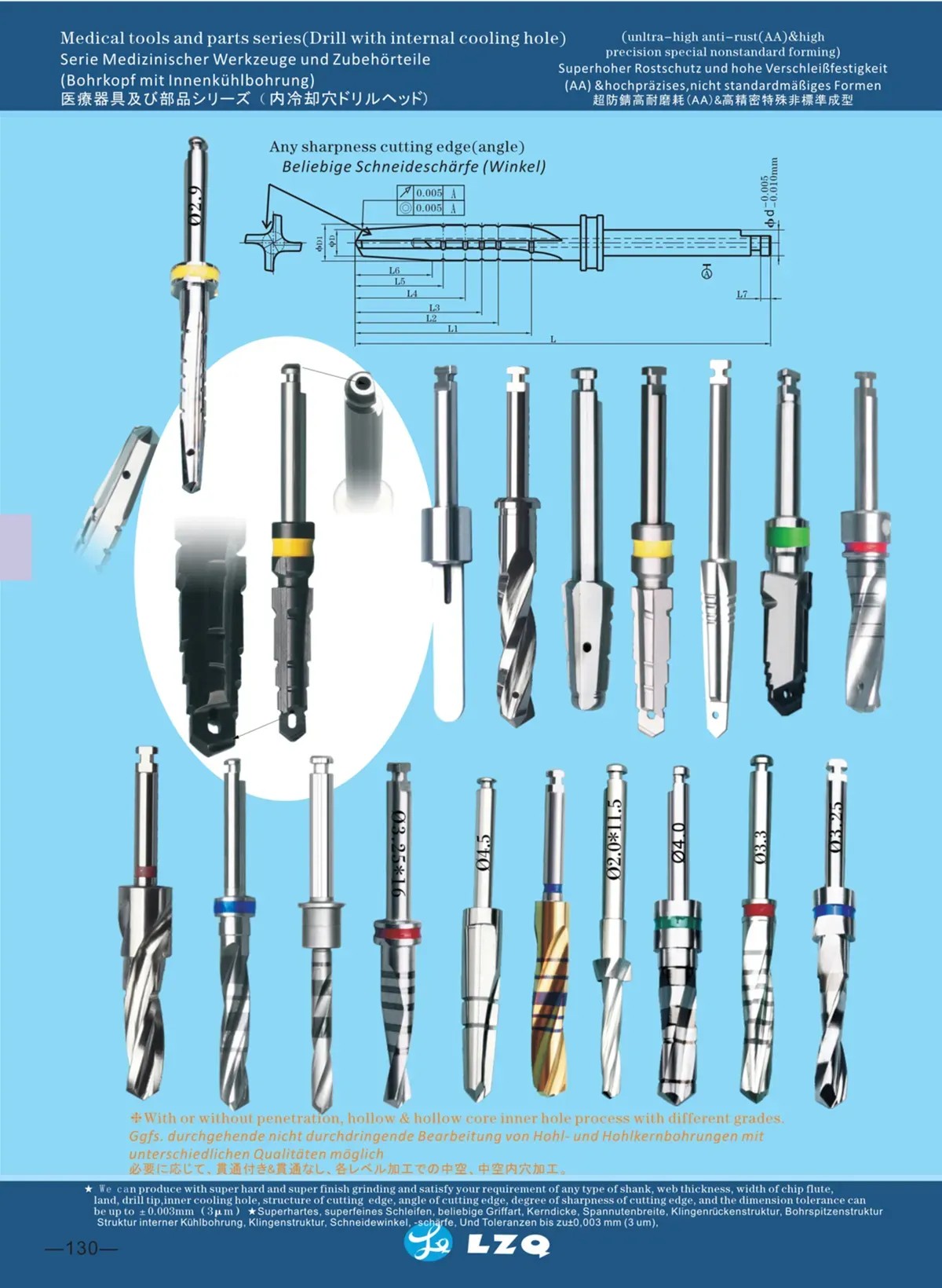

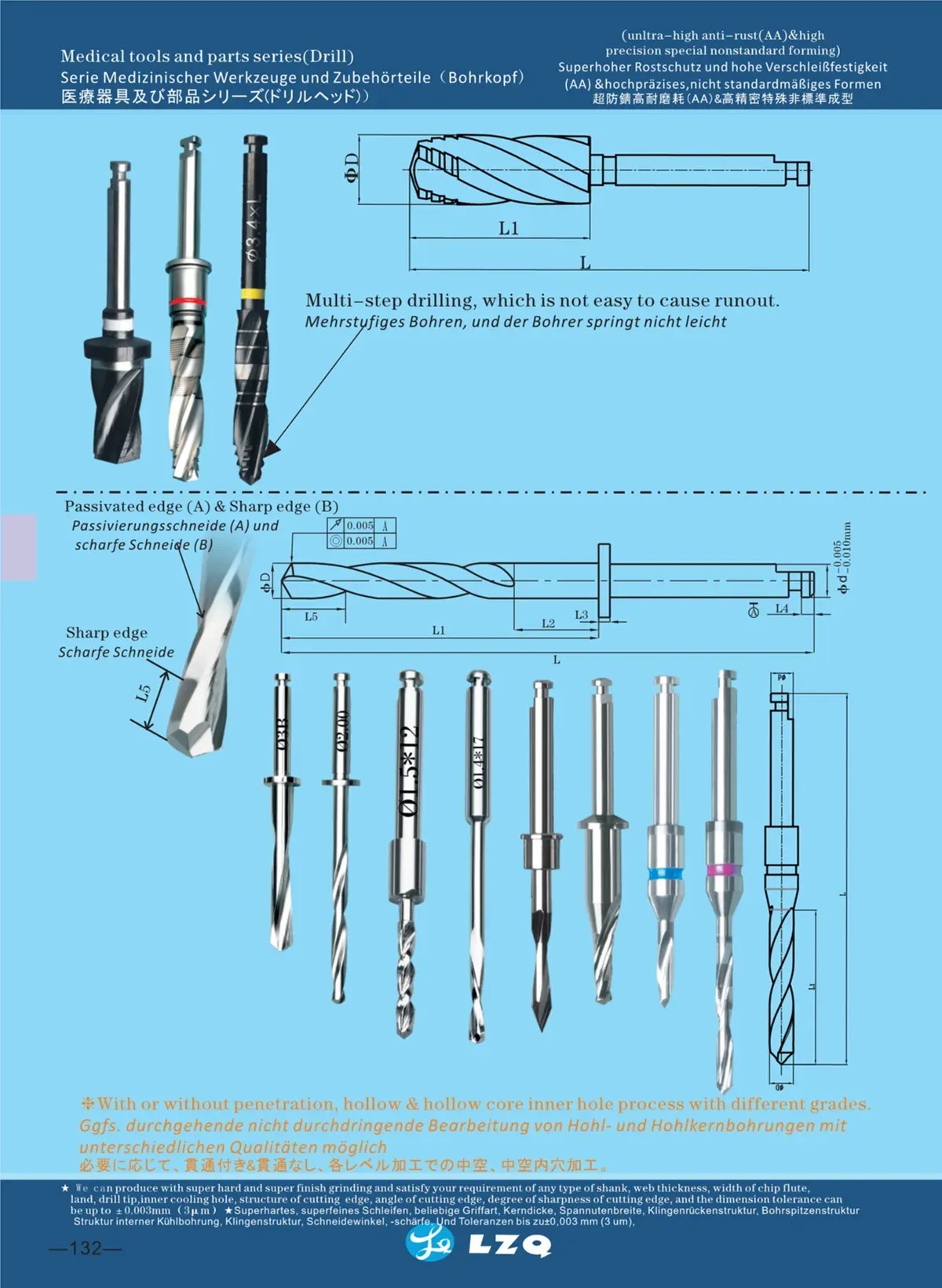

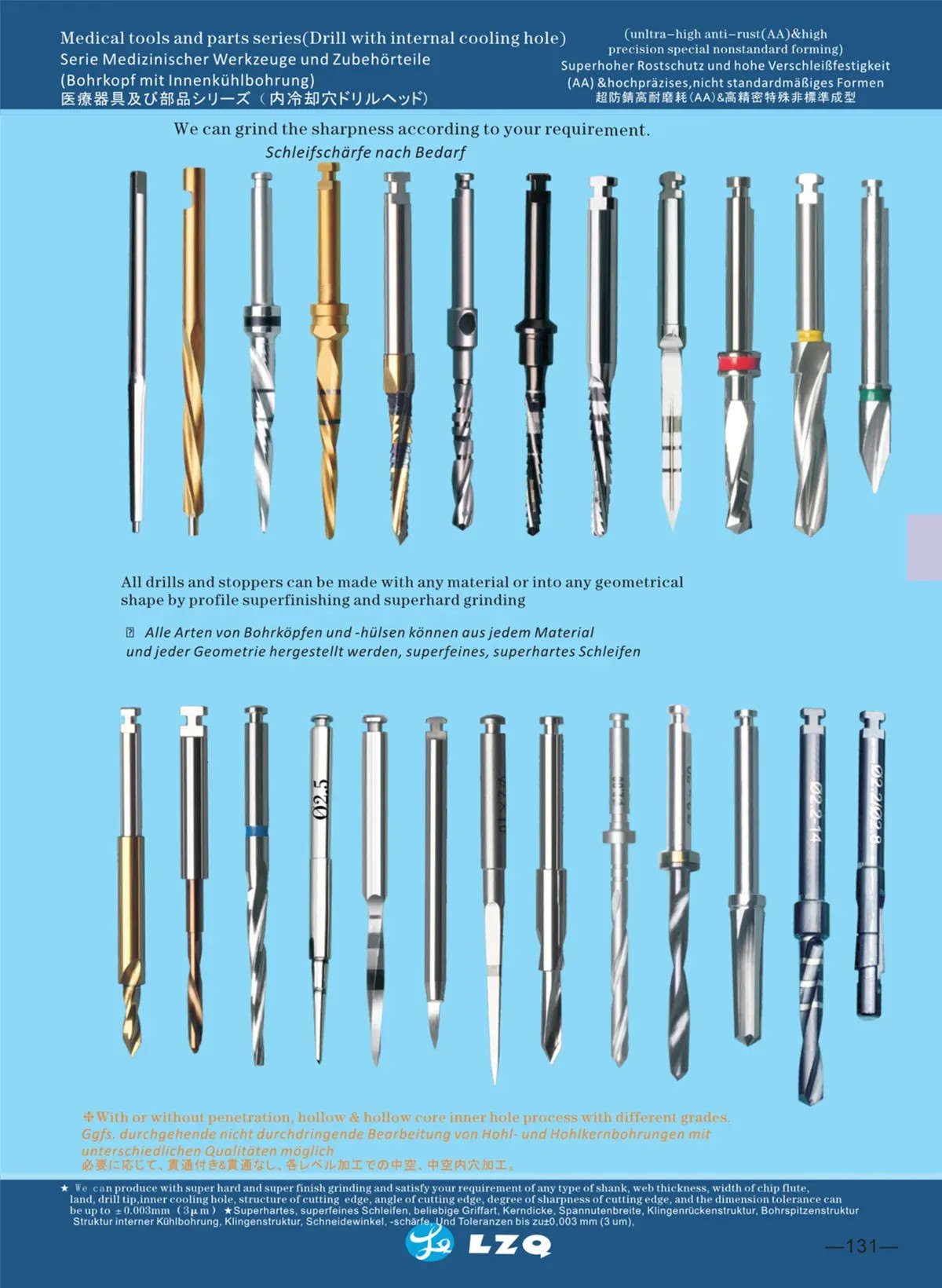

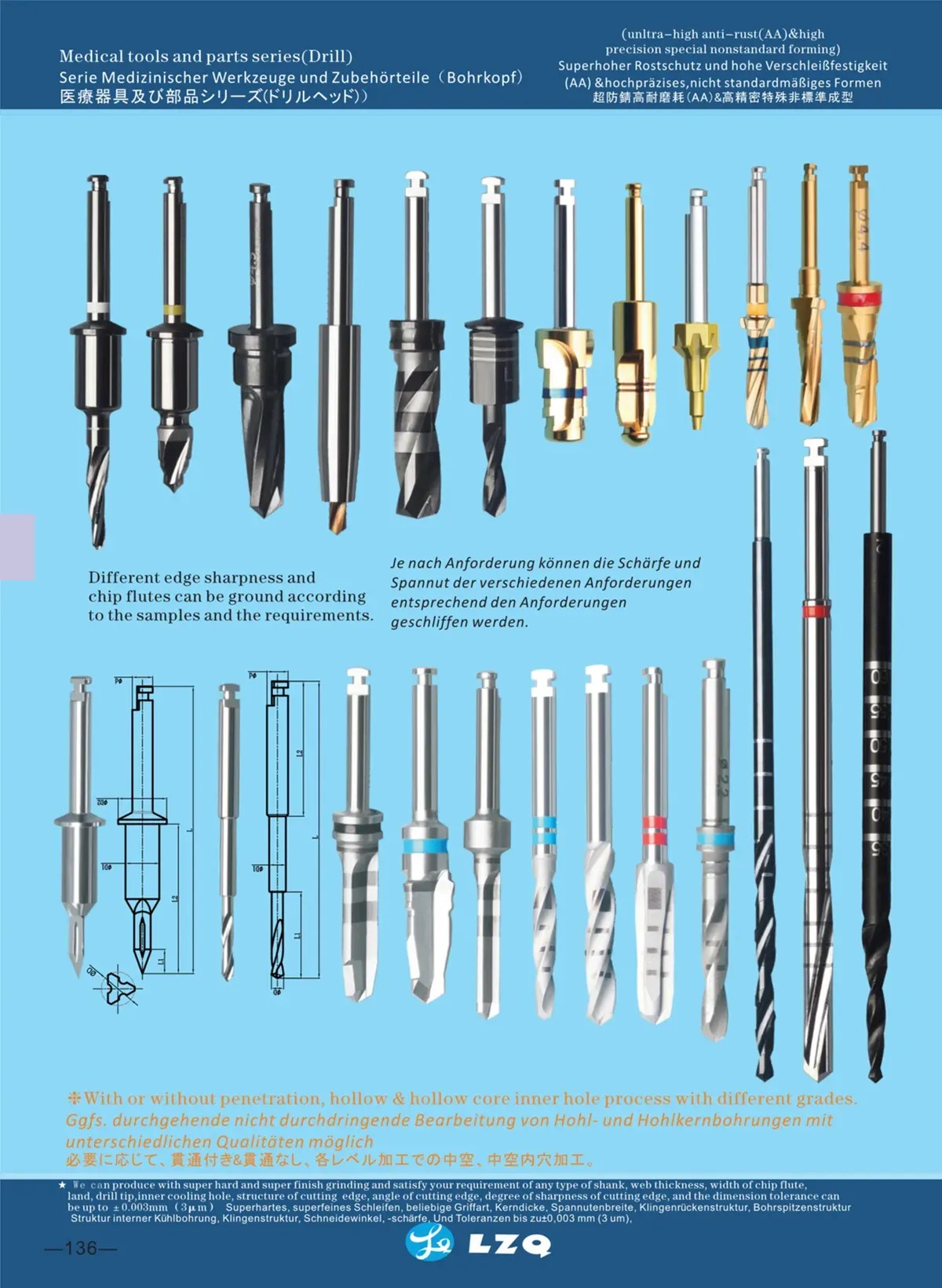

We can produce with super hard and super finish grinding and satisfy your requirement of any type of shank, web thickness, width of chip flute,land, drill tip,inner cooling hole, structure of cutting  edge, angle of cutting edge, degree of sharpness of cutting edge, and the dimension tolerance can be up to ±0.003mm （3μm）

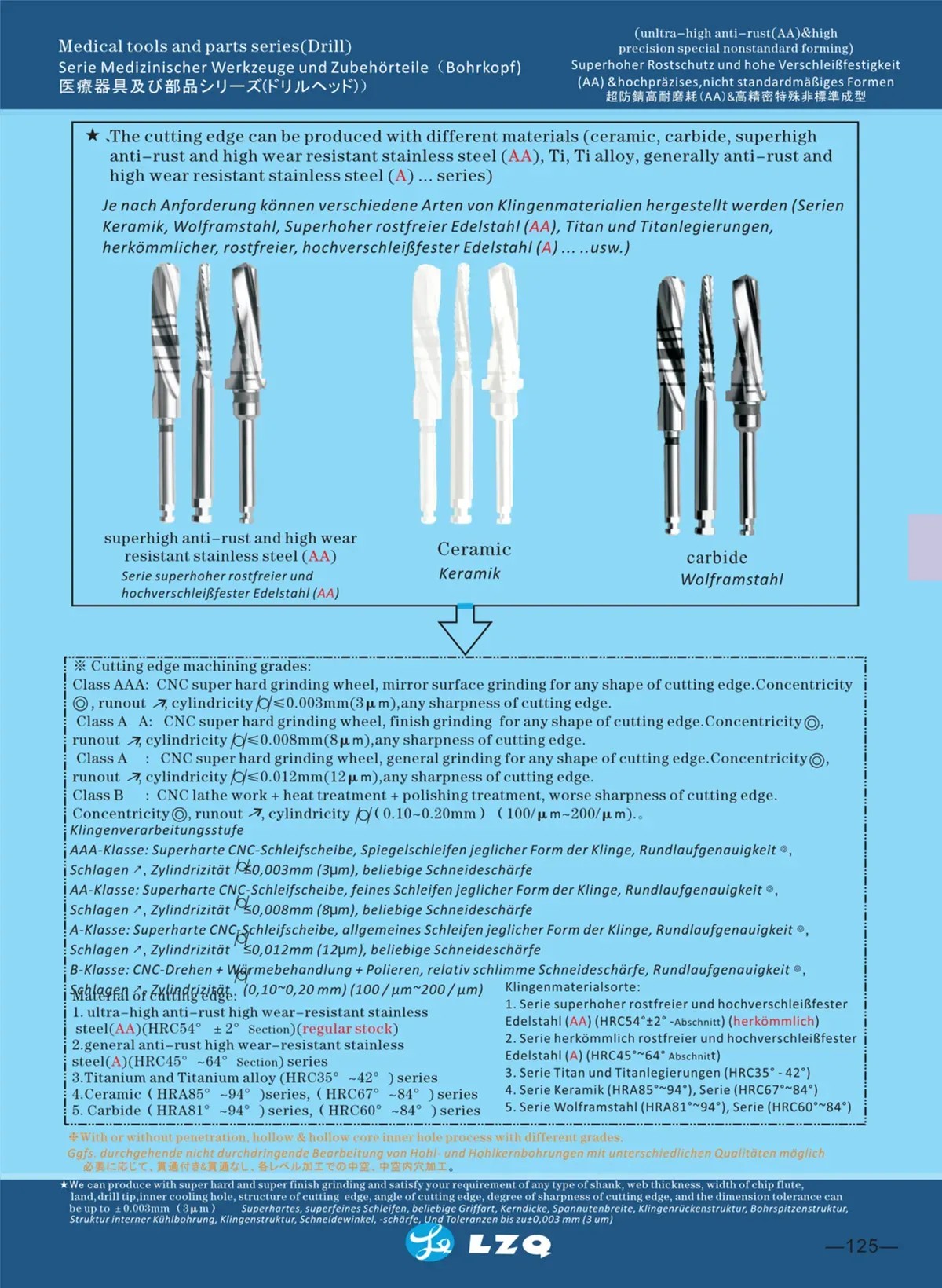

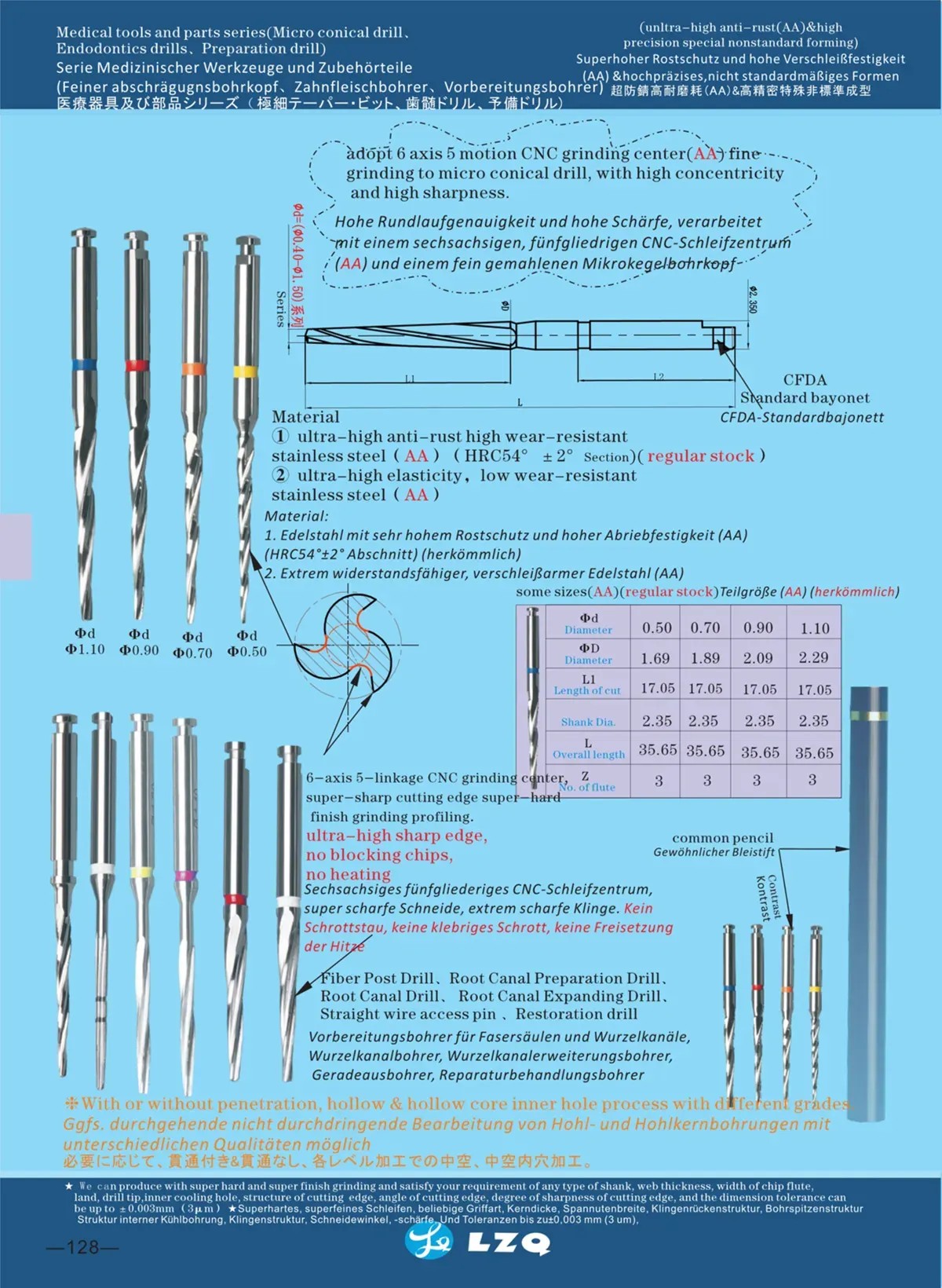

1. ultra-high anti-rust high wear-resistant stainless steel（AA）（HRC52°±2°)( regular stock）

2. ultra-high elasticity，low wear-resistant stainless steel（AA）

Safe Drilling

•A stopper can be attached that makes it easy and safe for even beginners.

•Lateral deletion is possible. Direction can be modified during drilling.

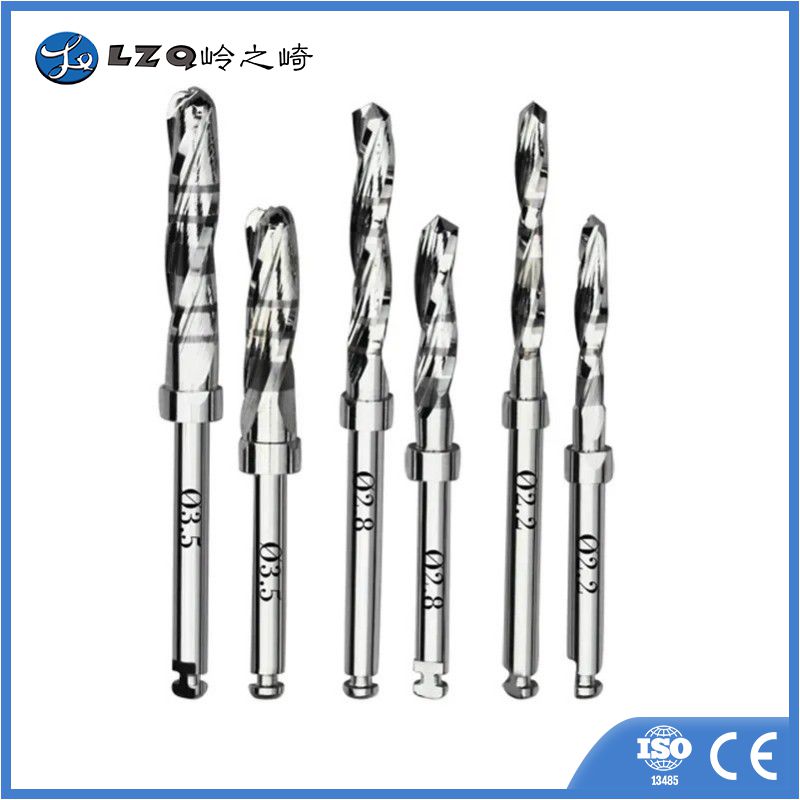

Speedy Drilling

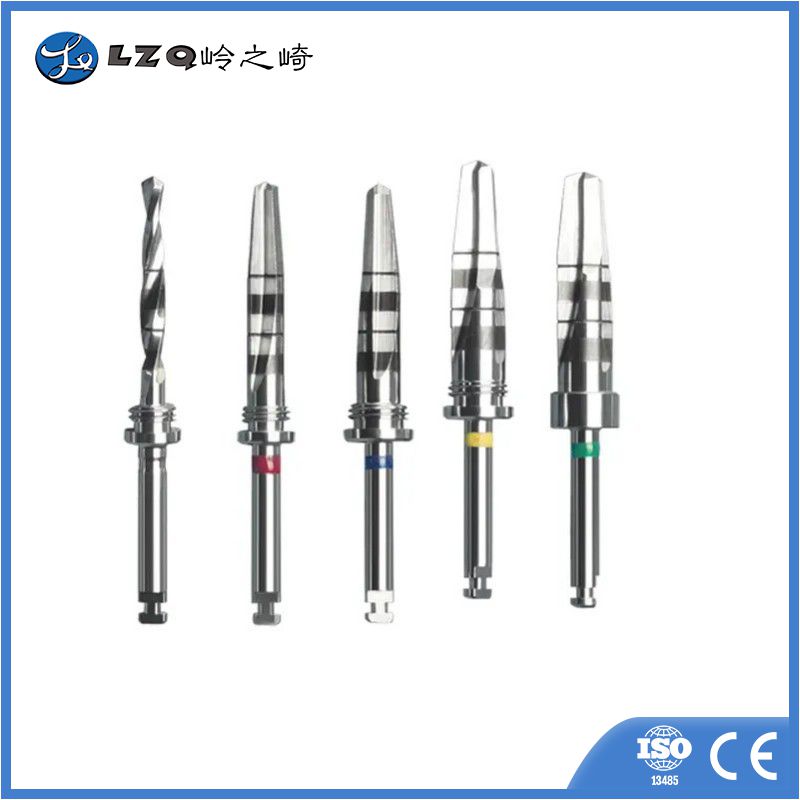

•Tapered drill can finish drilling very quickly as 2/3 of the body in inserted into the tooth without rotating.

We can produce drill guide, adapter and structure of any size, tolerance and shape according to your drawings or samples.

Characteristics

Application domain: For implantology

Material:

(Ultra-high rust-proof stainless steel AA) (hardened HRC54 ° ± 2 °  Section)

Ultra-high anti-rust & high wear-resistant , high hardness, high impact, high toughness stainless steel, with excellent anti-rust capability, corrosion resistance, wear resistance (high hardness) performance and ideal impact resistance.. Its excellent corrosion resistance is comparable to TYPE 304 Stainless steel; and its rust resistance is closer to alloy for surgical implant. Unmarked, with 5% Neutral salt spray test (ASTM B117), it doesn't rust after 1000 hours. Wide range of applications, quite good and stable quality, which can be used to produce extremely complex, high-precision shank shapes and profile ultra-sharp edge structures.

Applied for high-end medical standard:   AMS 5936   .  MMPDS-01  .  ASTM  A693             ASTM  A564   .  ASTM  F899-12

The Vitro (cytotoxicity) test verifies that the material does not have any potential cytotoxicity and therefore can safely contact human tissue, body fluids or blood, and meets all relevant allergy and skin irritation test standards.
