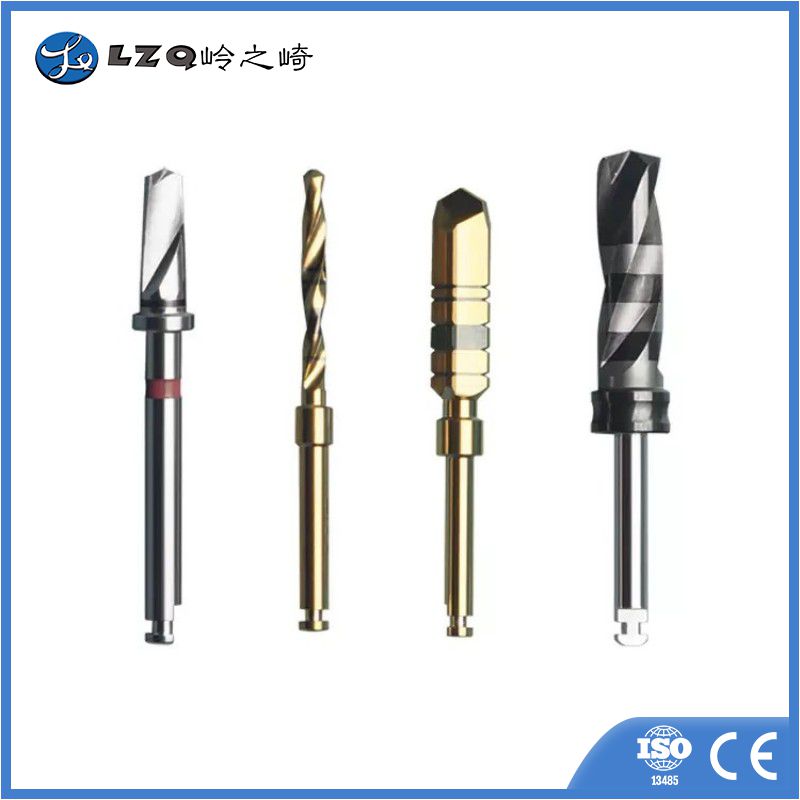

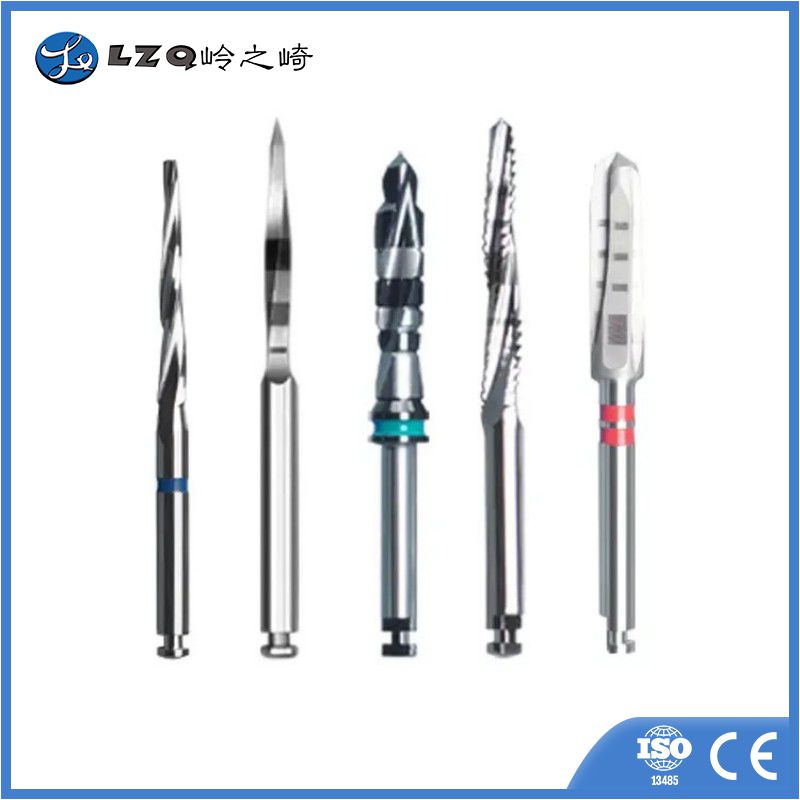

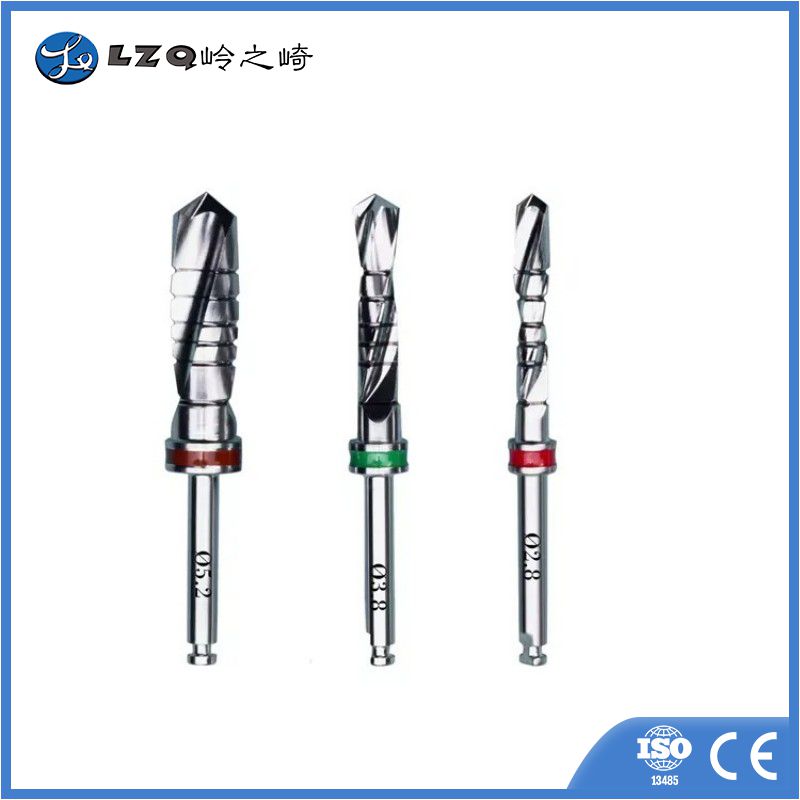

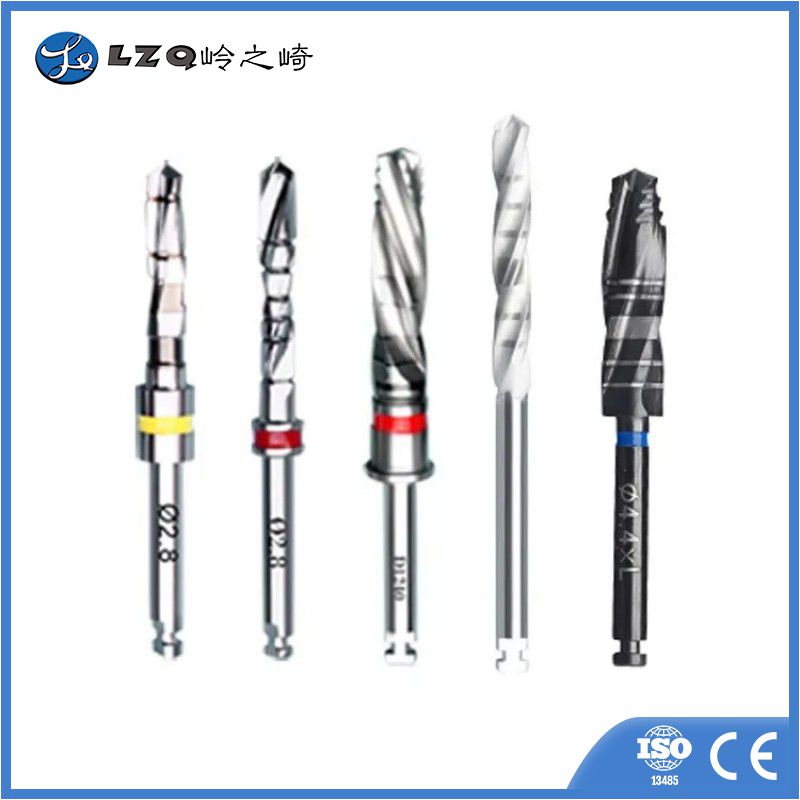

Guiding Implant Drills

We can achieve perfect edge quality and dimensional tolerance up to±0.0005mm (±0.5μm) in the process of micro, ultra-long, ultra-thin, super-abrasive, impact-resistant, high-precision and combined profile products,  and realize high-efficiency and low-cost applications.

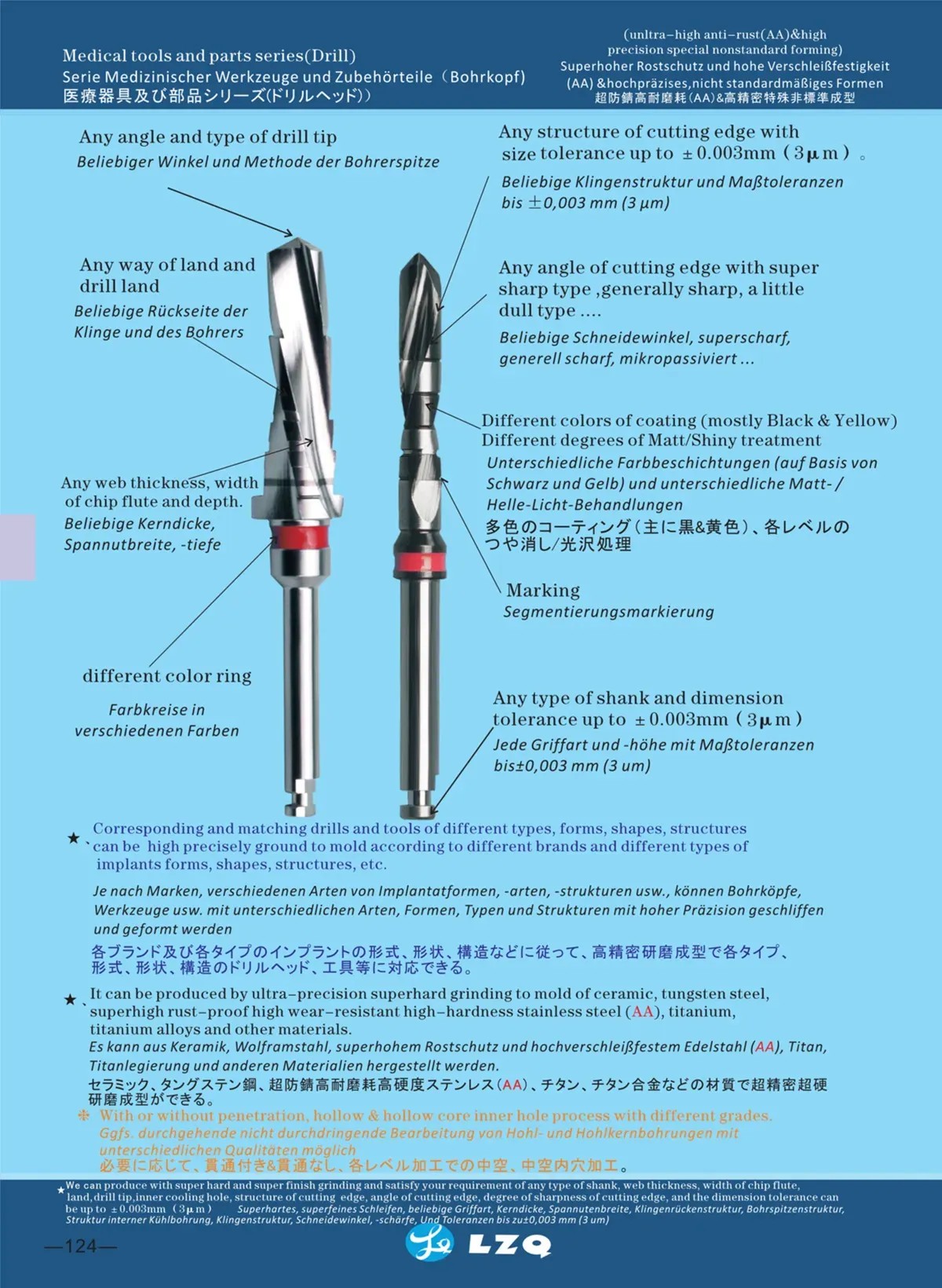

1. Any angle and type of drill tip

2. Any way of land and drill land

3. Any web thickness,width of chip flute and depth

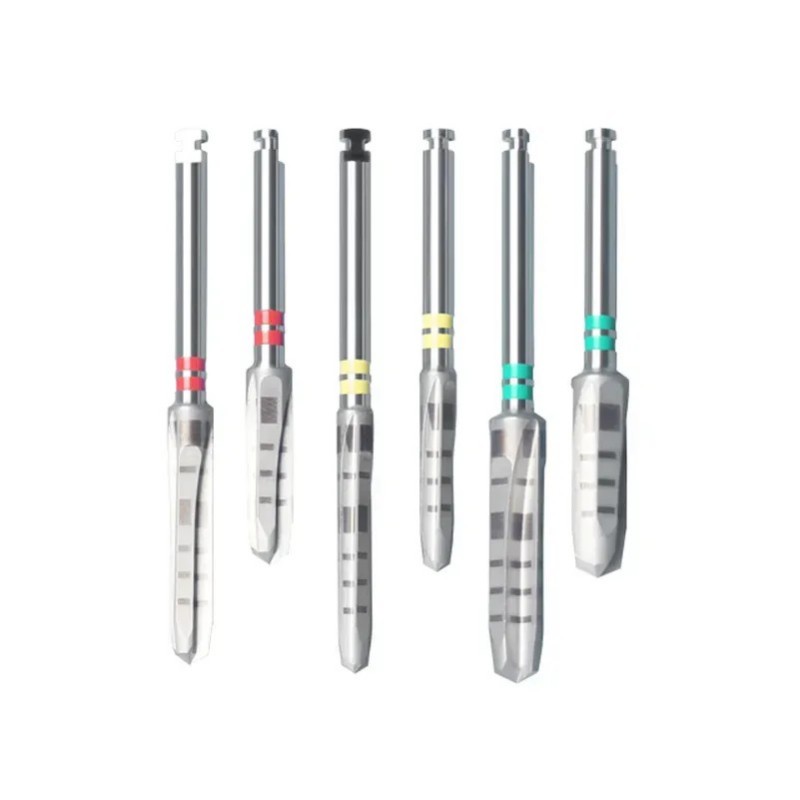

4. Different color ring

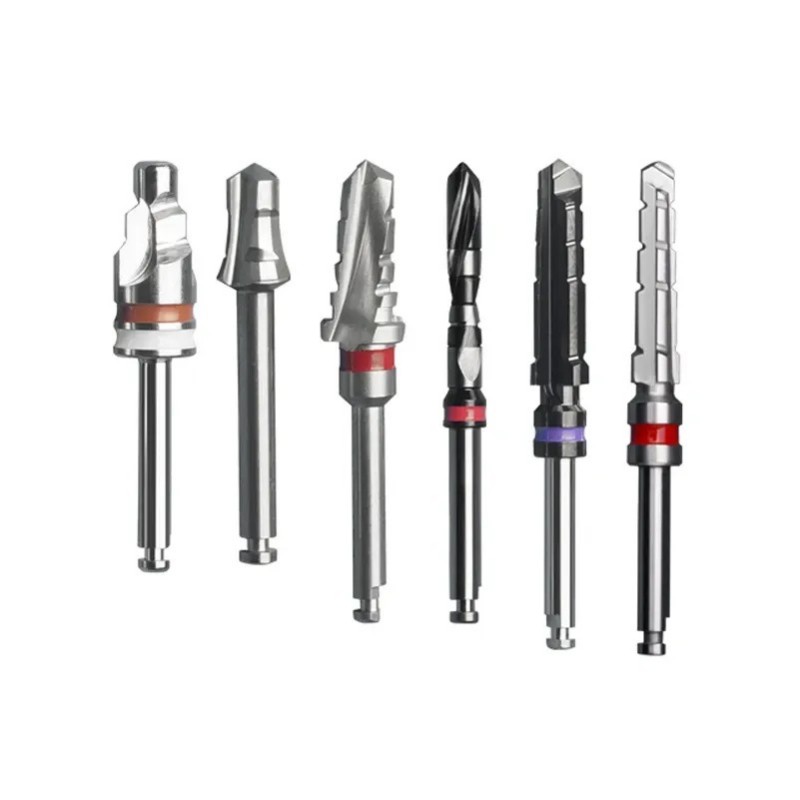

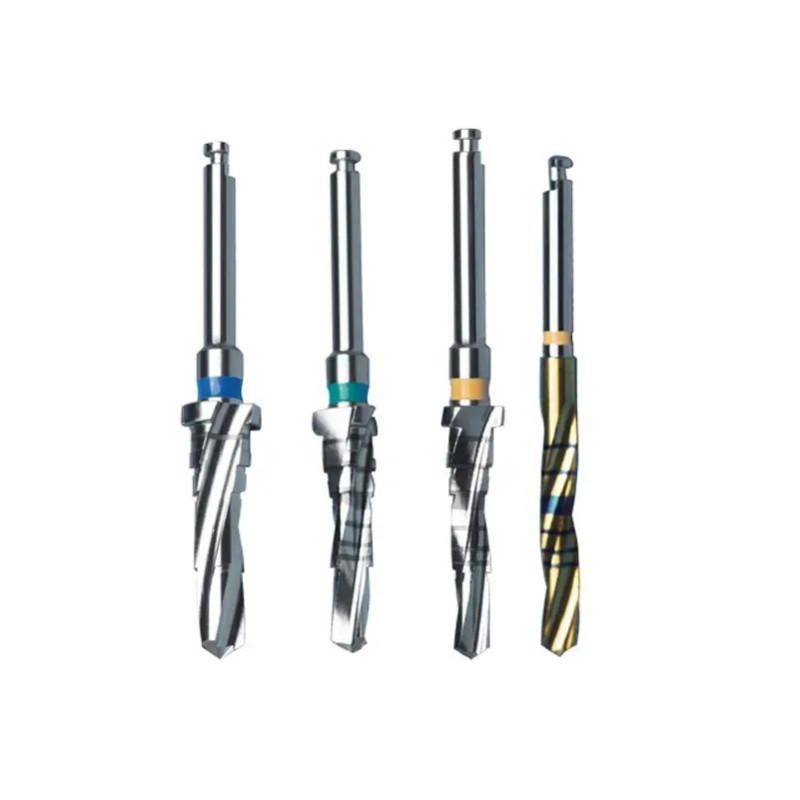

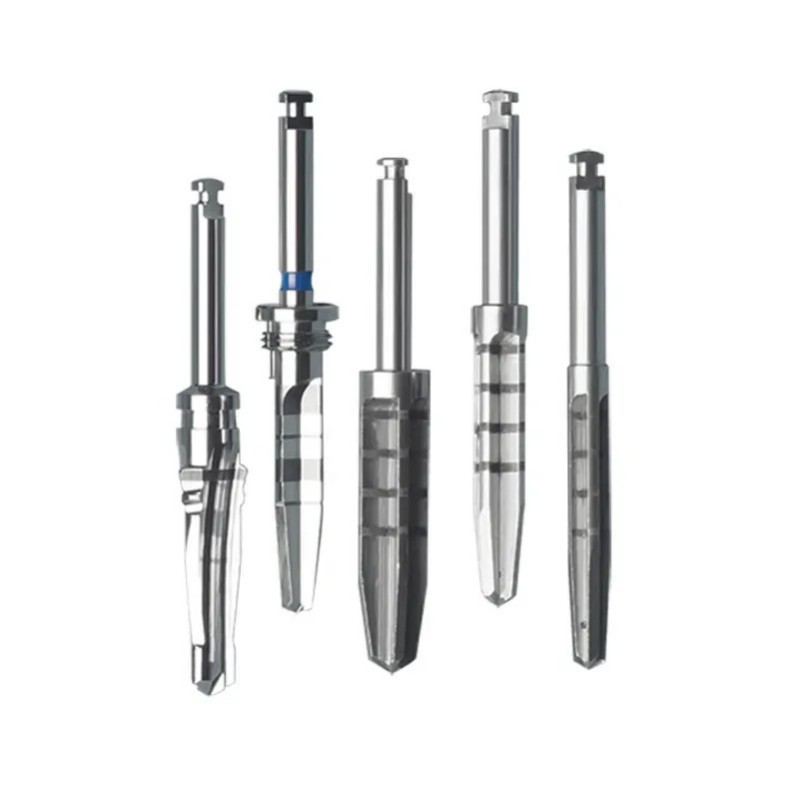

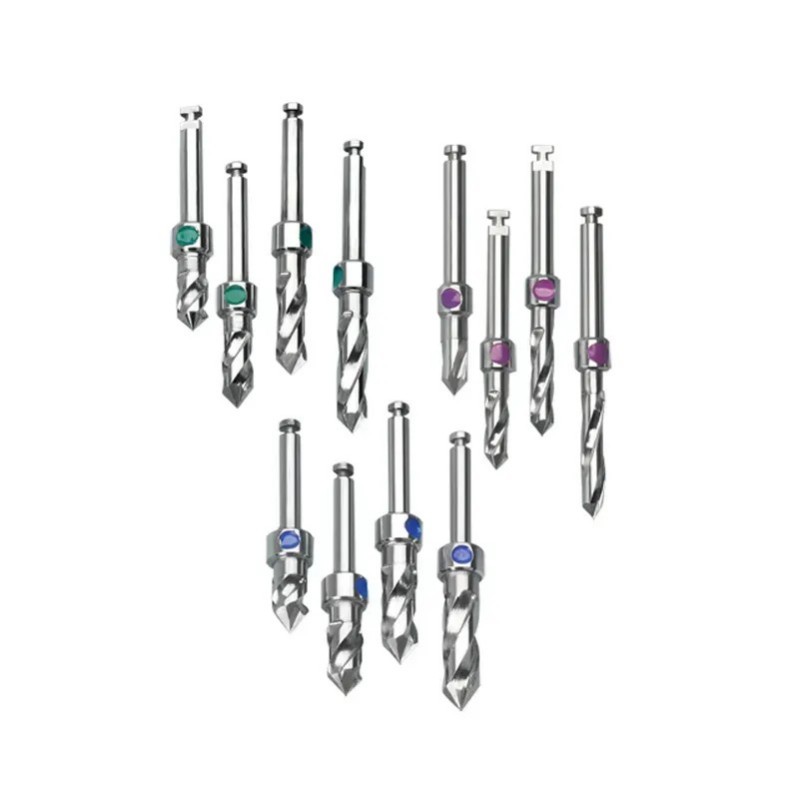

LZQ is an OEM factory that produces a variety of dental implant drills, for example, Guide Drill P108, Profile Drill P144,Cutting Bur/Bone File P190, Drill Stopper P31, Drill Bit 096, Abutment/Transfer P25, Bone Saw P250, etc. We can also produce the complete surgical kits for customers.

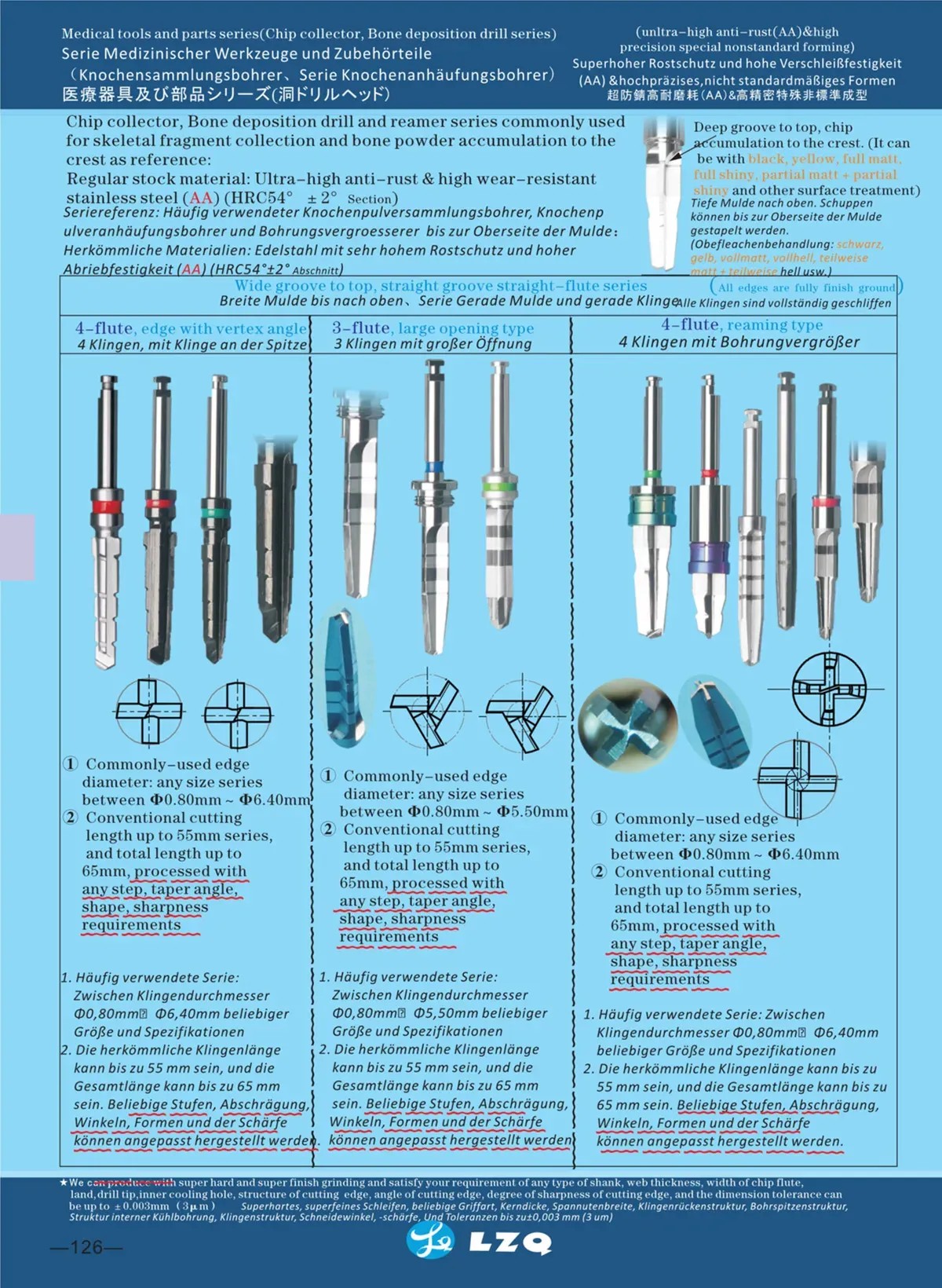

Chip collector, Bone deposition drill and reamer series commonly used for skeletal fragment collection and bone powder accumulation to the crest as reference:

Regular stock material: Ultra-high anti-rust & high wear-resistant stainless steel (AA)(HRC54°±2°Section)

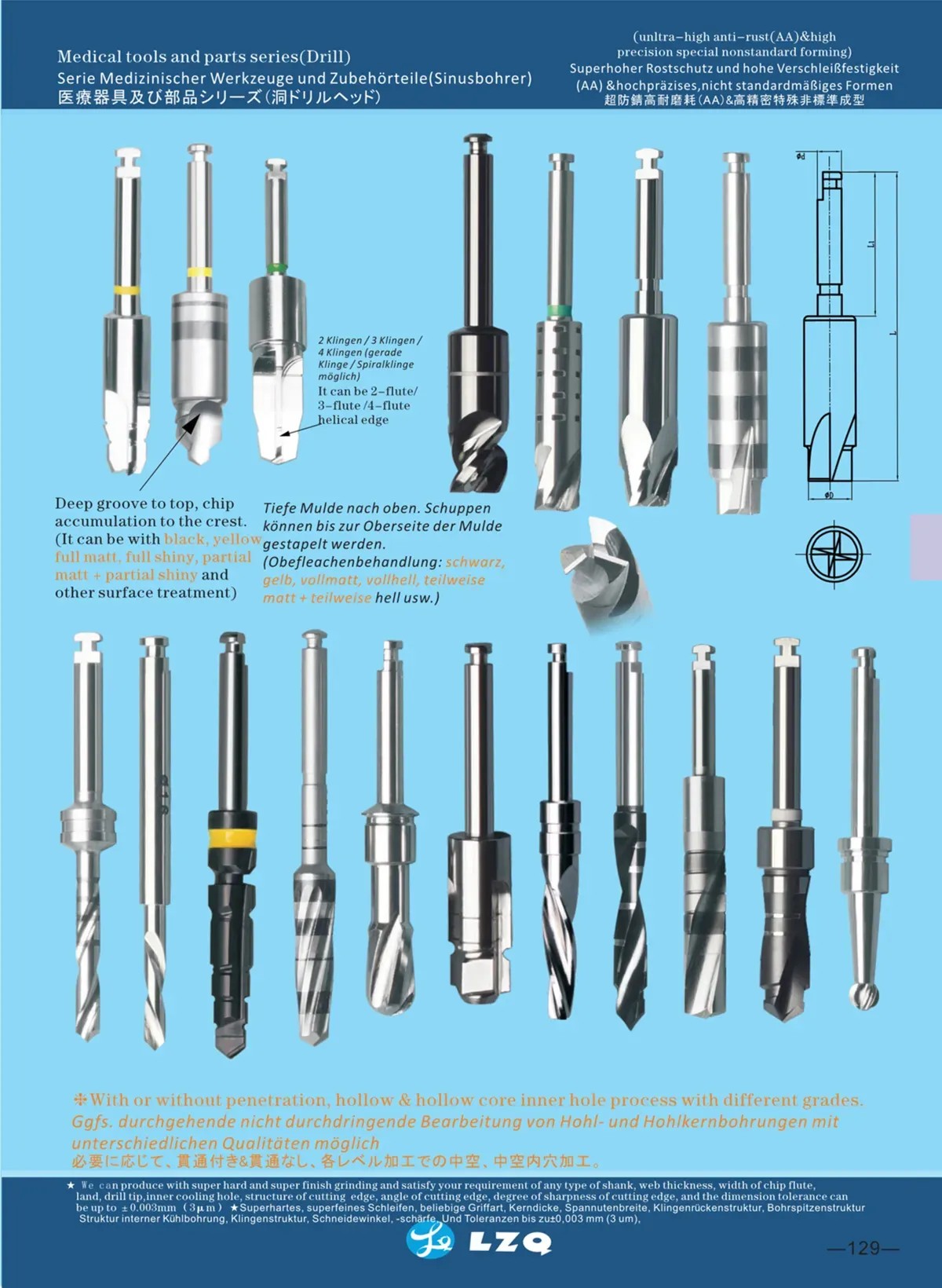

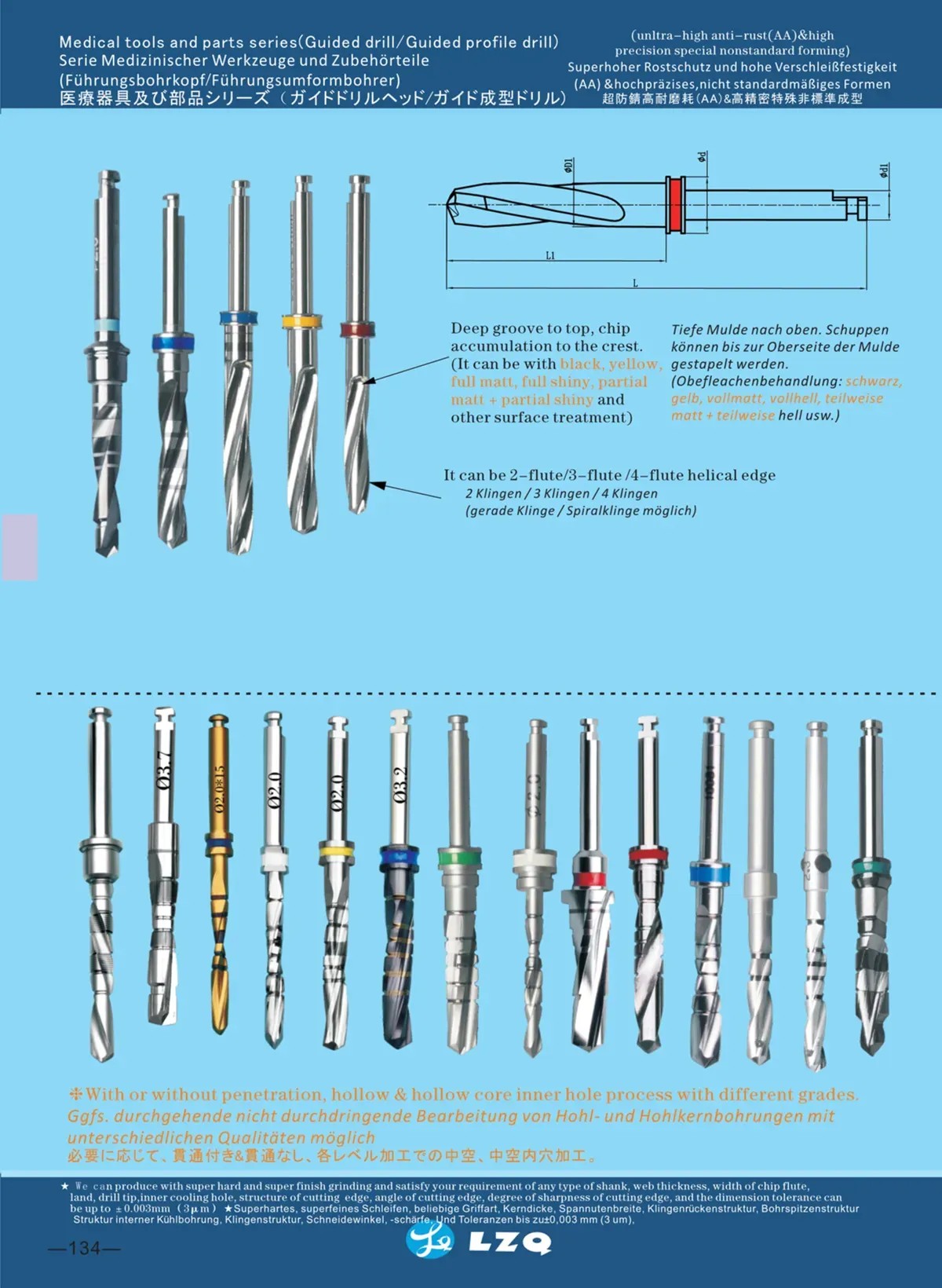

Deep groove to top, chip accumulation to the crest. (It can be with black, yellow, full matt, full shiny, partial matt + partial shiny and other surface treatment)

1.  Commonly-used edge diameter: any size series between Φ0.80mm～Φ7.95mm

2.  Conventional cutting length up to 55mm series,and total length up to 65mm, processed with any step, taper angle, shape, sharpness requirements

Application domain:   For implantology

Material:

(Ultra-high rust-proof stainless steel AA) (hardened HRC54 ° ± 2 °  Section)

Ultra-high anti-rust & high wear-resistant , high hardness, high impact, high toughness stainless steel, with excellent anti-rust capability, corrosion resistance, wear resistance (high hardness) performance and ideal impact resistance.. Its excellent corrosion resistance is comparable to TYPE 304 Stainless steel; and its rust resistance is closer to alloy for surgical implant. Unmarked, with 5% Neutral salt spray test (ASTM B117), it doesn't rust after 1000 hours. Wide range of applications, quite good and stable quality, which can be used to produce extremely complex, high-precision shank shapes and profile ultra-sharp edge structures.

Applied for high-end medical standard:   AMS 5936   .  MMPDS-01  .  ASTM  A693             ASTM  A564   .  ASTM  F899-12

The Vitro (cytotoxicity) test verifies that the material does not have any potential cytotoxicity and therefore can safely contact human tissue, body fluids or blood, and meets all relevant allergy and skin irritation test standards.
