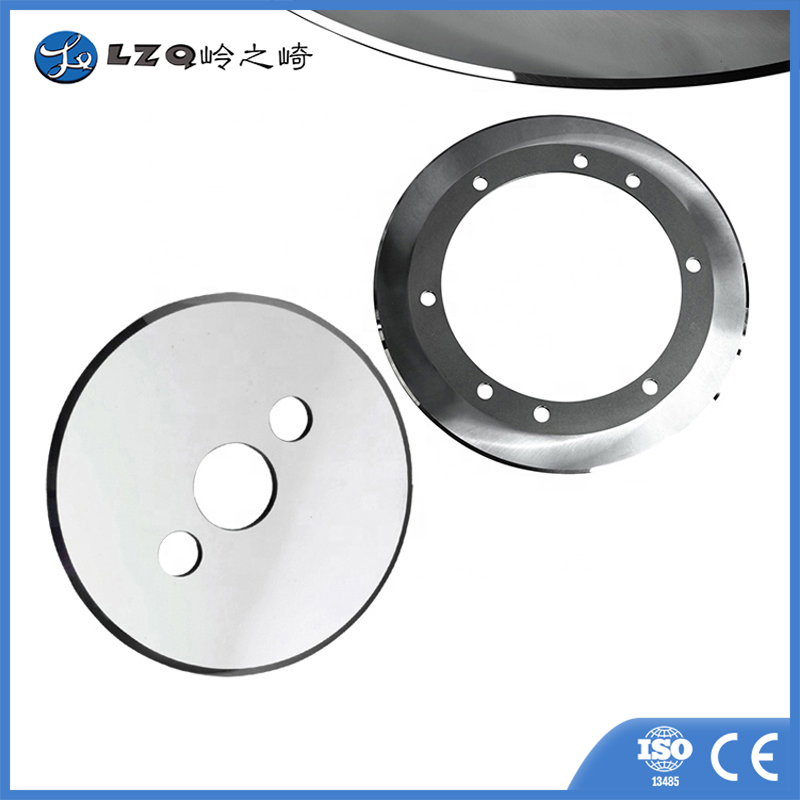

Rubber Tyre Circular blade / Rubber Tyre Circular Knife / Rubber Tyre Disk blade

According to drawings or samples, we can customize CNC precision knife moulds,forming fixtures,brazing fixtures,wear-resistant parts high-precision accessories by(3DX technology)profile,super-hard, super-fine grinding with ceramics,tungsten steel,diamond,ultra-high anti-rust high-hardness high-toughness stainless steel titanium alloy, titanium and other series.

Our products are able to process various materials whatever are micro-thin,super-long, super-thin, super-wear-resistant,impact-resistanttop complex,and combined profile, will all provided with perfect cutting quality and tolerance ofdimension fine to 士0.0005mm(士0.5μm),andahigh-efficiency &low-cost application we deliver to you!

(Super high wear-resistant/super sharp/stainless)

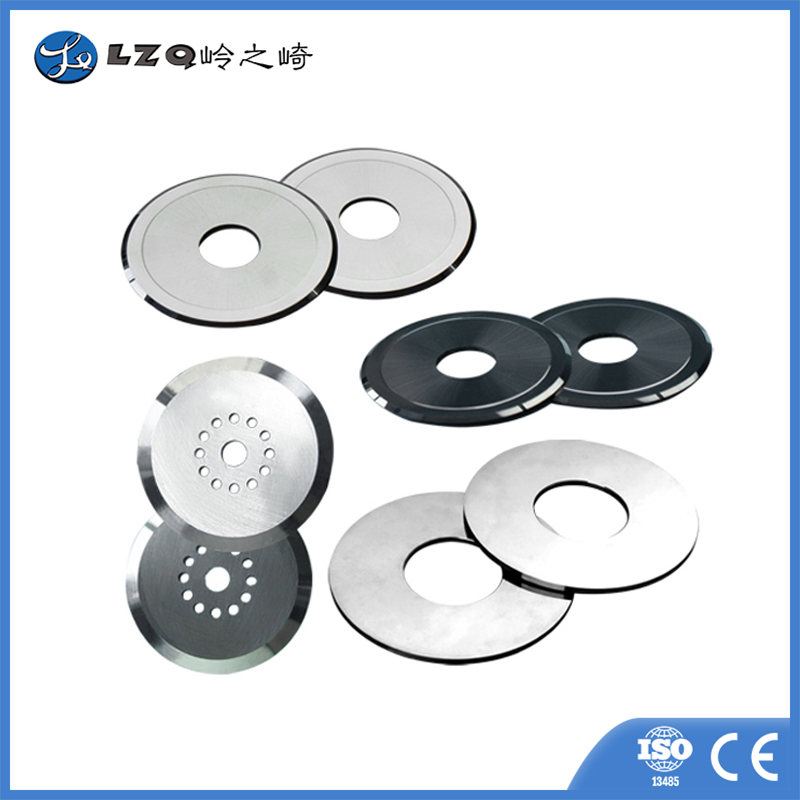

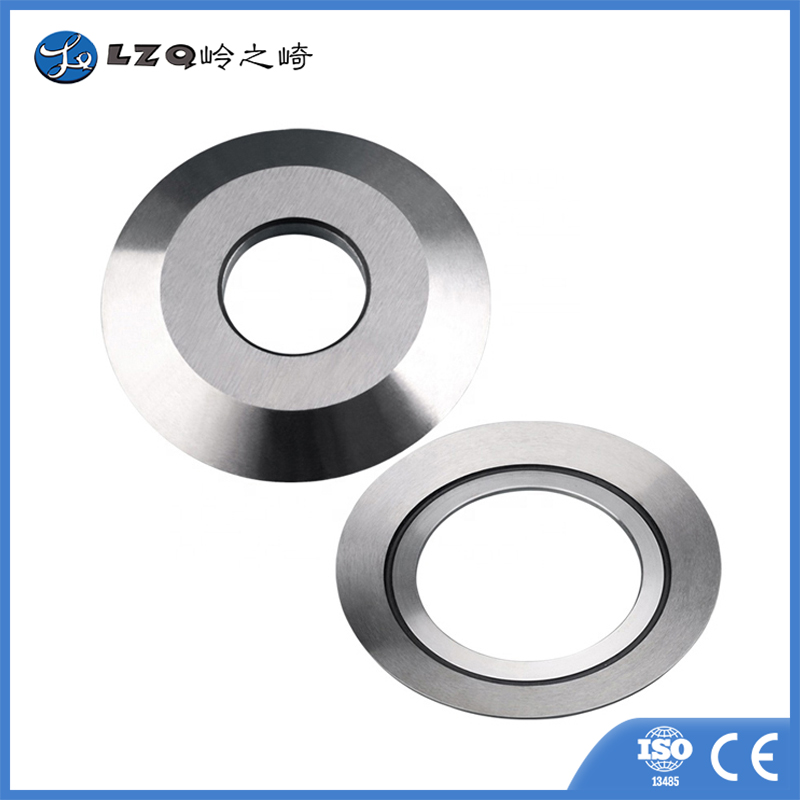

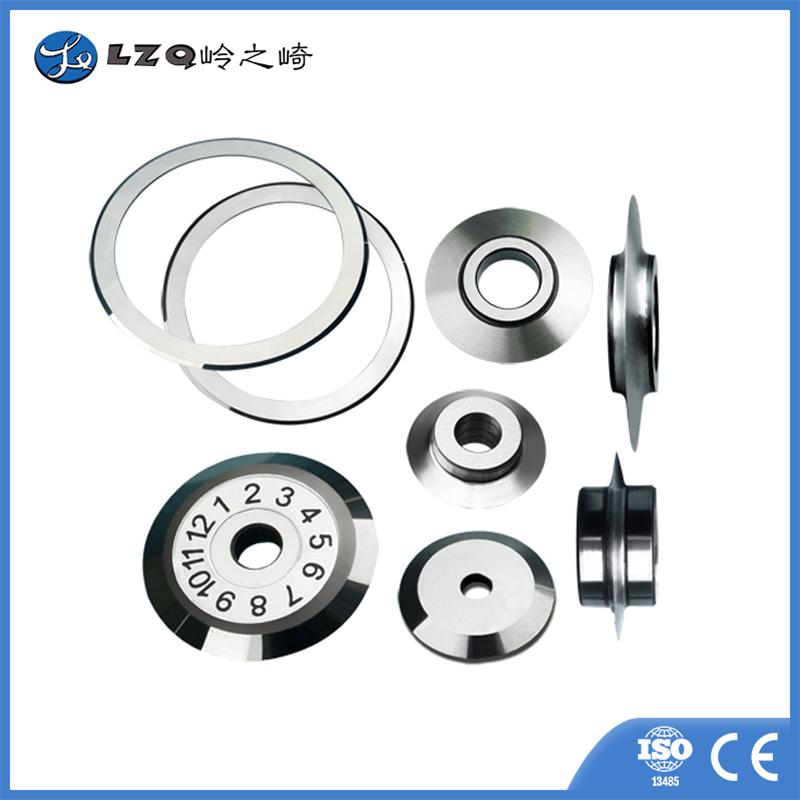

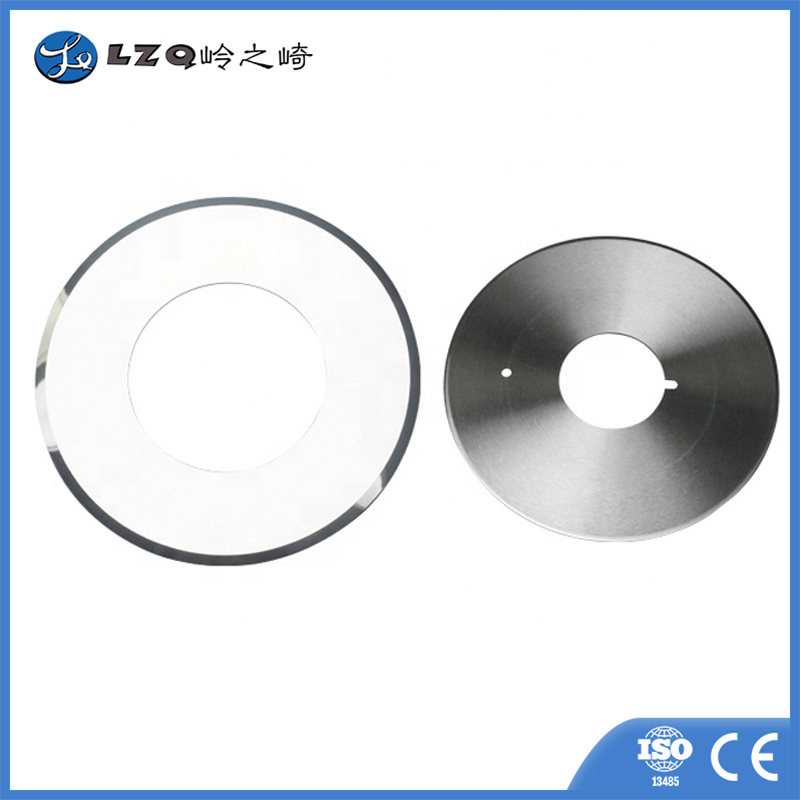

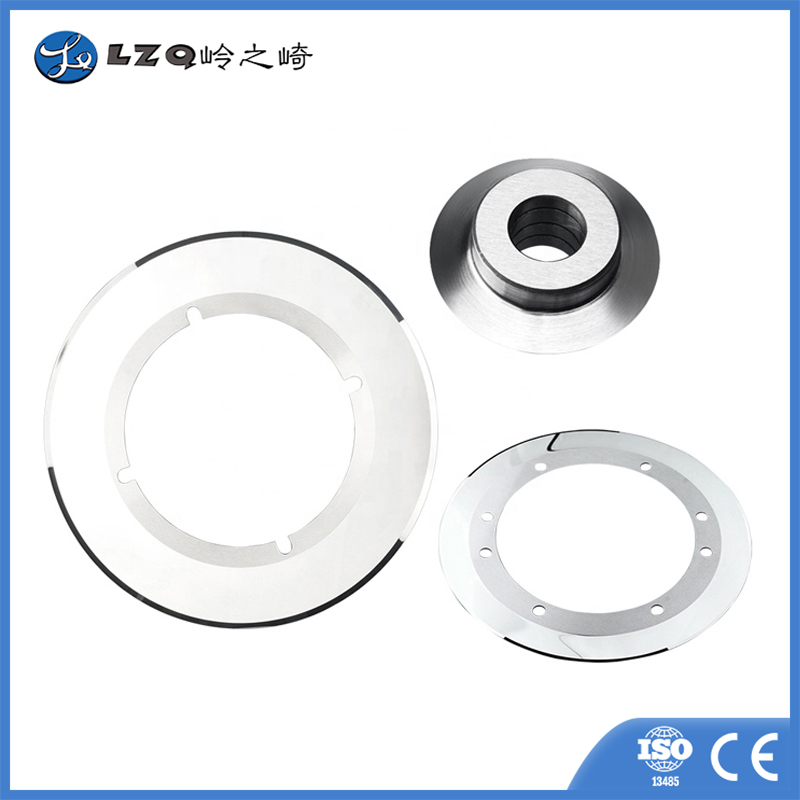

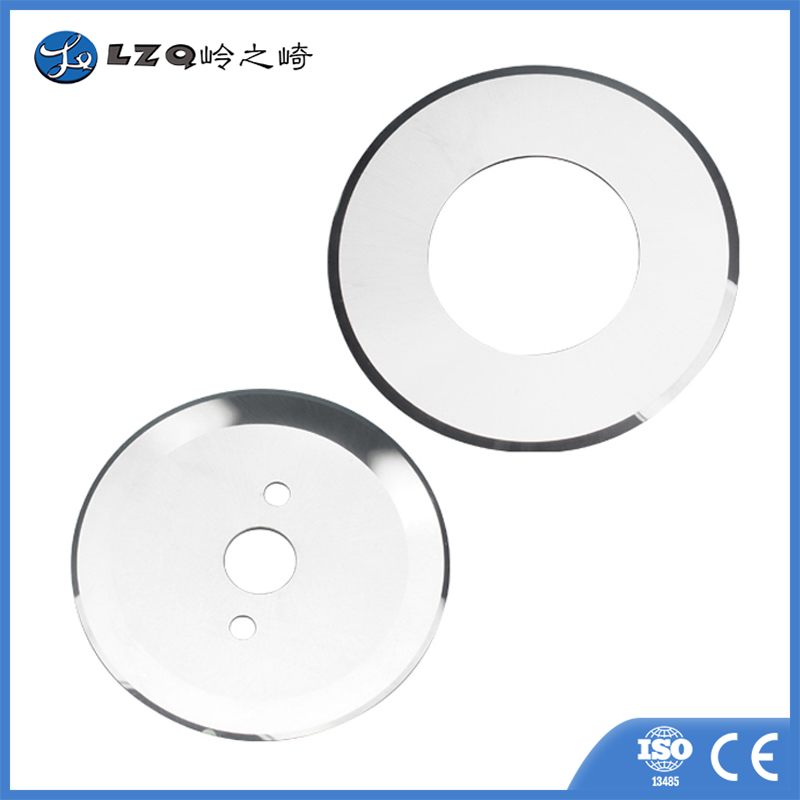

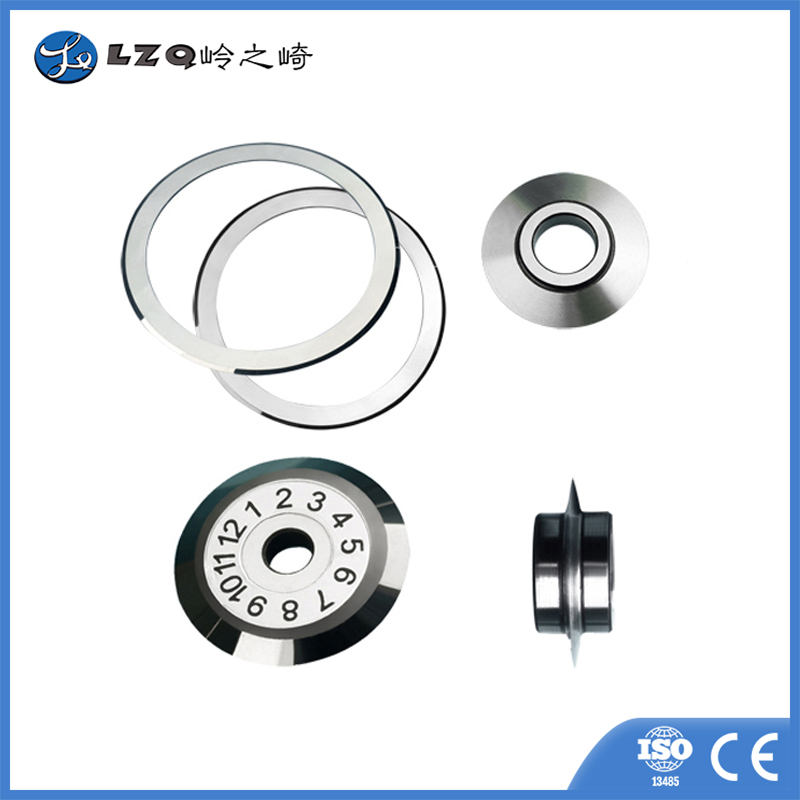

We can produce profile circular cutters of multi-angle,sharpness, thickness, inner and out diameter, material, and profile according to drawings, samples.

round cut blades ( glass, glass pipe, LD, quartz etc.) are used to cut hard and brittle material ultra-high wear-resistant materials. The blade is hard and wear-resistant and sharp（in the microscopic view, the blade is sharp and without gaps. It will be easy to leave traces when you draw on the glass or quartz tube and not slip）Optional diamond steel has a very high anti-abrasion properties, corresponding general tungsten steel, it has 3 or 6 times life.( Can produce any products with requirements of diameter, inner diameter, thickness, dimensional tolerances and with an unparalleled durability and sharpness) we use Tungsten steel material of Germany and equipment in Fuji of Japanese to preciously grinding and molding.

We adopt various business cooperation mode either royalty or part-time, and media promotion at different time period, as well as technical support and wholesale to middle-scale or large-scale enterprises or agency, even OEM processing as per customers' requirements. From high-class products (via 6-axis/ 7-axis Blocking CNC-machine Tool (Class-AAA))to medium-class products (via 3-axis/ 4-axis Blocking CNC-machine Tool (Class-D)), different quality and price, our reliable products can replace to first-class products, and we are professional in wholesale, R&D, producing & processing, as well as design revision according to client's designs and samples of special, non-standard, abnormal shape and new products with high cost-performance ratio, also our on-demand service will decrease your comprehensive cost greatly!

Referencing to the page footer, please provide your sample and specify the detailed specification, material type, size tolerance, drawing of semi-product and finished product, applied equipment, equipment value (RMB, to judge its market value  is rigid or floating), monthly consumed quantity, type of original product and its deficiency, when you make inquiry. What is the processed material and its HRC? Work piece drawing and notes, and please supply us new and old bestperformed samples.

Samples: Is it easy to blunt or break or other problems?

LZQ is possessed of cutting-edge & comprehensive production system, as well as rich producing & machining capability with different precision technology, so as to realize high efficiency application.

HRF 10 (For super high wear-resistant):

Ultra micro-grain quality carbide is ultra high wear resistant, but less impact-resistant.It is applied in mid and low speed light cutting of various materials that require ultra high wear resistance. Generally, it is applied in good work condition, stable cutting, good part fixture and continuous light-duty machining. Comparing with general tungsten steel, it has 3~5 times more life time. Conforming to ISO K10~K25/P10~P25.

ASP60A :

imported ultra high wear-resistant high-grade high cobalt powder steel, quenched:HRC70°±2°, with excellent wear resistance and impact resistance. Comparing with HSSE\HSS-AL and HSSCo, it has 4~8 times lifetime, and can guarantee uniformity and conformity rate of machined products. It is often applied in general equipment for machining various materials including Ni\Cr\Mo\Si\Ti) that are hard to machine like high alloy\heat-resistant alloy\cast iron of nickel-vanadium-titanium alloy\stainless steel. It is excellent machining tool before heat treatment. It has excellent high temperature machining and comprehensive performance, and allows higher cutting speed. The higher the hardness of machined materials, the more remarkable the effect. Because its roughness is not so good, it is not suitable for discontinuous cutting or for using under processing system of insufficient rigidity, otherwise, cutter will be hit or chipping will happen.

VRA201:

Imported ultra micro-grain diamond tungsten steel, with excellent impact-resistance and general wear-resistance. Generally applied in worse or general equipment to machine materials of lower hardness （HRC≤25°）, discontinuous cutting and worse part fixture. Conforming to ISO K25, can replace machining of materials like M42, ASP60, MPM, HSSCo10 etc, and can get 4-6 times lifetime, it has higher performance/price ration. Comparing with SKH51, it has 15-25 times lifetime and durability.

MR11: (For high wear-resistant application)

Ultra micro-grain quality carbide has property of excellent wear resistance and ideal impact resistance. It is applied in mid, high speed intermediate cutting machining of various materials that HRC 28°～48°. It is an ideal machining tooling for finish machining and material tempering, and it is extensively applied. Comparing with general tungsten steel, it has 2~3 times more lifetime. Generally it is applied in good and stable work conditions, good part fixture and continuous mid, high speed light-duty cutting. After being TiALN coated, it has better performance, can machine various materials of HRC 60° Conforming to ISO K10~K30/P10~P30. It is often applied in CNC equipment to machine various hard-machining materials (containing Ni, Cr, Mo, Si, Ti etc.) like high temperature alloys, heat-resistant alloys, Ni-V-Ti alloys, cast iron, stainless steel etc., ultra excellent machining tools before heat-treatment and after tempering. High temperature machining and integrated property is good, allowing highest cutting speed (generally linear speed is above 120M) and with low feed requirement. The higher hardness of the machining material, the better performance. Due to its bad toughness, it is not applicable for discontinuous cutting or for conditions in which process system's rigidity is not sufficient and there is chattering, jumping, otherwise, the blade will be hit or chipping will happen.
