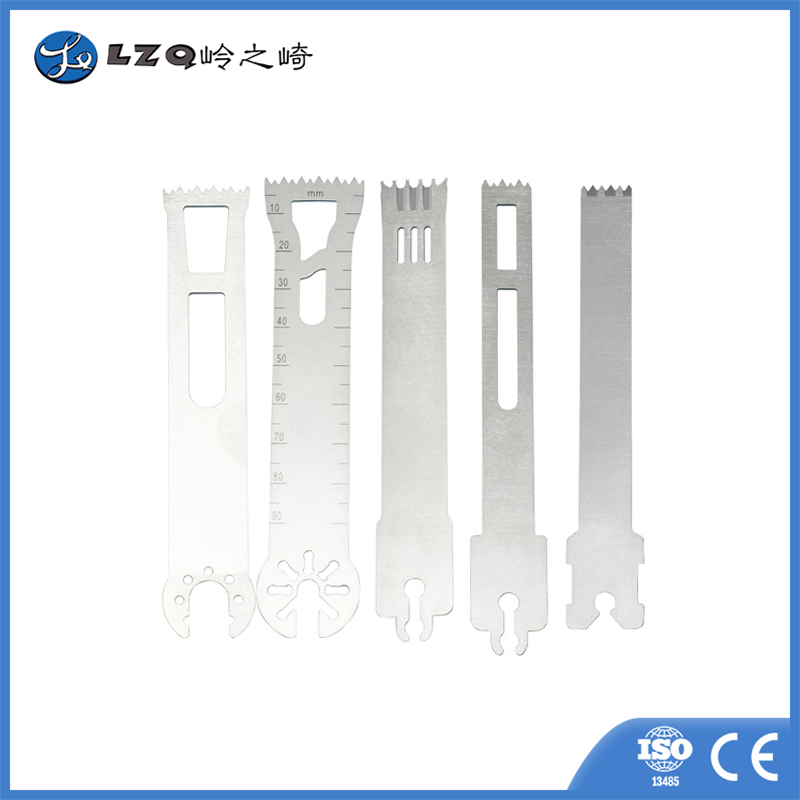

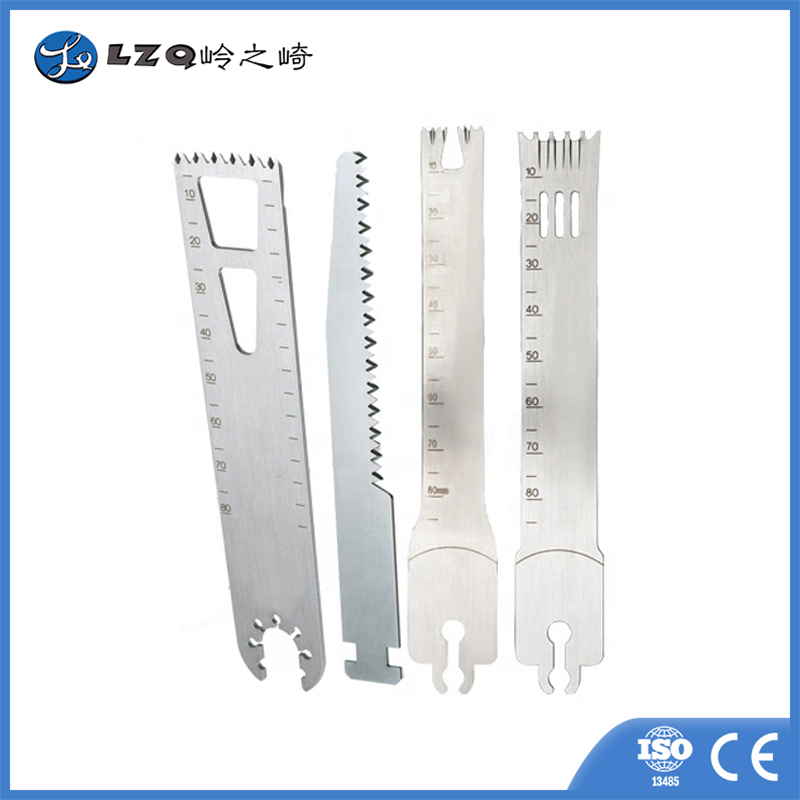

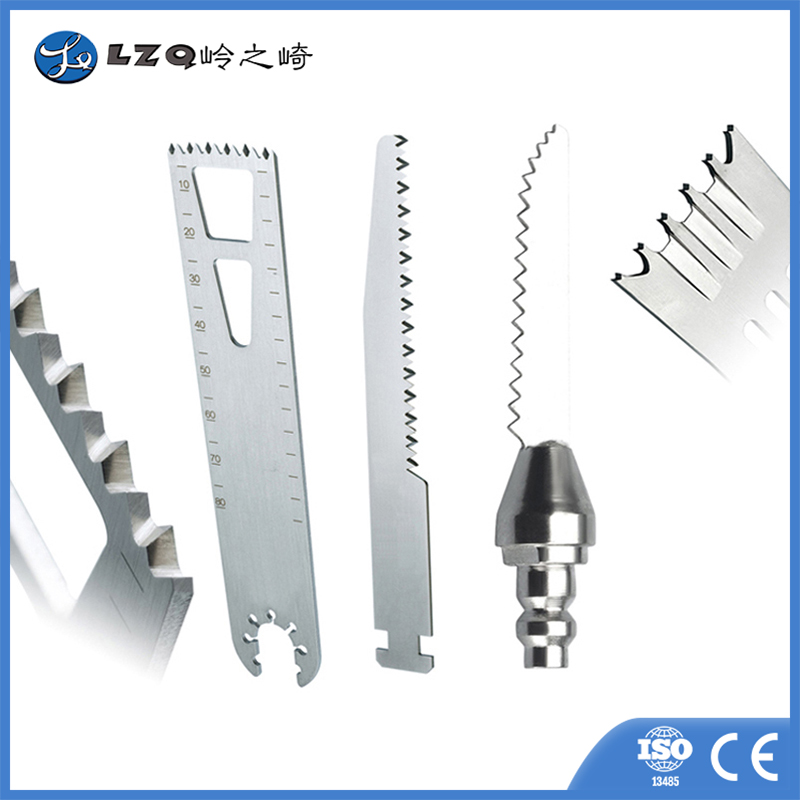

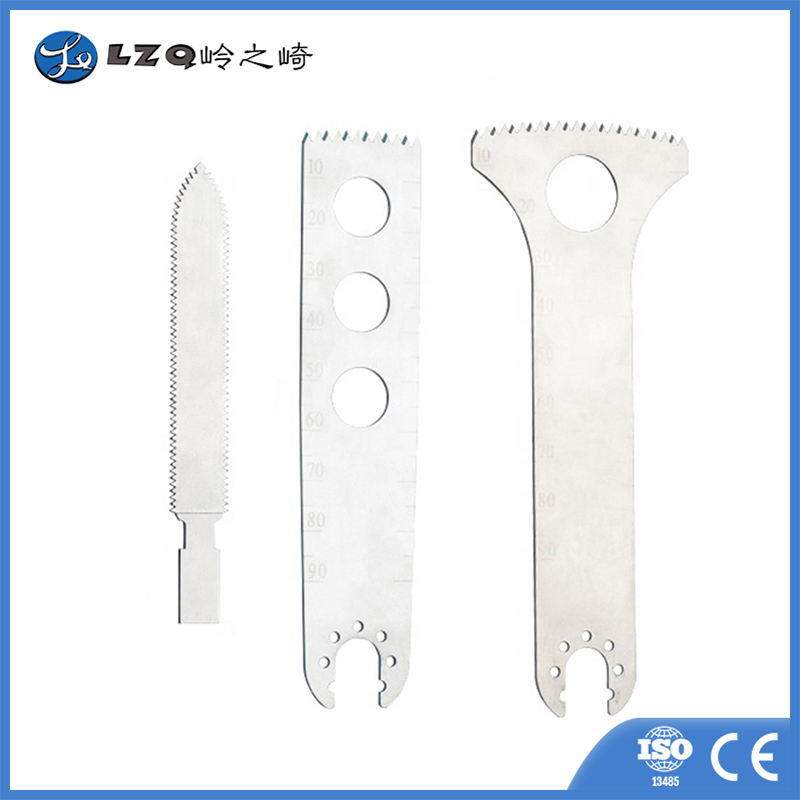

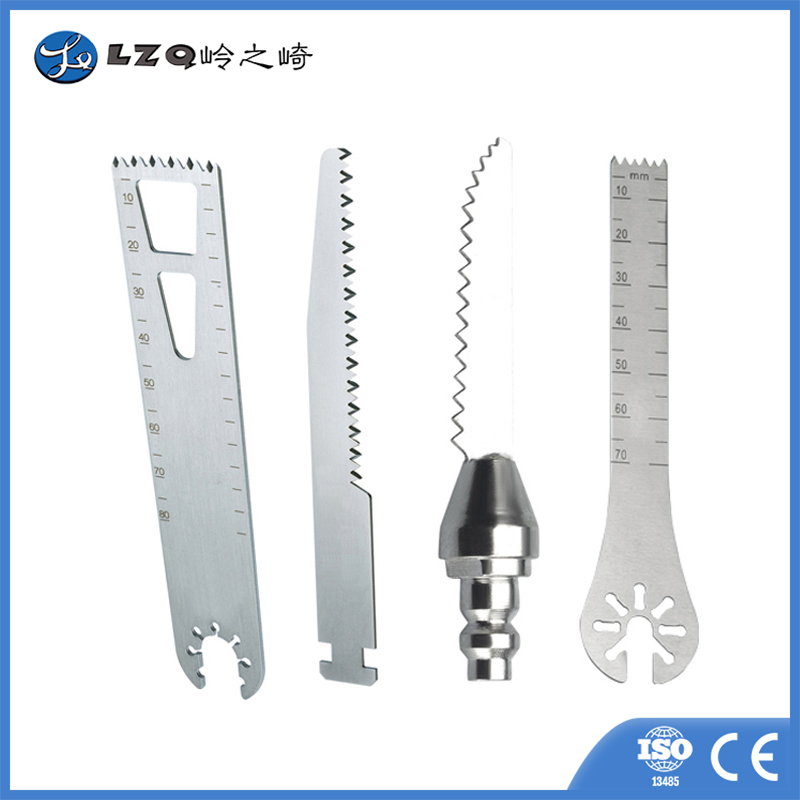

Trephine/orthopedic surgical instruments amputation saw

LZQ is an OEM factory for all kinds of bone saw blades, such as, Reciprocating Saw Blades, Sternum Saw Blades, Replacement Blades, oscillation Saw Blade, etc. We can also produce a whole kit of tools for customers’ surgical cases.

We use the material of stainless steel.

We are capable to produce any bone saw according to drawings or samples provided by customer with a favorable cost-performance.

LZQ is an OEM factory for all kinds of medical tools

We can produce different shapes of tooth, number of tooth, precision diameter and thickness tolerance.

According to drawings or samples, we can customize ceramic, tungsten steel, stainless steel, titanium alloy, titanium diamond, etc., high-precision combination profile fixture, brazing fixture, wear-resistant accessories, high-precision accessories (3DX technology) molding super Hard, super fine grinding

（Ultra-sharp edge&ultra-high wear-resistant&ultra-high rust&high precision）

Material classification:

1. Ultra-high rust-proof & wear-resistant stainless steel (AA) (HRC54°±2°Section) (regular stock)

2. Conventional standard rust-proof and wear-resistant stainless steel (A)(HRC52°±2°) series Ordinary antirust stainless steel (A) (HRC62°±2°)

3. wavy-edge( we can grind front. reverse side and staggered teeth)

Grinding grade for flute section

AAA: CNC mirror grinding for flute with any shape

A A: CNC finish grinding for flute with any shape

A : CNC common grinding for flute with any shape

Processing way of two flat sides:

1、After heat treatment to hardness HRC62°+2°hard and thick materials can be processed to complicated and step profile shape and size by finish grinding and electric spark EDM, but the cost is high

2、After heat treatment to hardness HRC62°+2°hard material can be processed to double flat sides with any thickness tolerance by finish grinding, but the cost is a litter high.

3、 Stardard thickness material can’t be throug thethe treatment and it is too thin

The cost is low.The hardness of material is decided by material factories

4、micro size can use high performance hiah tenacitv carbide CNC mirror surface grindingforming

Processing grade for shank

AAA:Sodick/+GF+WEDM-LS by 3-5 times

A A:Sodick/+GF+WEDM-LS1-2 times

A :process with carbide mould by high precision punching shear

B :process with common mould by precision punching shear

The cost of products includes: grinding grades of cutting edge+ processing grades of shank+ processing way of two flats=combine final products with different application, effect, grade and cost-performance

If meet the assembly space demand, saw tooth can be customized with different thickness, width, tooth shape, number of teeth, angle, sharpness.

We ca in make tools with any material, any shape,special kind special type,abnormal shapeand precision and tolerance by mirror surface grinding according to your drawings or samples

Characteristics

Application domain:    orthopedics

Material:   Ultra-high anti-rust high-hardness stainless steel,

            general rust-proof ultra-high wear-resistant stainless steel,

            ceramic

Type

Bone saws, Gums saws
