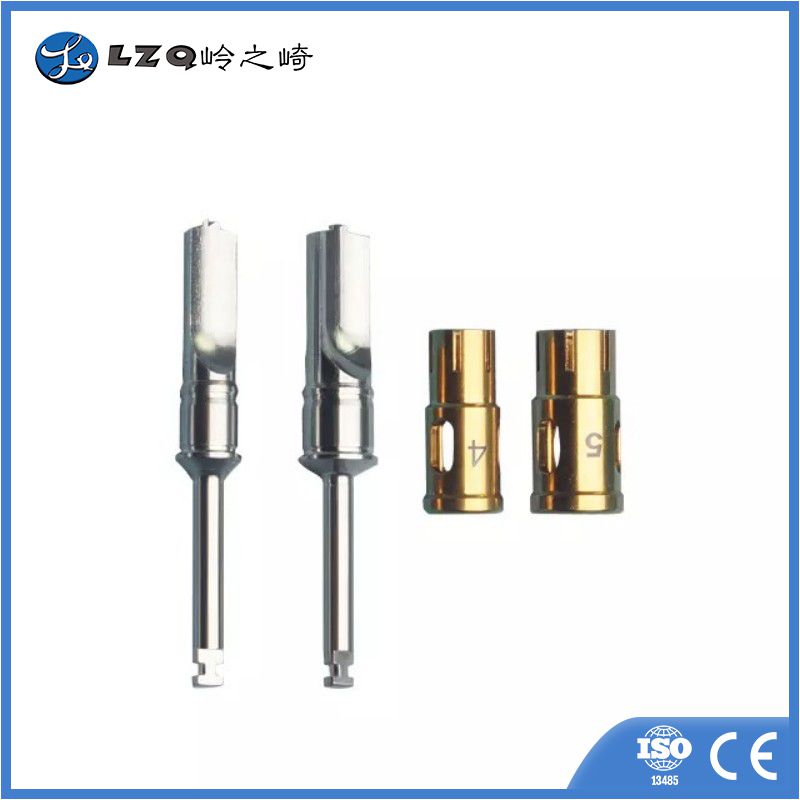

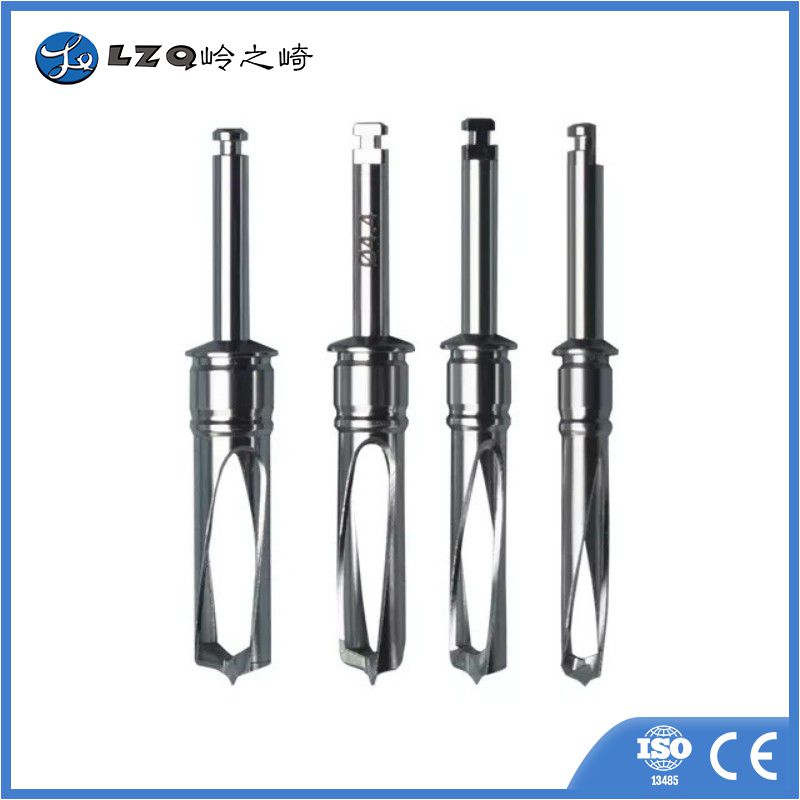

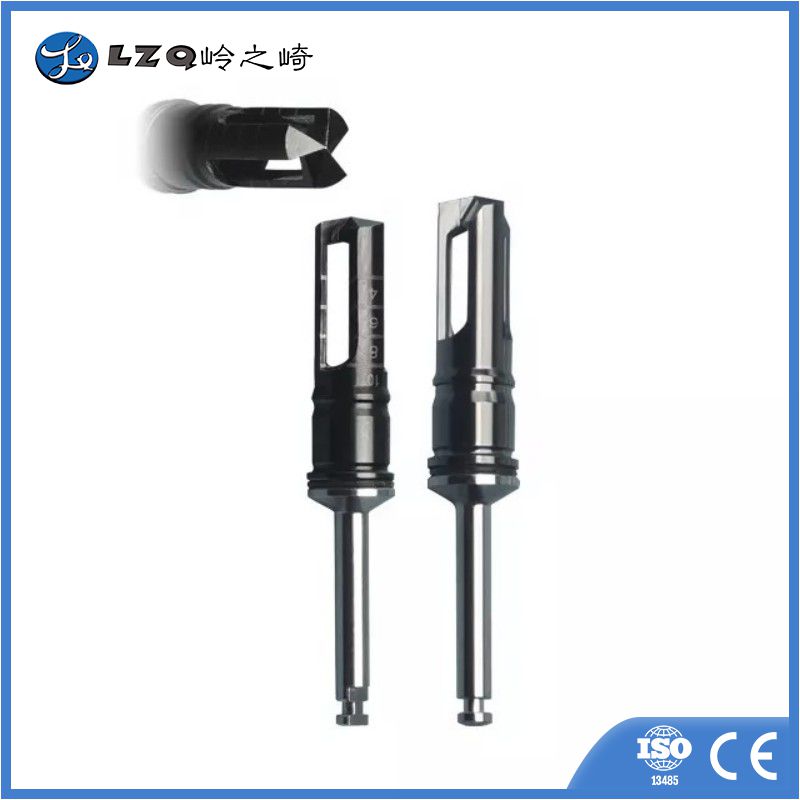

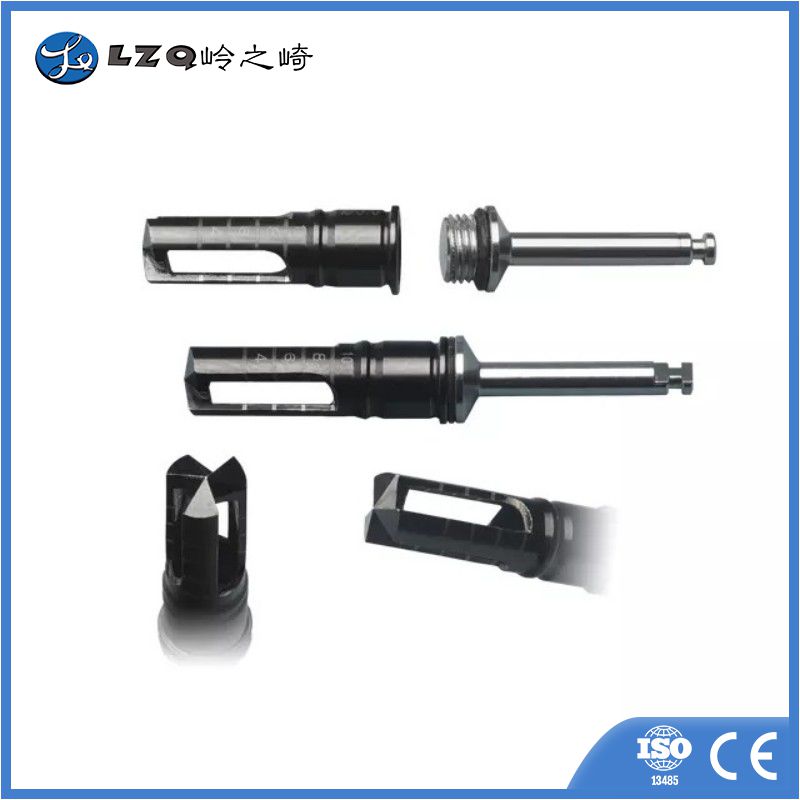

AutoBone Collector

20:1 handpiece, 500-800 speed, 25-30 Torque

LZQ is an OEM factory for all kinds of dental implant tools, such as Auto Bone Collector, SELF BONE COLLECTOR, Autogenous Bone Collector, Chip Marker Drill, Bone Collecting Drills, Auto Chip Maker, Bone grinding implant kit, Dental Implant Bone remove Drill, and bone chip maker, etc. We can also produce a whole kit for customers’ surgical cases.

We use the material of stainless steel.

We are capable to produce any bone collectors according to drawings or samples provided by customer with a favorable cost-performance.

Prepare hole and get bone powder at one time. Through special cutting edge and rotation mode, SELF BONE COLLECTOR can achieve autologous bone grafting and self-grinding into powder.

Features:
Easy and quick autogenous bone transplantation

Ideal bone collection shape design

Take a lot of bones to avoid scattering

Function:

Collect autogenous bone to the greatest extent when preparing the hole, the drill body can be separated between the automatic stop ring, and it is convenient and quick to take out the bone debris

4.5mm bone taking space can ensure the safe collection of autologous bone while minimizing the damage to the bone donor area

The correct using method:

3.1 round bur break bone cortex

Adjust rotation speed to 80-100/min, and don't use water to wash

The milled bone chip can be used directly after being taken out

Recommended speed: 400-800rpm

Application domain: for dental implantology

Material:

(Ultra-high rust-proof stainless steel AA) (hardened HRC54 ° ± 2 °  Section)

Ultra-high anti-rust & high wear-resistant , high hardness, high impact, high toughness stainless steel, with excellent anti-rust capability, corrosion resistance, wear resistance (high hardness) performance and ideal impact resistance.. Its excellent corrosion resistance is comparable to TYPE 304 Stainless steel; and its rust resistance is closer to alloy for surgical implant. Unmarked, with 5% Neutral salt spray test (ASTM B117), it doesn't rust after 1000 hours. Wide range of applications, quite good and stable quality, which can be used to produce extremely complex, high-precision shank shapes and profile ultra-sharp edge structures.

Applied for high-end medical standard:   AMS 5936   .  MMPDS-01  .  ASTM  A693             ASTM  A564   .  ASTM  F899-12

The Vitro (cytotoxicity) test verifies that the material does not have any potential cytotoxicity and therefore can safely contact human tissue, body fluids or blood, and meets all relevant allergy and skin irritation test standards.
