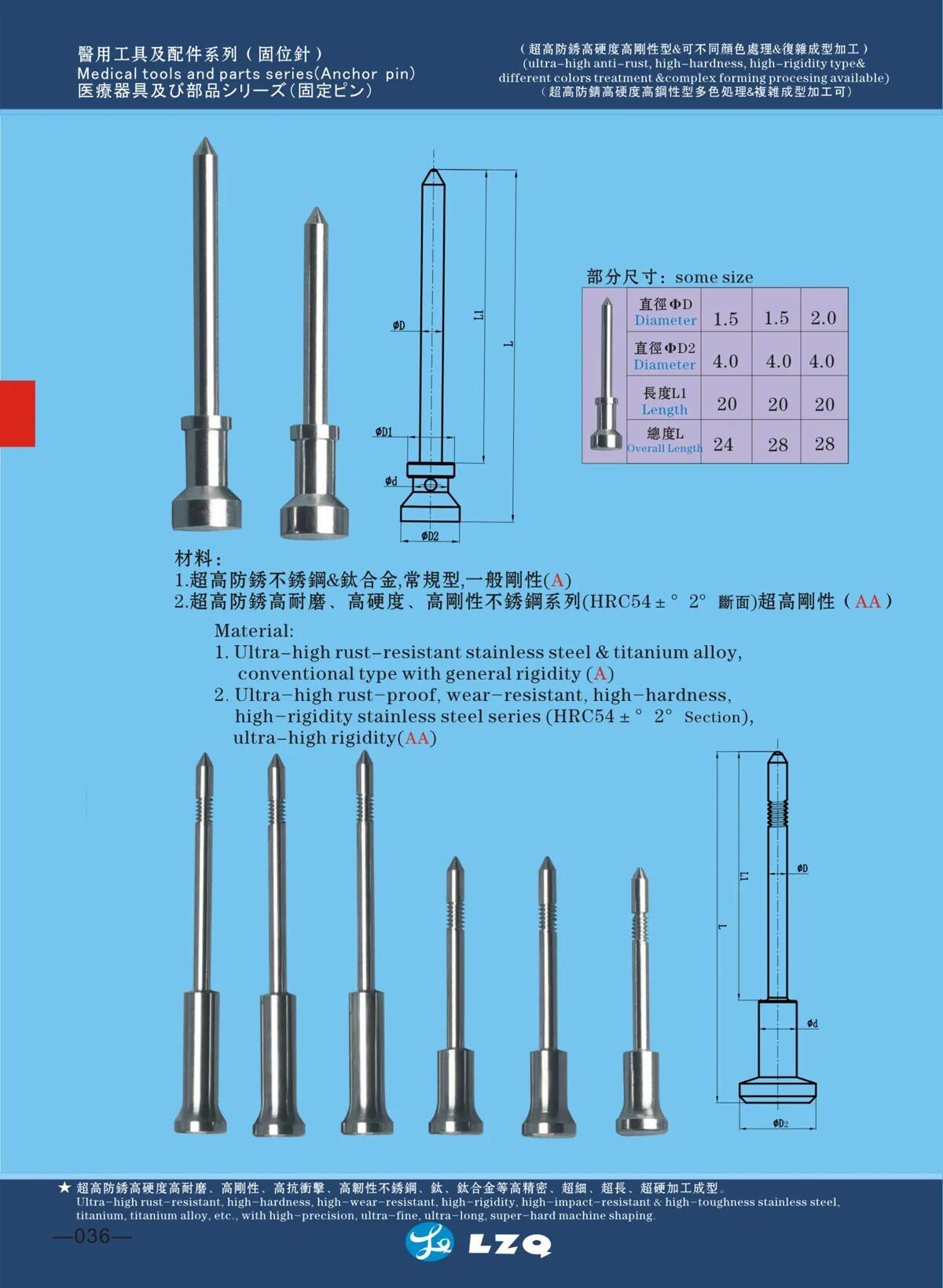

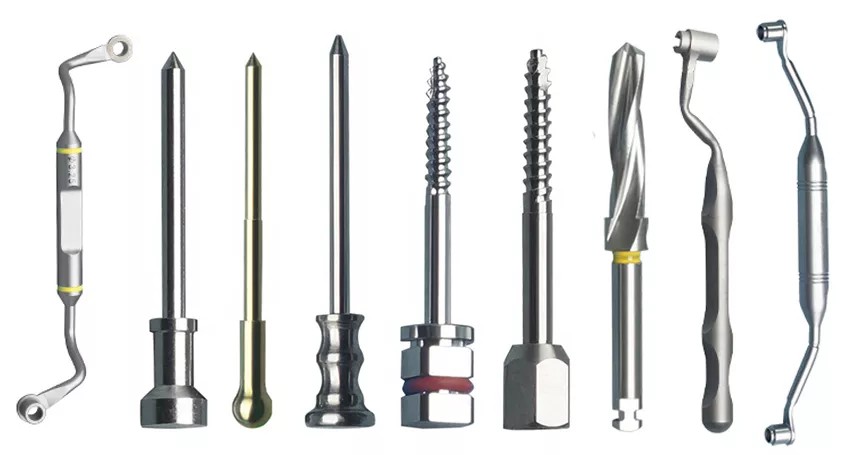

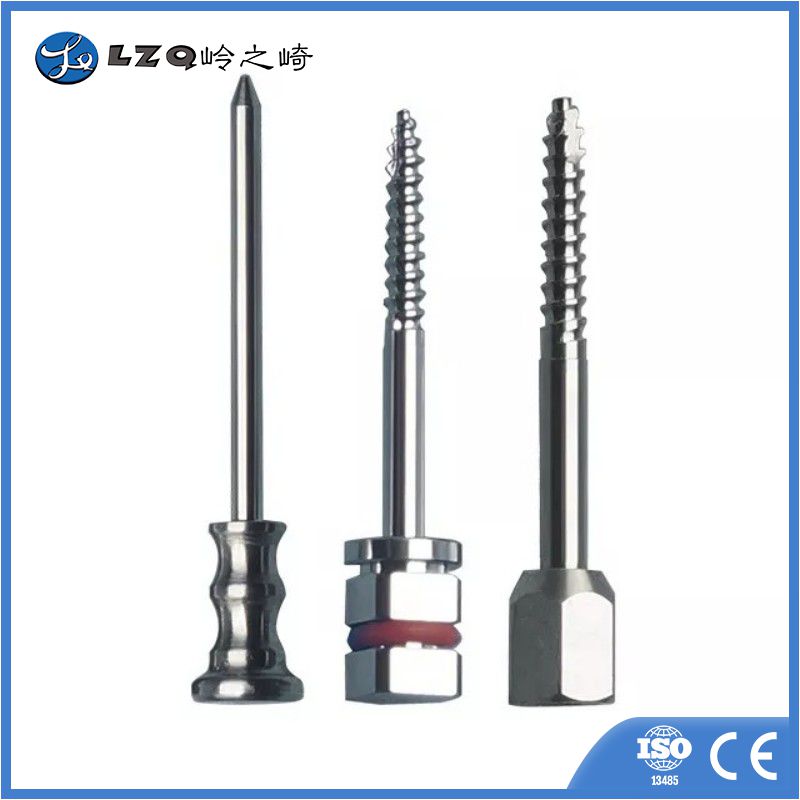

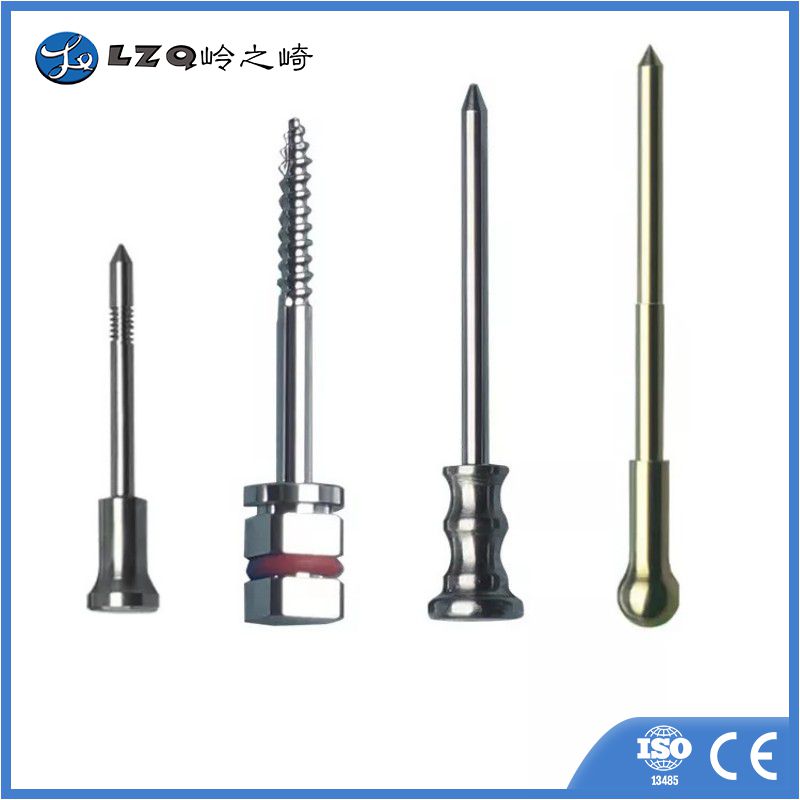

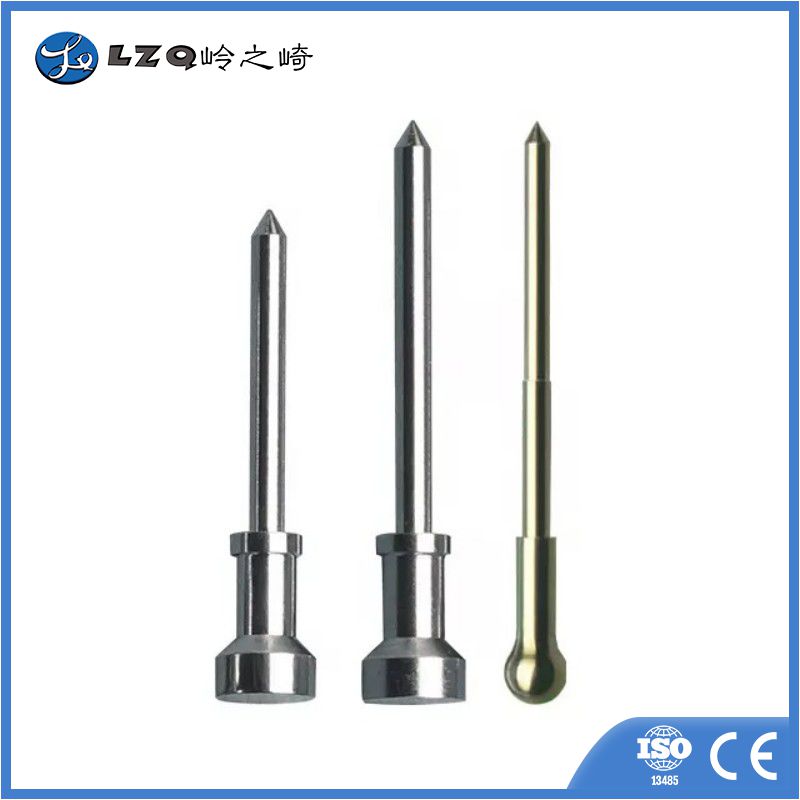

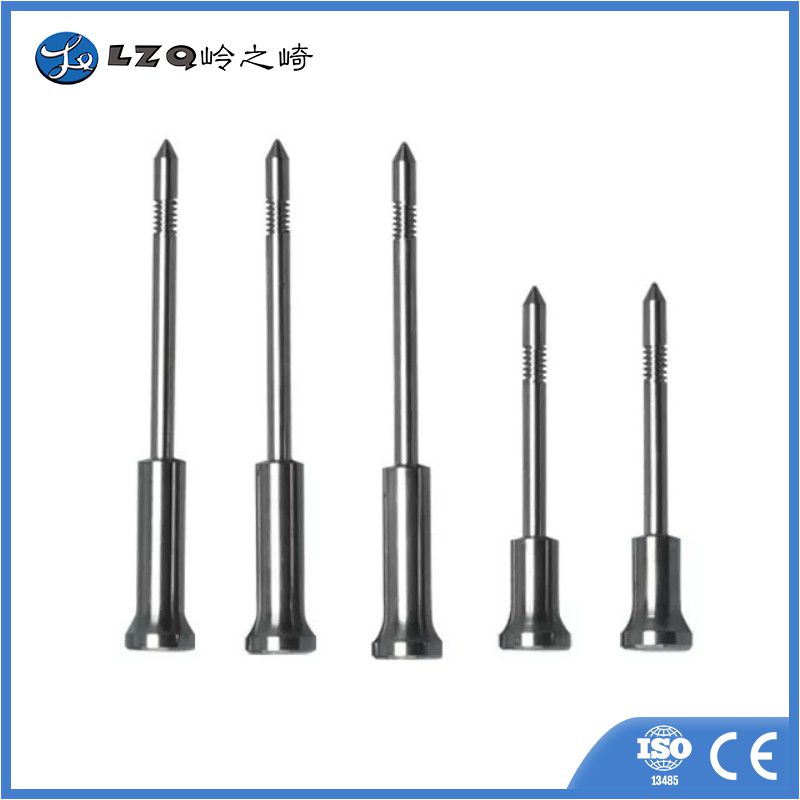

Fixation Pin

Corresponding and matching drills and tools of different types, forms, shapes, structures can be high precisely ground to mold according to different brands and different types of implants forms, shapes, structures, etc.

Process finish grade:

1. Ultra High Precision type (AAA) (Tolerance accuracy up to ±0.0015mm (1.5um)  need to be mass customized)

2. High Precision (AA) (Tolerance accuracy up to ±0.005 (5um)) (Conventional Machining)

3. General precision machining (A) (Tolerance accuracy up to ±0.010 mm (10 um))( Conventional Machining)

LZQ is an OEM factory for all kinds of dental implant tools, such as Abutment/Transfer P25, Parallel Pin P37, Wrench P53, Chip Collection Drill P098, Bone Fetcher P16， ect.

We can produce a whole kit of tools for customers’ surgical cases.

Medical tools and parts series(Abutment/Transfer/Analog/Healing cap/screw)

(Ultra-high precision type & different material and color series)

Temporary Abutment Considerations

Temporary abutments should be placed with finger pressure only, especially the 2.5mm posts.

Temporary abutments are made of surgical grade titanium alloy Ti6Al4V.

The hemispherical portion of a temporary abutment matches the profile of the corresponding non-shouldered abutment with the same diameter.

Medical tools and parts series(Abutment/Transfer/Analog/Healing cap/screw)

(Ultra-high precision type & different material and color series)

A:Process finish grade:

1. Ultra High Precision type (AAA) (Tolerance accuracy up to ±0.0015mm (1.5um)  need to be mass customized)

2. High Precision (AA) (Tolerance accuracy up to ±0.005 (5um)) (Conventional Machining)

3. General precision machining (A) (Tolerance accuracy up to ±0.010 mm (10 um))( Conventional Machining)

B: Material Classification:

1、Titanium and Titanium alloy series (can be processed with nearly 20 different colors)(A grade material generally stock, AA grade material need to be mass customized)

2、Ultra high rust-proof and high wear-resistant stainless steel series (AA) (HRC54°±2°Section) (generally stock)

3、Ultra-high rust-resistant austenitic stainless steel (generally stock)

4、High wear-resistant PEEK, PPSU and other series of different colors can be customized (generally stock)

Characteristics

Application domain:  Guide Implant Tools

Material:   Titanium Alloy

Titanium and Titanium alloy series

(A grade material generally stock, AA grade material need to be mass customized)

(ultra-high precision type & different material and color series)
