Orthopedic Bone Drill Bits Manufacturer – AO, Cannulated & Custom Surgical Drills

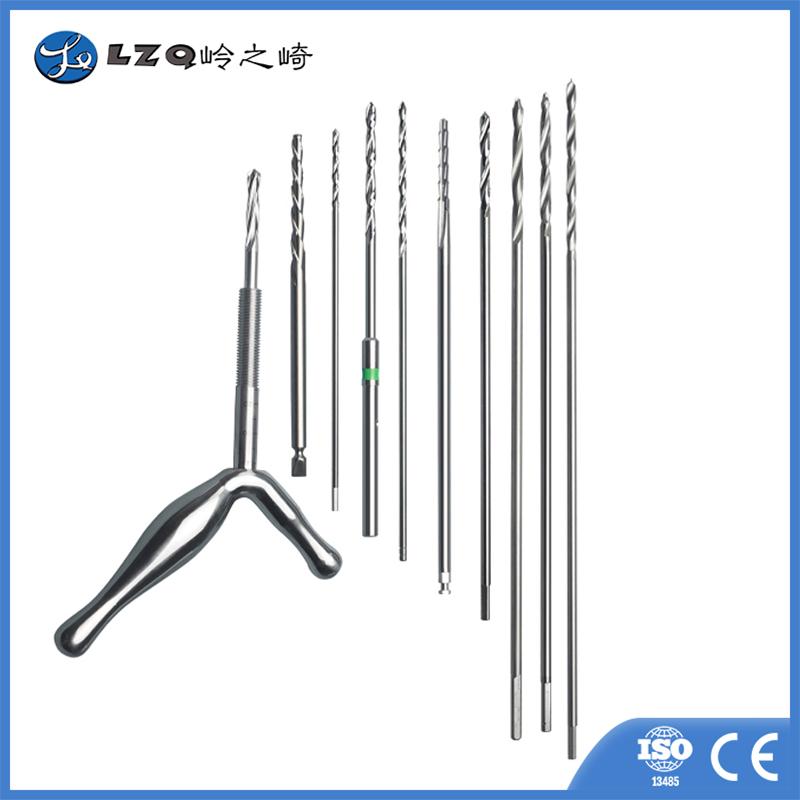

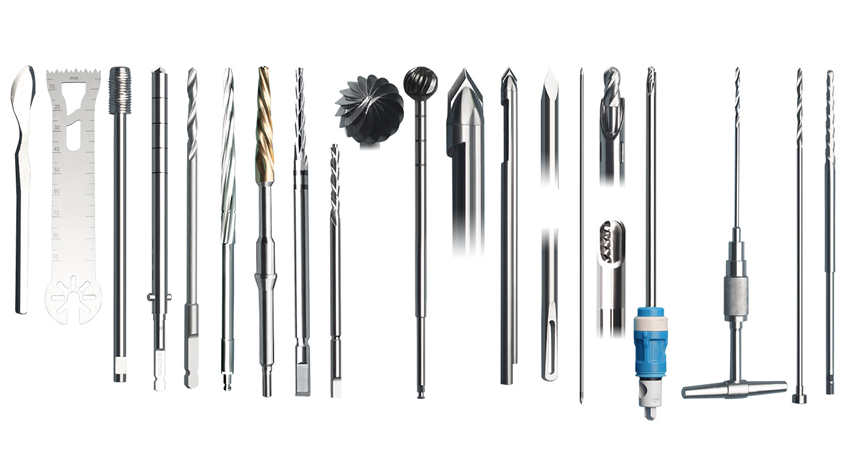

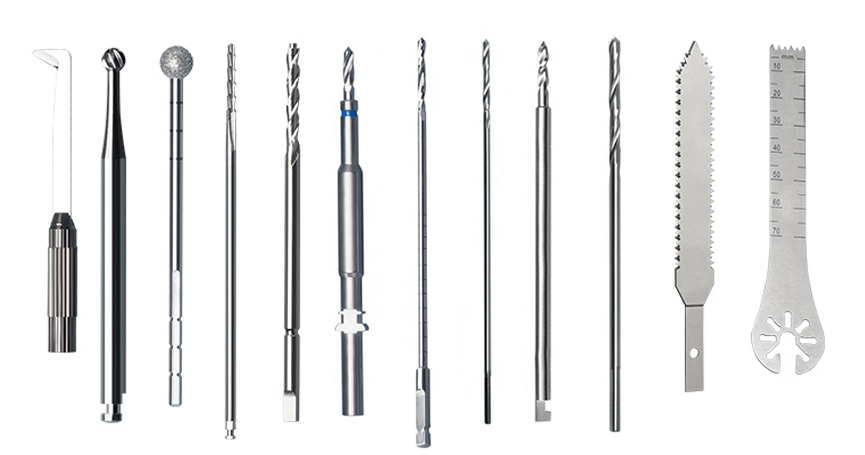

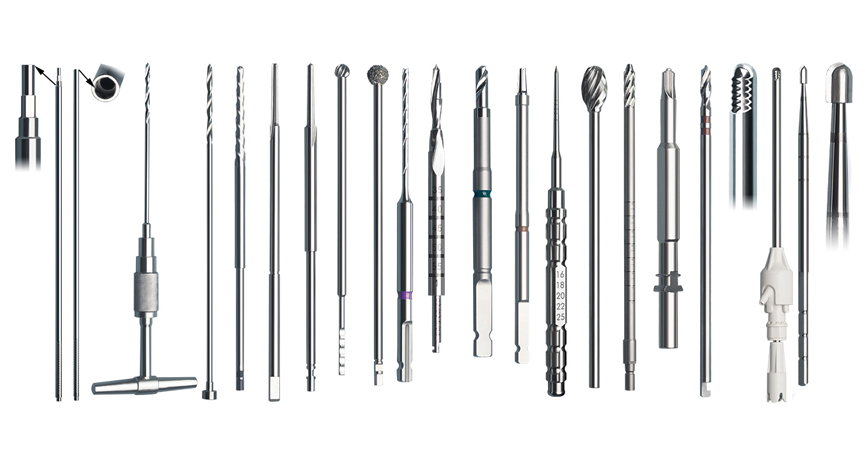

LZQMED is an orthopedic bone drill bits manufacturer supplying precision surgical drilling tools for orthopedic implant systems, trauma fixation instruments, medical device manufacturers and OEM instrument projects. The range covers solid twist drills, cannulated drills, AO quick coupling drills, round shank drills, wire and pin drills, countersink drills and specialized orthopedic drills.

Drills are made in different diameters, overall and working lengths, cannulated bore sizes, cutting geometries and shank configurations, in stainless steel with AO-compatible, round-shank and custom quick coupling connections. We build to your drawings or reference samples, either as individual drill bits or as a coordinated drill series for your own implant system. For saw blades and the wider range, see our bone drill and bone saw blade category and bone saw blades.

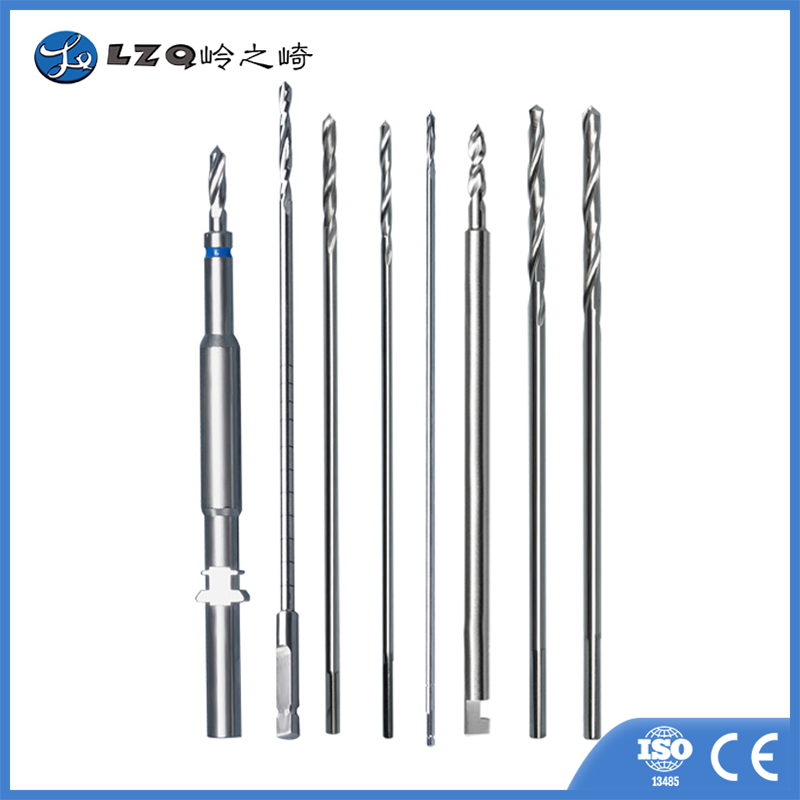

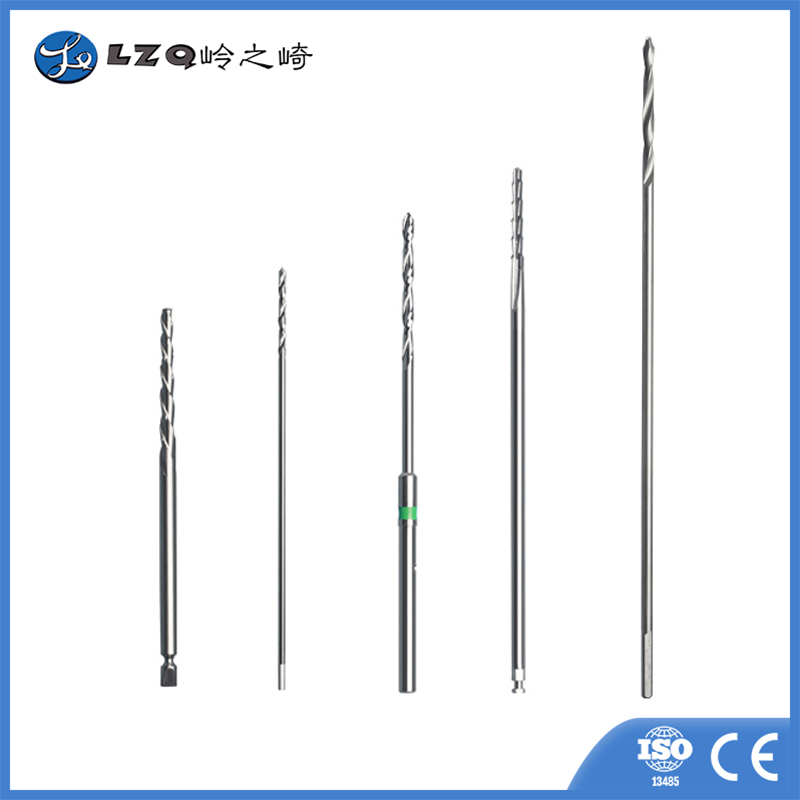

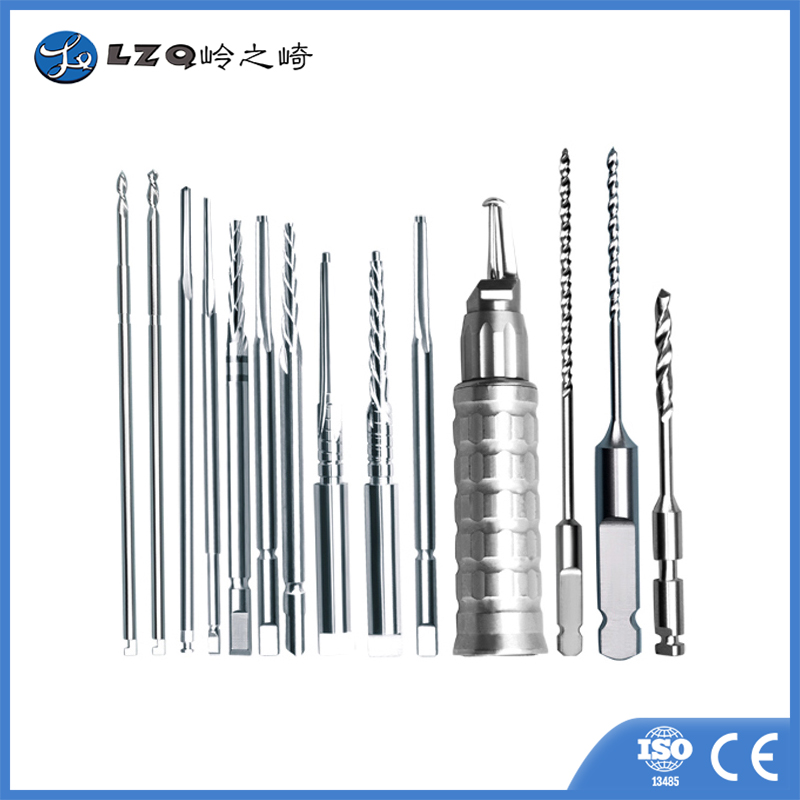

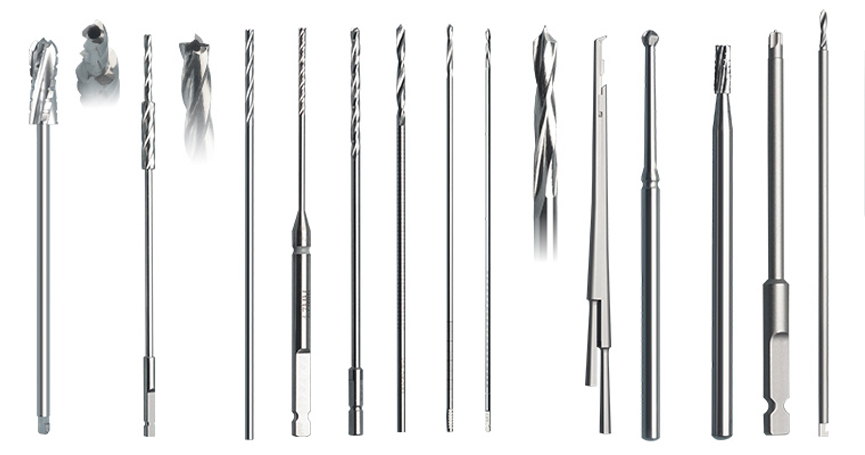

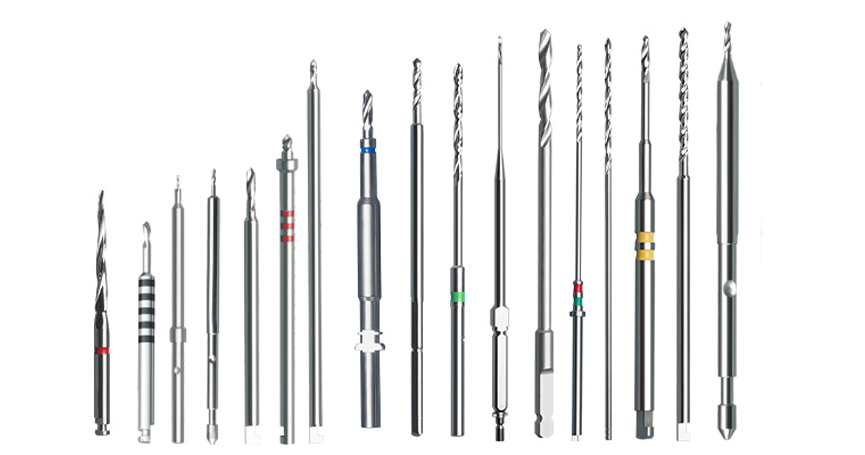

Orthopedic Bone Drill Bit Product Range

How to Choose a Drill Type

• Conventional bone drilling: solid twist drill.

• Implant fixation instruments: solid AO or round shank drill.

• Guidewire-assisted drilling: cannulated drill.

• AO-compatible handpiece: AO quick coupling drill.

• Replacing an existing drill: matching OEM drill, from the original sample or drawing.

• Specialized bone preparation: countersink, flexible or specialized drill.

• New power tool or implant instrument set: custom drill or drill series.

Orthopedic Drill Bit Technical Specifications

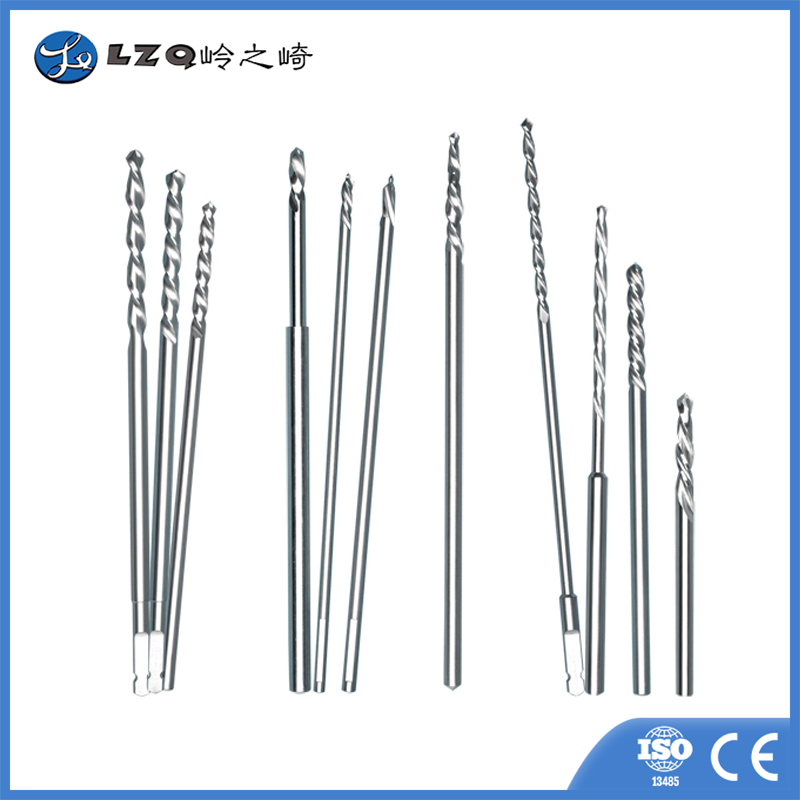

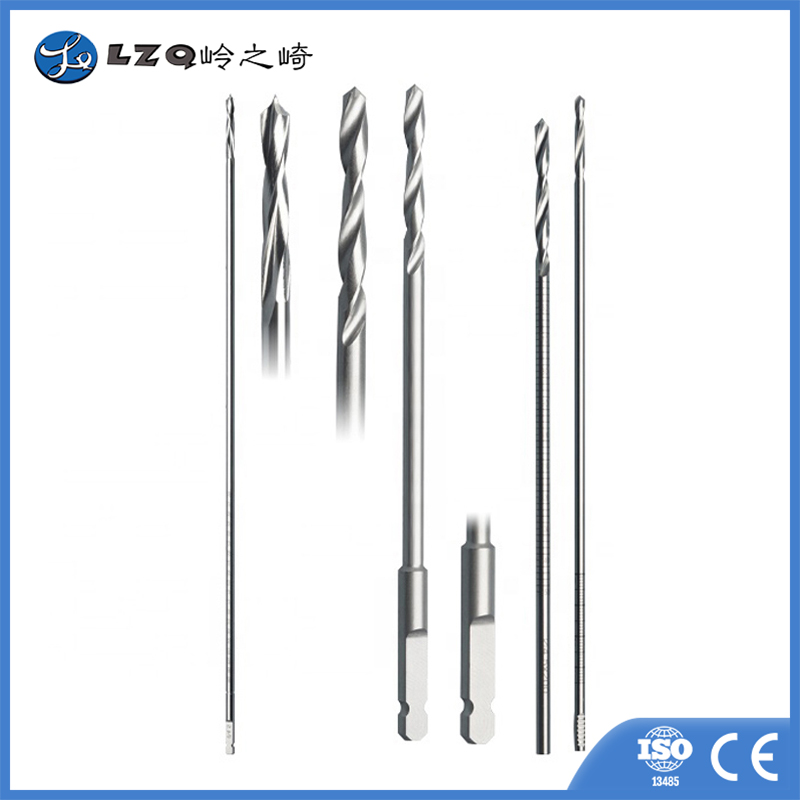

Solid Orthopedic Drill Bit Sizes

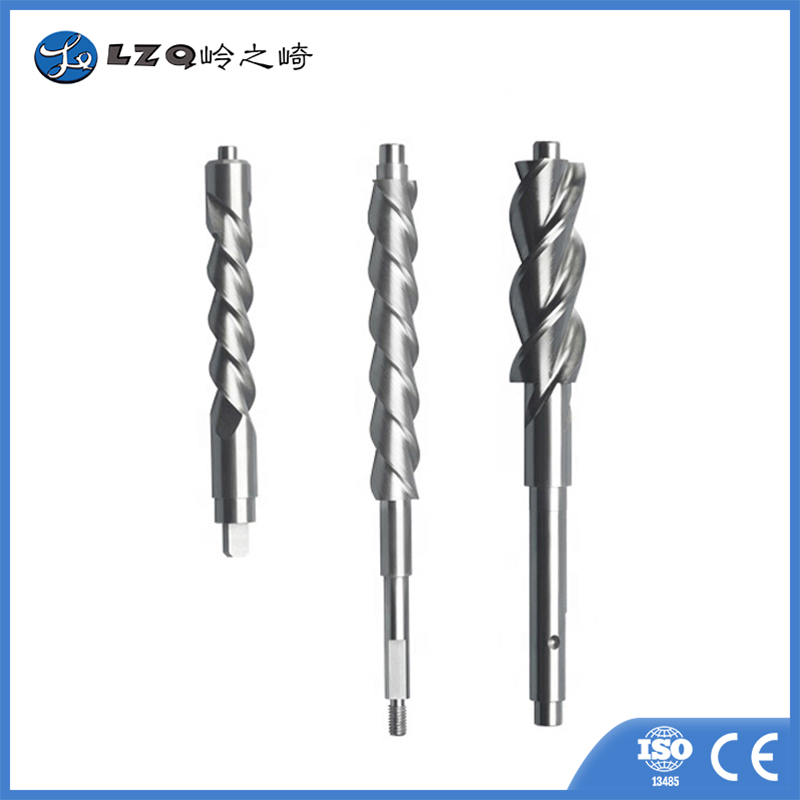

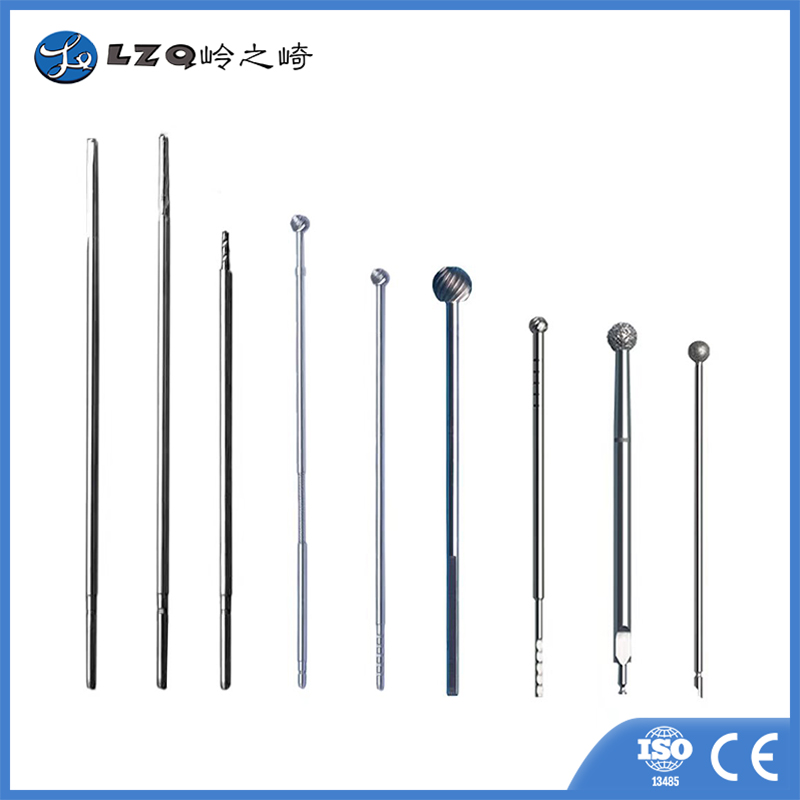

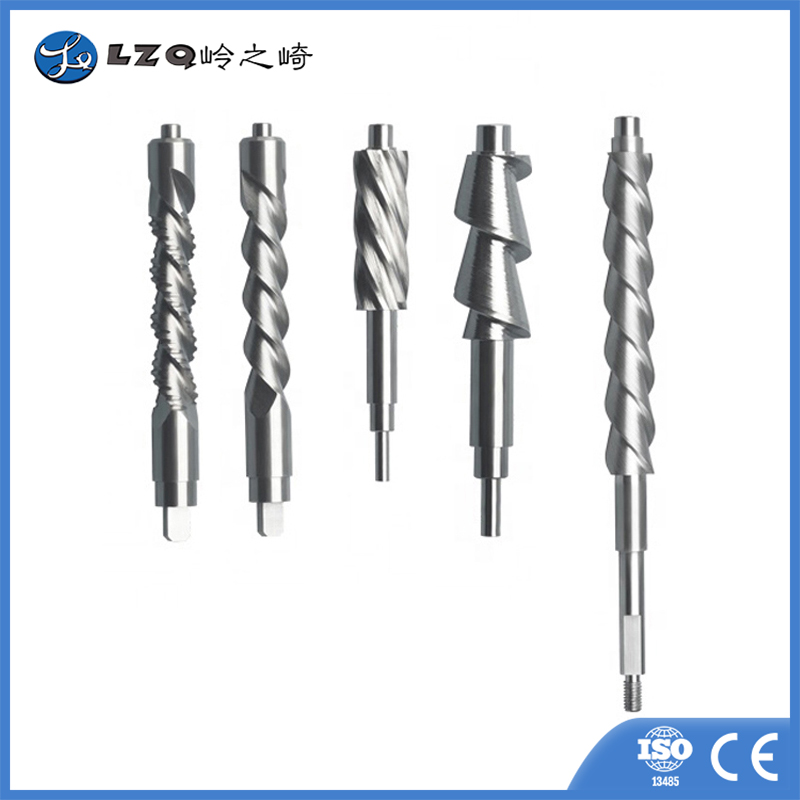

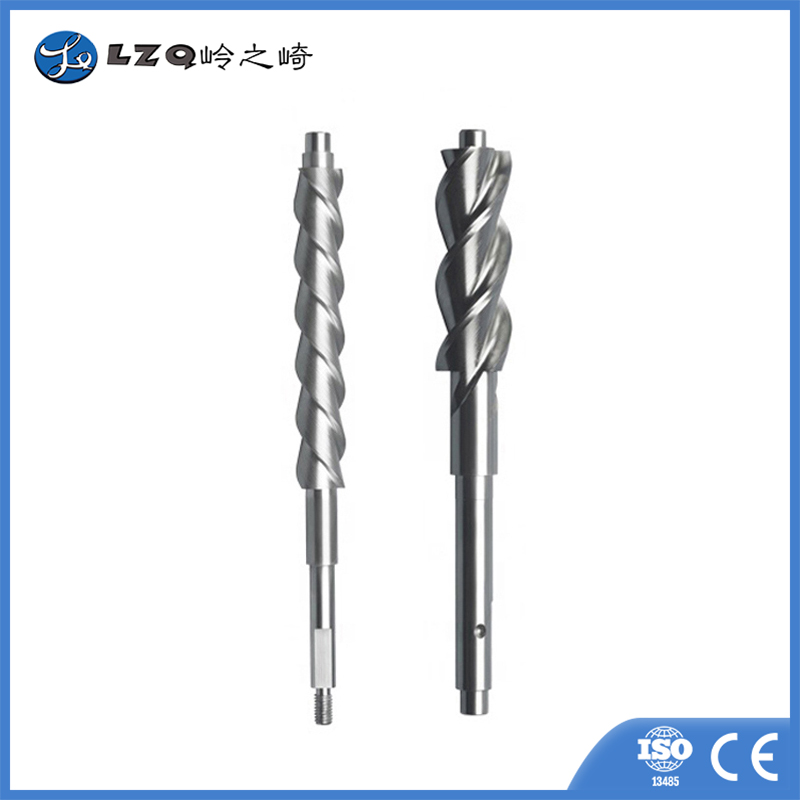

Cannulated Bone Drill Bit Specifications

Other cannulated options include overall lengths of 175, 200, 250 and 300 mm, and outer diameters up to Ø6.0 mm for specialized configurations.

AO Drill Bits and Quick Coupling Options

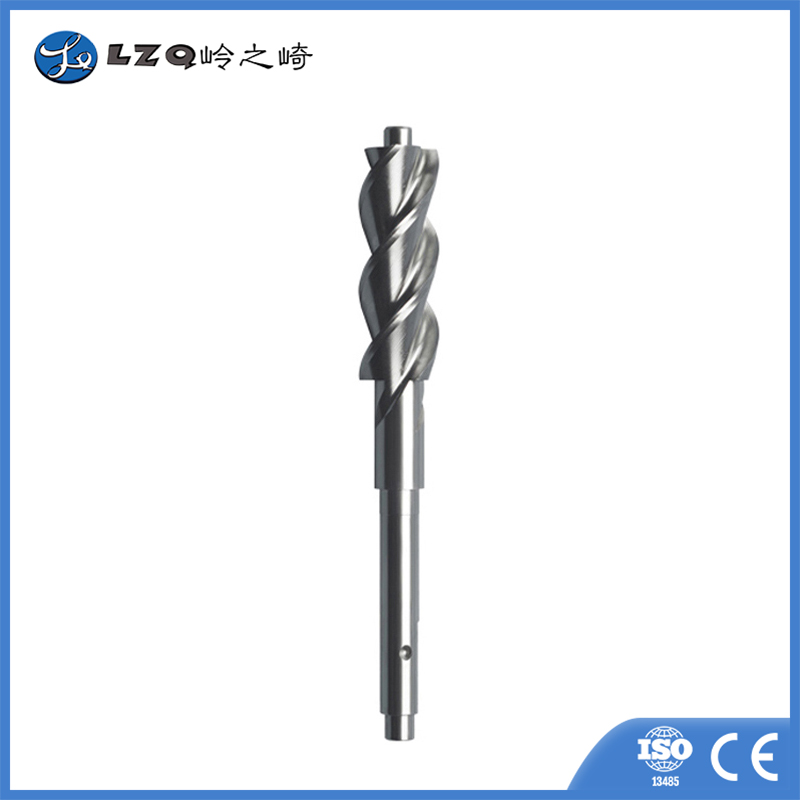

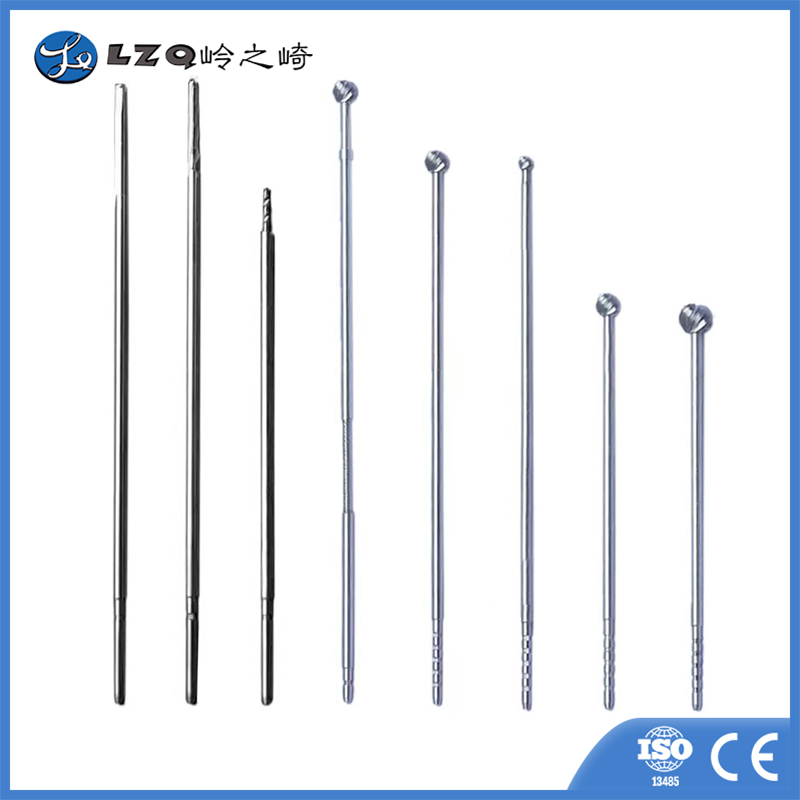

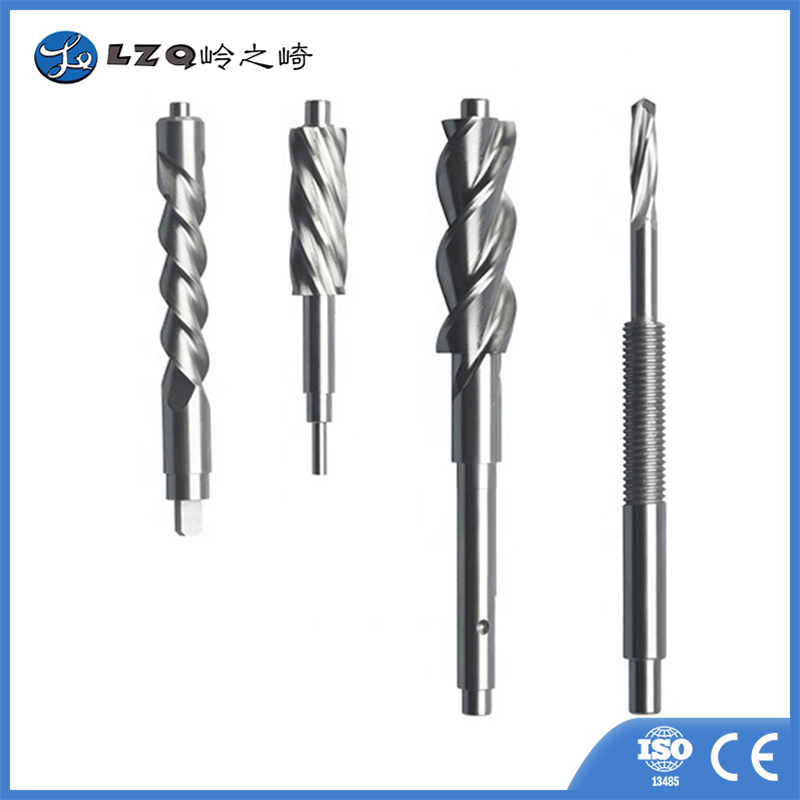

LZQMED supplies AO drill bit models 8202/8203 and quick coupling drill bit SN017, with cannulated quick coupling configurations such as SN018.

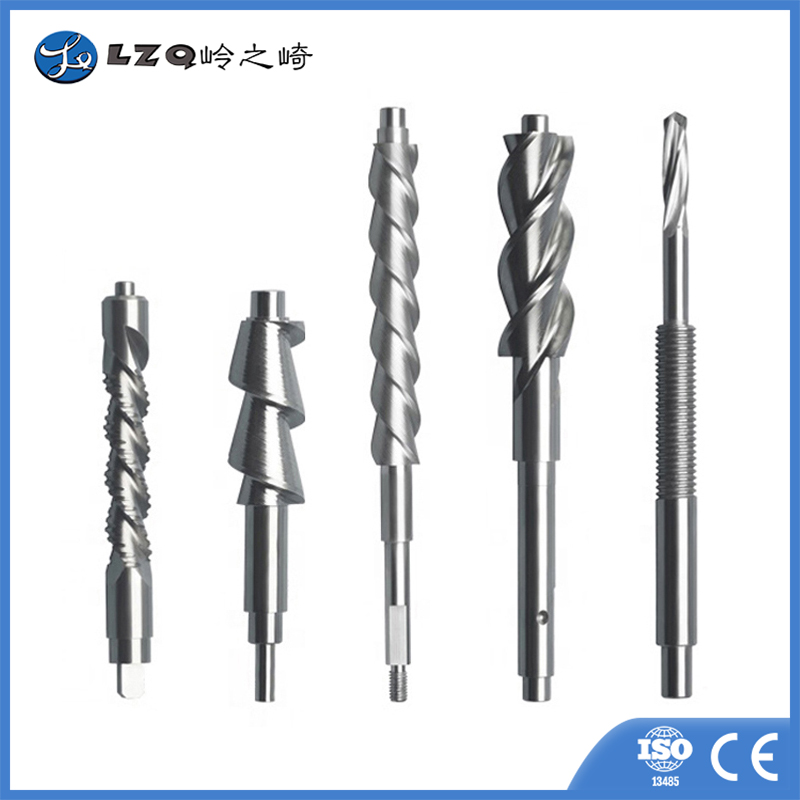

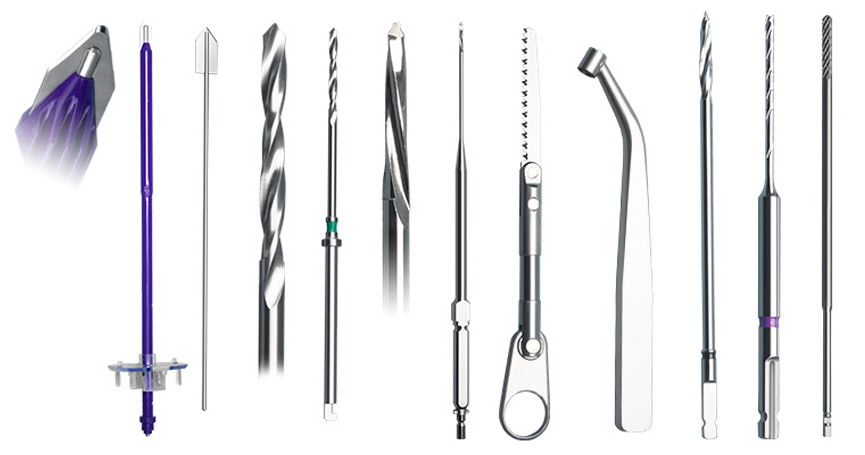

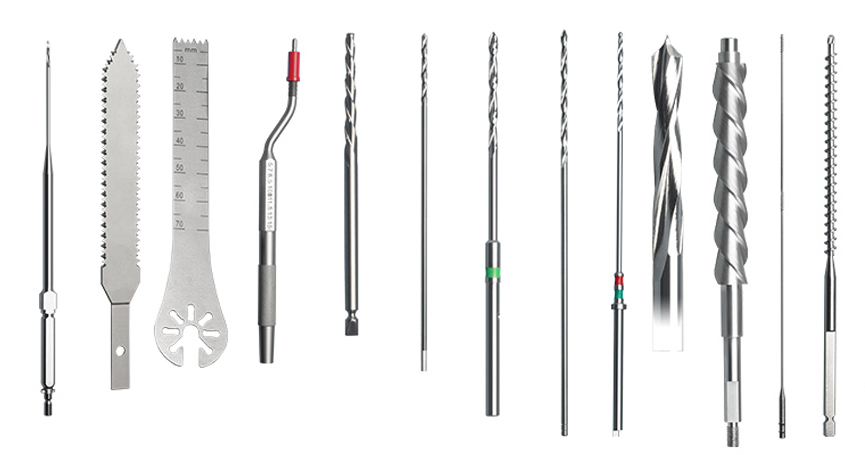

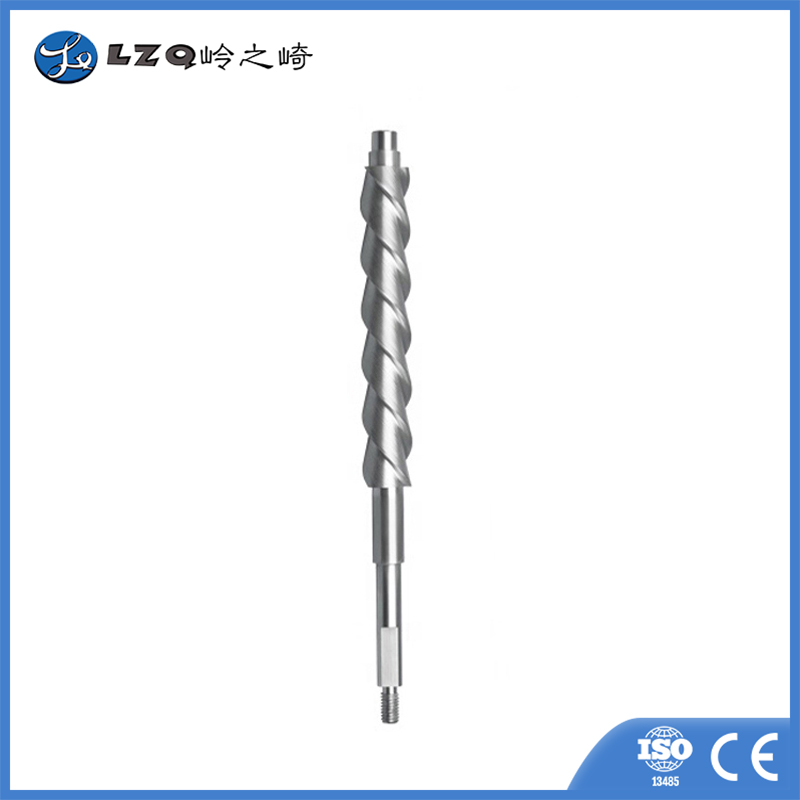

Specialized Orthopedic Drills

These have application-specific structures and are not interchangeable with conventional twist drills.

Materials, Cutting Geometry and Surface Options

• Flutes and tips: series-specific twist flute and cutting tip as standard; 2-flute, 3-flute, self-centering and alternative tips as options; custom flute and tip geometry on request.

• Surface options: machined finish, polishing, passivation, laser marking (size, part number) and customer-specified treatments, where applicable to the design.

Bone Drill Bits by Application

Custom Orthopedic Bone Drill Bit Manufacturing

LZQMED makes custom drills for medical device manufacturers, implant brands, instrument suppliers and OEM projects. Submit 2D drawings, 3D models, physical samples or approved specifications. For a full instrument set, we build each drill to a coordinated specification list.

Quality Requirements and Compliance Documentation

• ISO 13485 / ISO 9001

• CE / EU MDR and FDA-related requirements

• Material and surface documentation

• Dimensional, cannulation and handpiece compatibility

• Sterilization and identification

FAQ

Can you manufacture drill bits to our drawings?

Yes. We build to drawings, samples and technical specifications, including diameter, overall and working length, cutting geometry, cannulation, shank, material and finish. Send the full specification and estimated quantity.

What diameters can you make?

Common configurations are Ø1.5, 2.0, 2.5 and 3.2 mm, with Ø1.1, 1.8, 2.4, 2.7, 4.0, 4.5, 5.0 and 6.0 mm for applicable designs. Custom diameters follow approved drawings, and available diameter and length combinations depend on the drill structure and connection.

Can you make AO orthopedic drill bits?

Yes. AO drill bit models 8202/8203 and AO-style quick coupling configurations are available. Custom AO-compatible shanks are built from your drawing or approved sample.

Can you make cannulated drills with custom OD and ID?

Yes. Send the guidewire diameter and clearance so the correct inner bore can be set, along with length, cutting geometry and shank.

Is a 2.0 mm cannulated drill available with different inner diameters?

Yes. 1.1 mm and 1.3 mm bore options exist for applicable designs. They are separate configurations and must be matched to the guidewire and handpiece.

Do you make cannulated AO quick coupling drills?

Yes, including configurations related to SN018. Specify drill OD, ID, length, AO-style connection dimensions and guidewire requirements.

Can you make round shank drills?

Yes, for applicable solid and cannulated configurations. Specify shank diameter, engagement length, drill dimensions and the holding system.

Request a Quote for Custom Orthopedic Bone Drill Bits

LZQMED manufactures solid orthopedic twist drills, AO drill bits, cannulated bone drills, quick coupling drills, round shank drills and specialized orthopedic drilling instruments for OEM projects. Request a quote.
